7KM2200-2EA00-1JB1

Condition: New product

More info

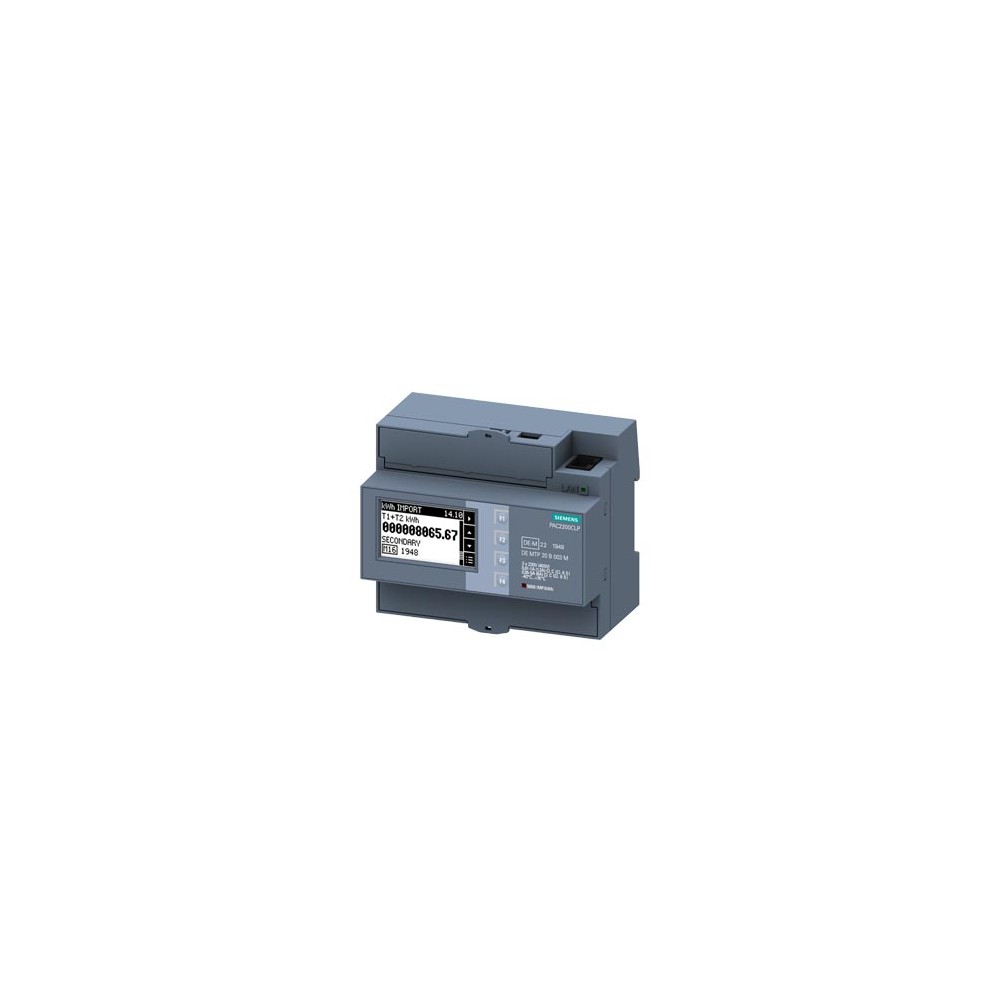

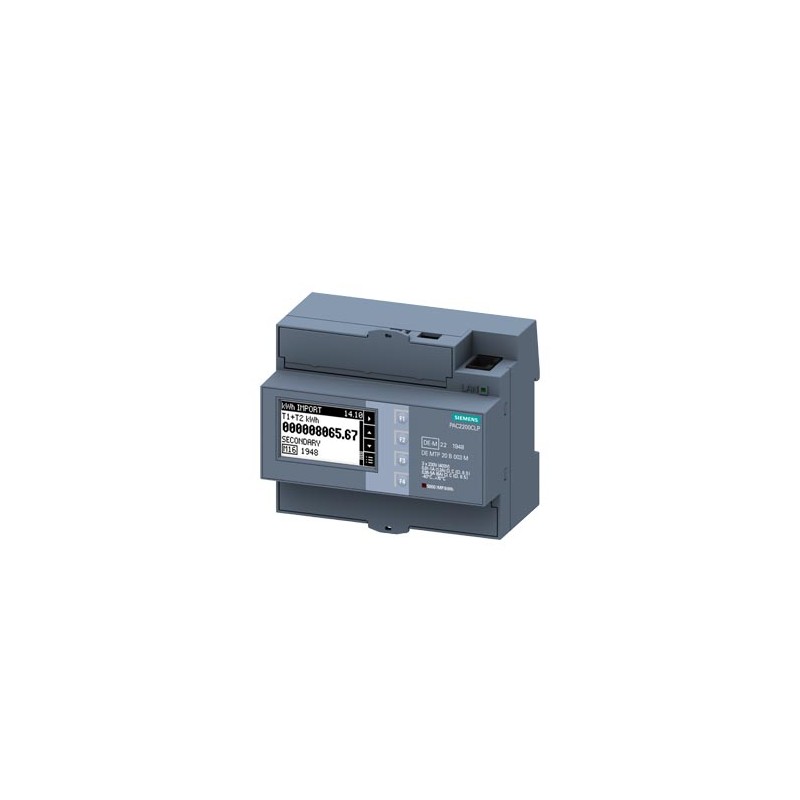

Siemens 7KM2200-2EA00-1JB1

SENTRON 7KM measuring device PAC2200 CLP, L-L: 400 V, L-N: 230 V, x/1 A & x/5 A DIN rail instrument, 6 MW, 3-phase, LAN interface, Modbus TCP, LC display, MID approval, screw terminal, with internal power supply, apparent / active / reactive energy, certified load profile memory measurement and calibration regulation-compliant acc. to PTB-A 50.7

Model
product brand name		SENTRON
product designation		Energy counter
product quality calibrated		Yes
type of measured value detection load profile		Yes
type of signal		S0
design of the energy counter		Solid-state
design of the pulse output		Electrical
General technical data
type of the power supply network		three-wire/four-wire
Supply voltage
operating voltage
● between L and L minimum		3 V
● between L and L maximum		480 V
● between N and L minimum		3 V
● between N and L maximum		276 V
Protection class
protection class IP		IP40
