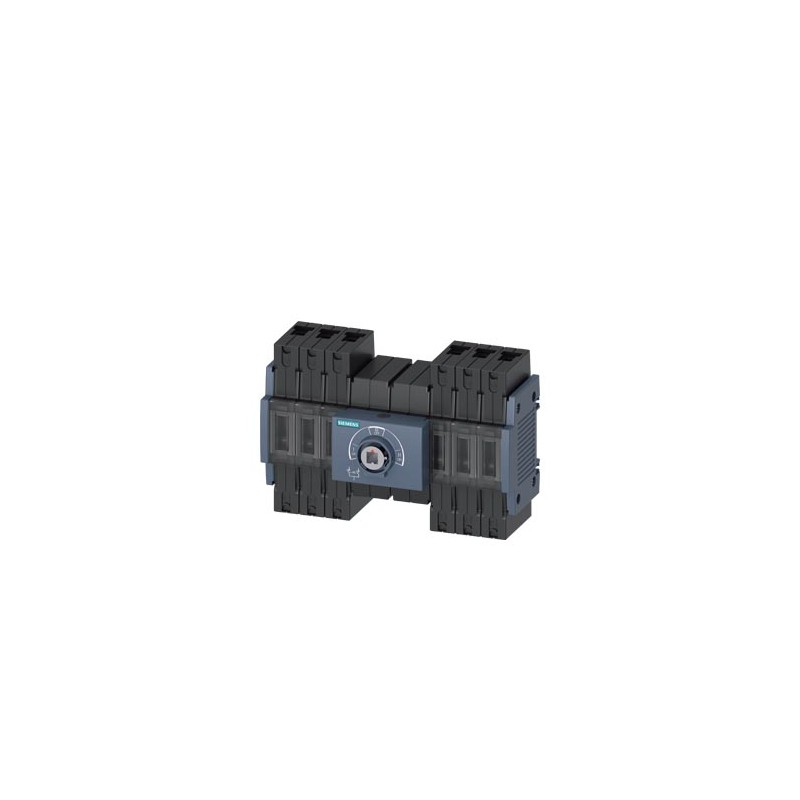

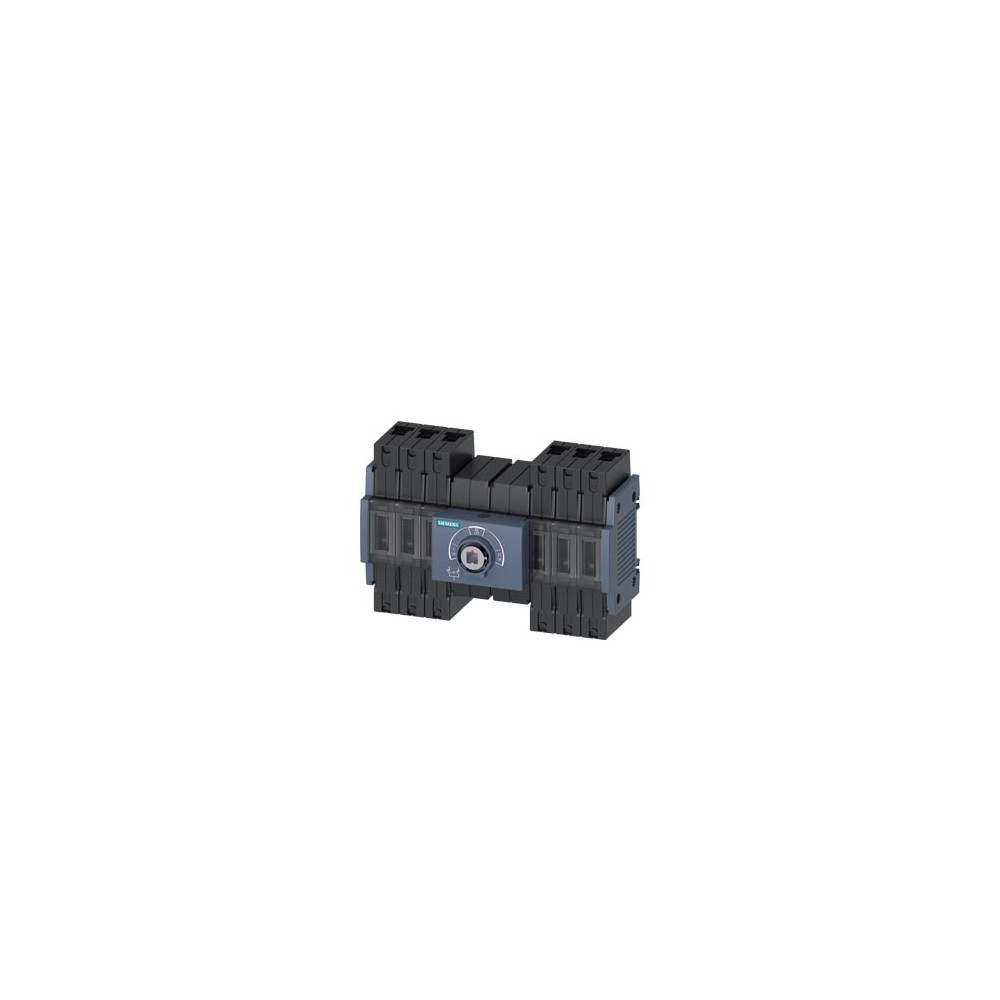

Siemens 3KC0316-2ME00-0AA0

SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 1, 3-pole, Iu: 16 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 16 A, Ie at AC-23 A at 690 V: 16 A, screw and standard mounting rail installation 35 mm, Front operating mechanism, centered, without handle, box terminal

Model
product brand name SENTRON
product designation transfer switching equipment
design of the product manually operated
display version for switch position indicator door-coupling rotary operating mechanism I ON- O OFF- II ON
design of the actuating element Without handle
design of handle without
type of the driving mechanism Front operating mechanism
type of the driving mechanism motor drive No
General technical data
number of poles 3
type of device fixed mounting
size of switch disconnector 1
mechanical service life (operating cycles) for function sequence O-I-O typical 15 000
I2t value
● with closed switch for combination switch + fuse at 500 V maximum 13 300 A²·s
● with closed switch at 690 V for combination switch + gG fuse maximum 13 700 A²·s
● of the fuse at 415 V maximum permissible 26 505 A²·s
● of the fuse at 500 V maximum permissible 26 505 A²·s
● of the gG fuse at 690 V maximum permissible 24 005 A²·s
● with closed switch for combination switch + fuse at 415 V maximum 13 300 A²·s
position of the switch operating mechanism in center
overvoltage category III
degree of pollution 3
insulation voltage
● rated value 1 000 V
Protection class
protection class IP IP20
protection class IP
● with closed switch with cover or cable lug cover IP20
● on the front IP20
