3NJ4101-3BF01
New

3NJ4101-3BF01

New product

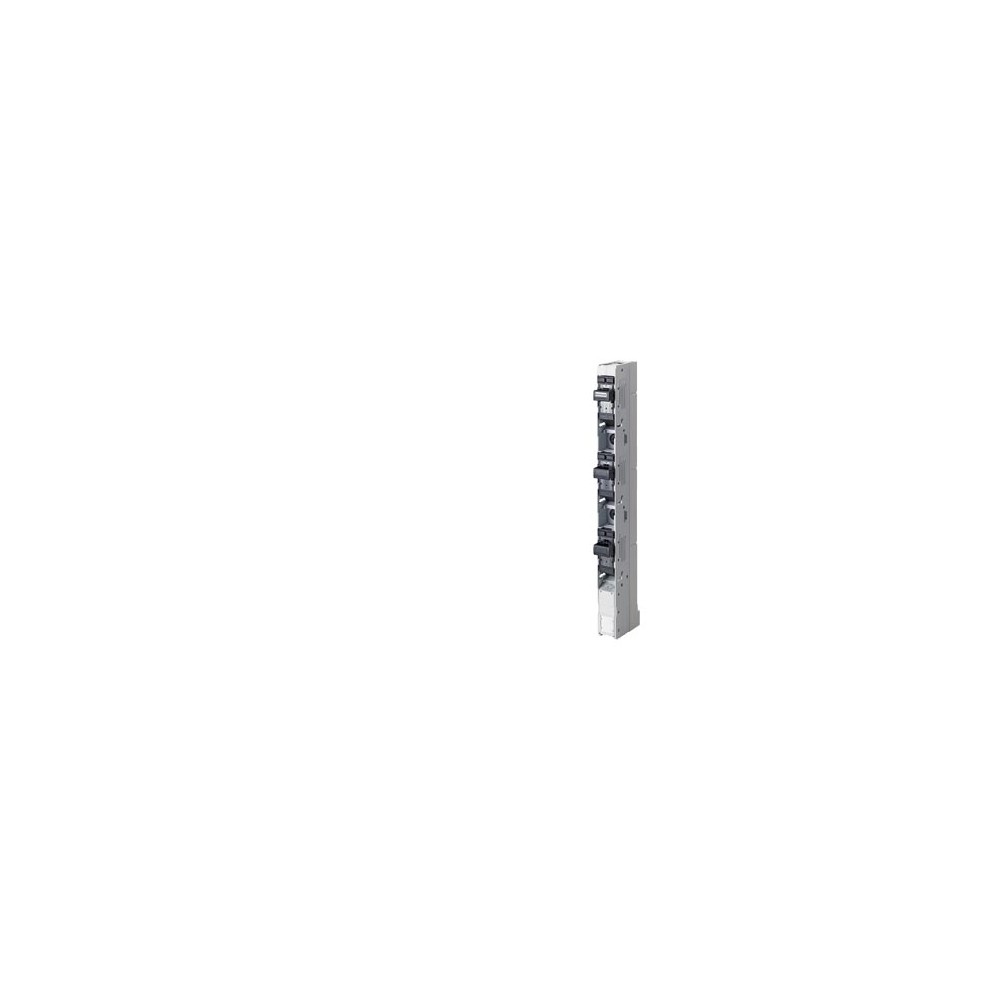

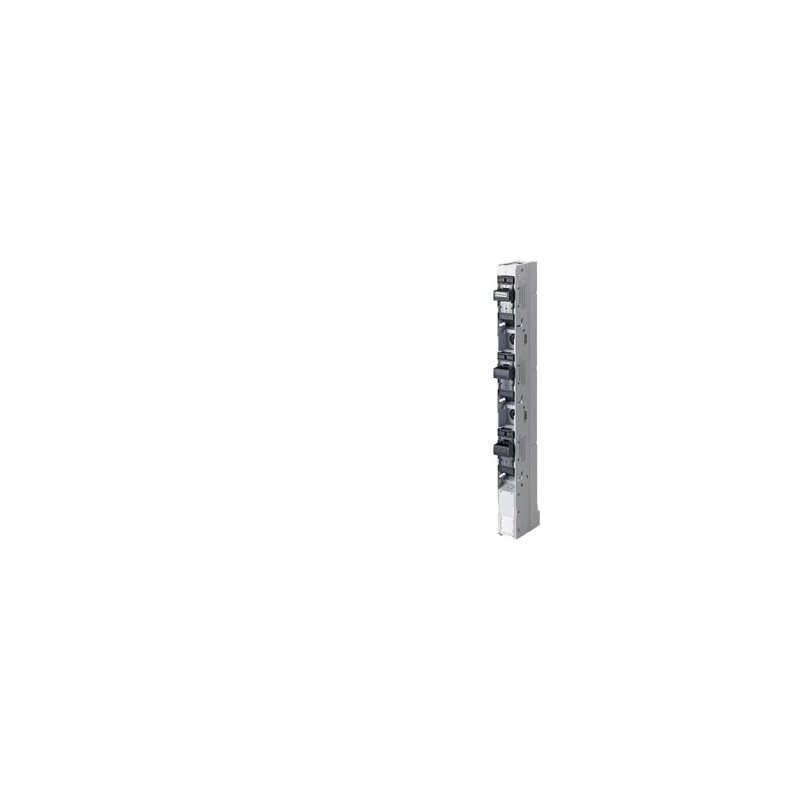

Siemens 3NJ4101-3BF01

In-line fuse switch disconnector 1-pole selectable, Sz. 00 I=160 A, U=690 V AC Flat terminal M8 for cable lug 1x 10-95 mm2

Model
product brand name SENTRON
product designation Fuse switch disconnectors
design of the product in in-line design
type of switching contact double breaking switching contact No
design of the auxiliary release Without
design of the safety monitoring Without
design of the load switch strip form Yes
General technical data
number of poles 3
number of poles note 1-pole switchable
type of device For busbar system 185 mm
size of fuse link NH000, NH00
fuse system LV HRC fuse
Voltage
insulation voltage rated value 800 V
operational current
● at AC-21 B at 400 V rated value 160 A
● at AC-21 B at 500 V rated value 160 A
● at AC-21 B at 690 V rated value 160 A
● at AC-23 B at 400 V rated value 160 A
operating voltage
● at AC rated value 690 V
● at DC rated value 440 V
Protection class
protection class IP on the front IP30
