3KD3860-0PE20-0
New

3KD3860-0PE20-0

New product

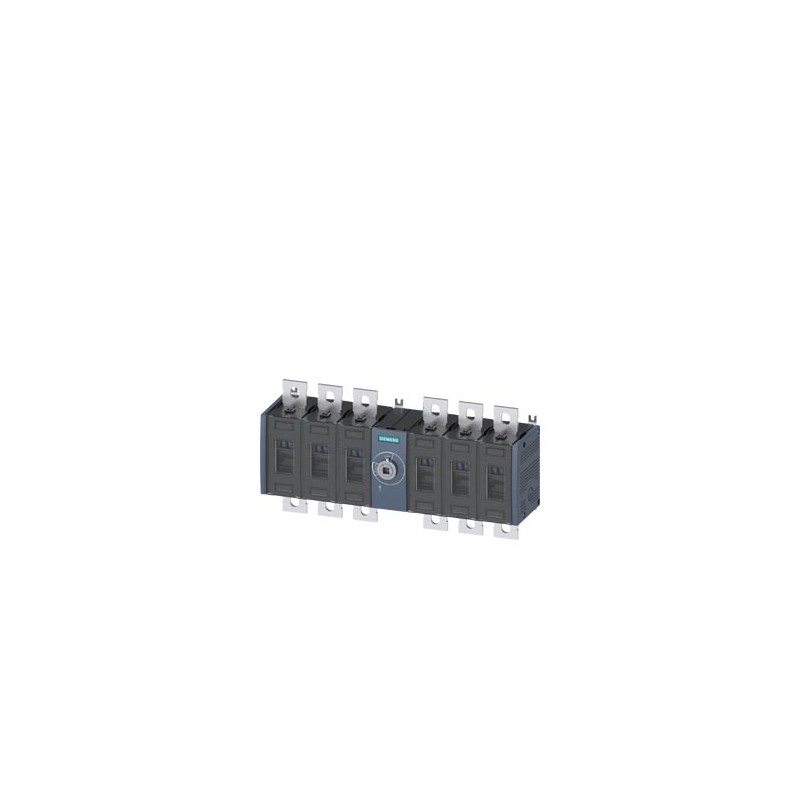

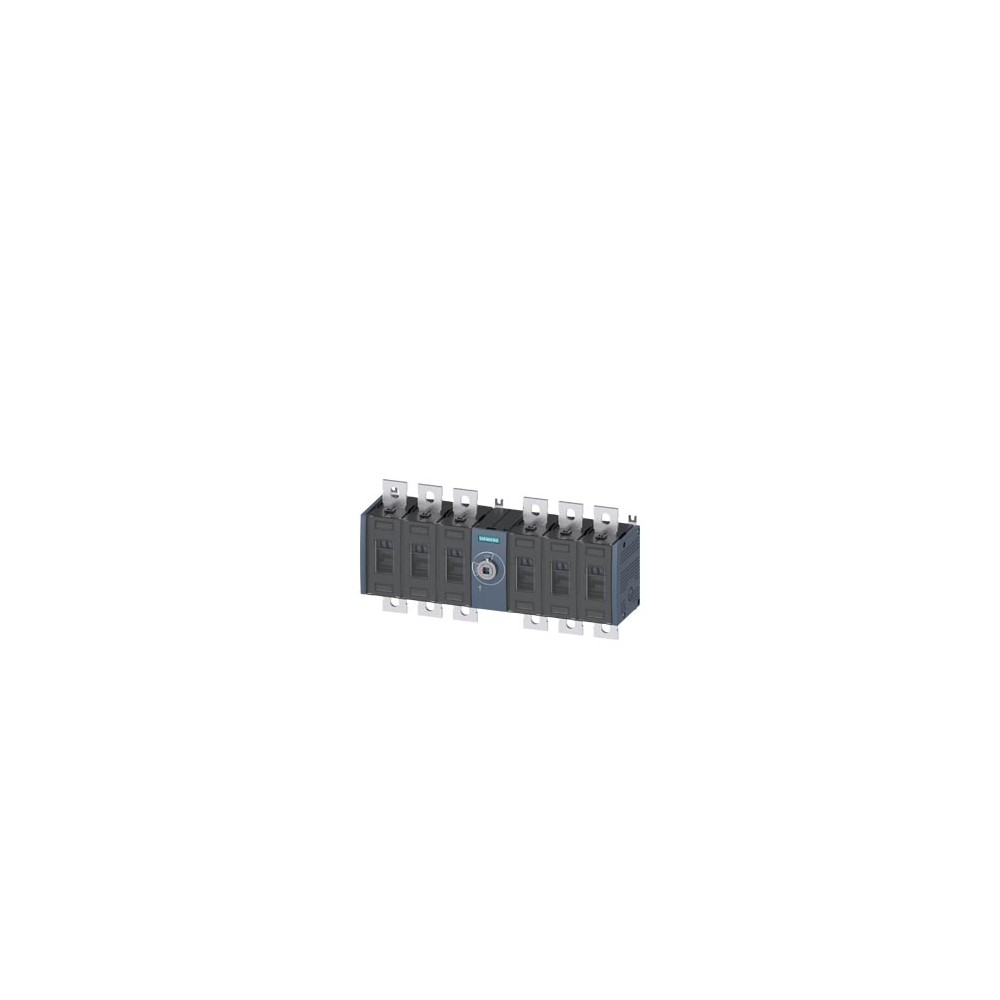

Siemens 3KD3860-0PE20-0

Switch disconnector 250 A, Size 3, 6-pole DC Front operating mechanism center Basic unit without handle flat terminal

Model
product brand name SENTRON
product designation 3KD switch disconnector
design of the product DC switch
display version for switch position indicator door-coupling rotary operating mechanism ON-OFF
design of the actuating element Without handle
type of the driving mechanism Front operating mechanism
type of the driving mechanism motor drive No
General technical data
number of poles 6
type of device fixed mounting
size of switch disconnector 3
mechanical service life (operating cycles) typical 15 000
electrical endurance (operating cycles)
● at DC-21 A at 1000 V 200
position of the switch operating mechanism after the third pole
overvoltage category IV
Voltage
operating voltage with current paths in series
● with degree of pollution 2 at DC rated value 1200 V / 6
● with degree of pollution 3 at DC rated value 1200 V / 6
insulation voltage
● with degree of pollution 2 at DC rated value 1 250 V
● with degree of pollution 3 at DC rated value 1 250 V
surge voltage resistance rated value 12 kV
Protection class
protection class IP IP00
protection class IP
● with closed switch with cover or cable lug cover IP20
● on the front IP00
