3KC6426-2TA20-0TA3
New

3KC6426-2TA20-0TA3

New product

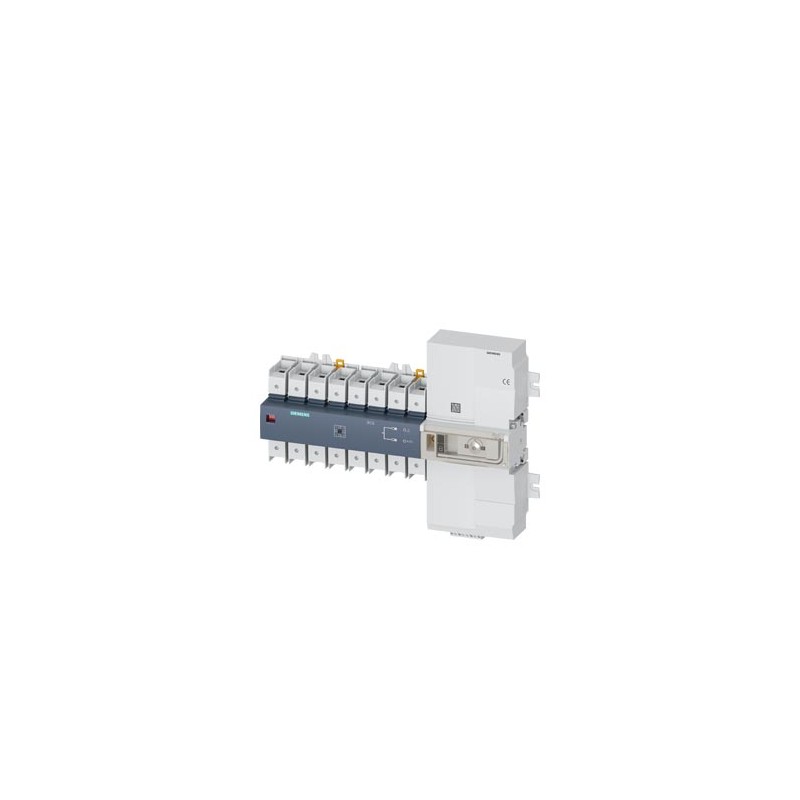

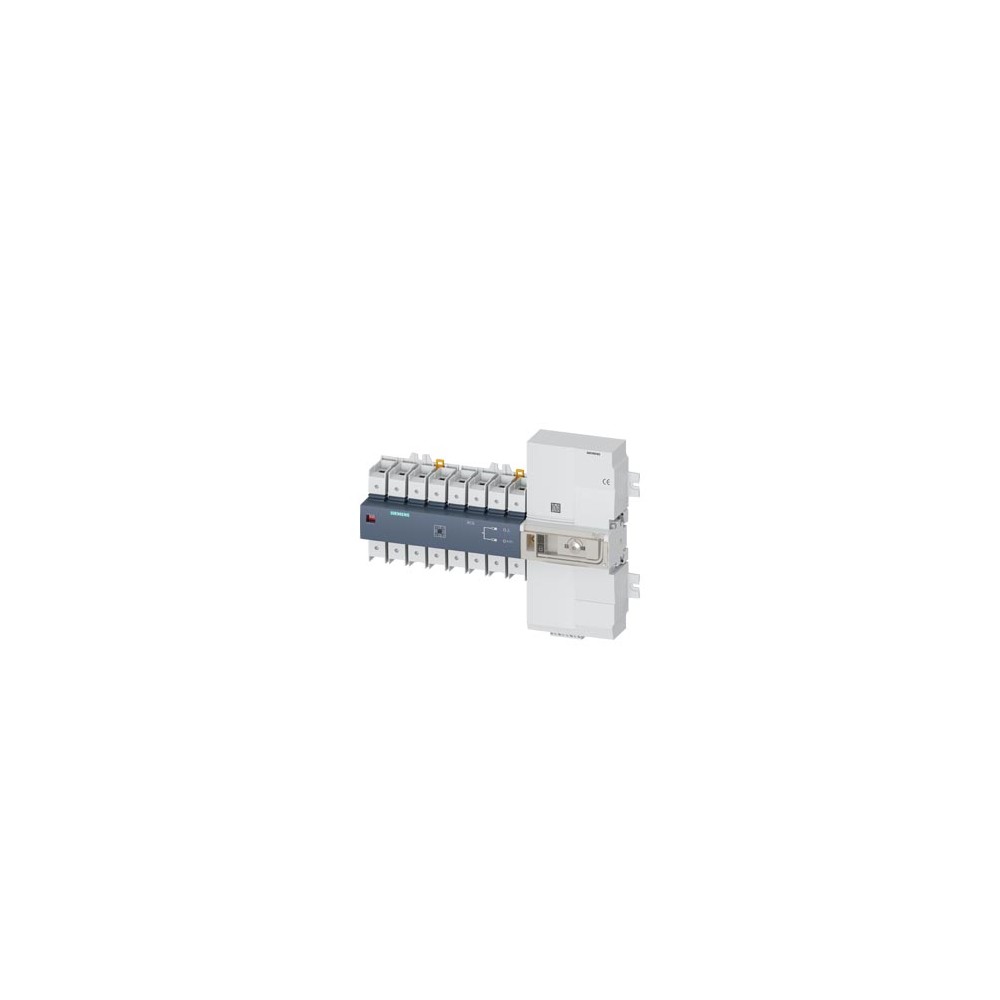

Siemens 3KC6426-2TA20-0TA3

SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 63 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 63 A, Ie at AC-23 A at 690 V: 63 A, screw and standard mounting rail on 35 mm, motorized operating mechanism, at the right end, long handle, box terminal

Model
product brand name SENTRON
product category ATE
product designation transfer switching equipment
design of the product automatic
design of the actuating element Long rotary knob
design of handle Handle
type of the driving mechanism motorized operating mechanism
type of the driving mechanism motor drive Yes
General technical data
number of poles 4
type of device fixed mounting
mechanical service life (operating cycles) for function sequence O-I-O typical 8 500
I2t value
● of the fuse at 415 V maximum permissible 61 300 A²·s
● with closed switch for combination switch + fuse at 415 V maximum 61 300 A²·s
position of the switch operating mechanism at the right end
overvoltage category II
degree of pollution 3
insulation voltage
● rated value 800 V
● with degree of pollution 3 at DC rated value 800 V
Supply voltage
supply voltage at AC
● minimum 176 V
● maximum 288 V
Protection class
protection class IP IP00
protection class IP
● with closed switch with cover or cable lug cover IP20
● on the front IP20
