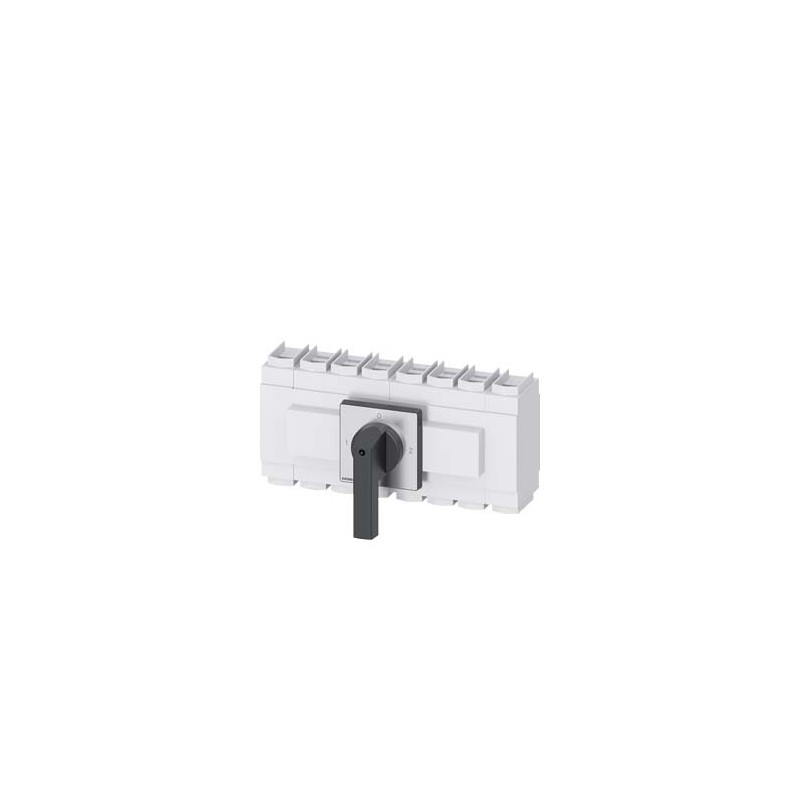

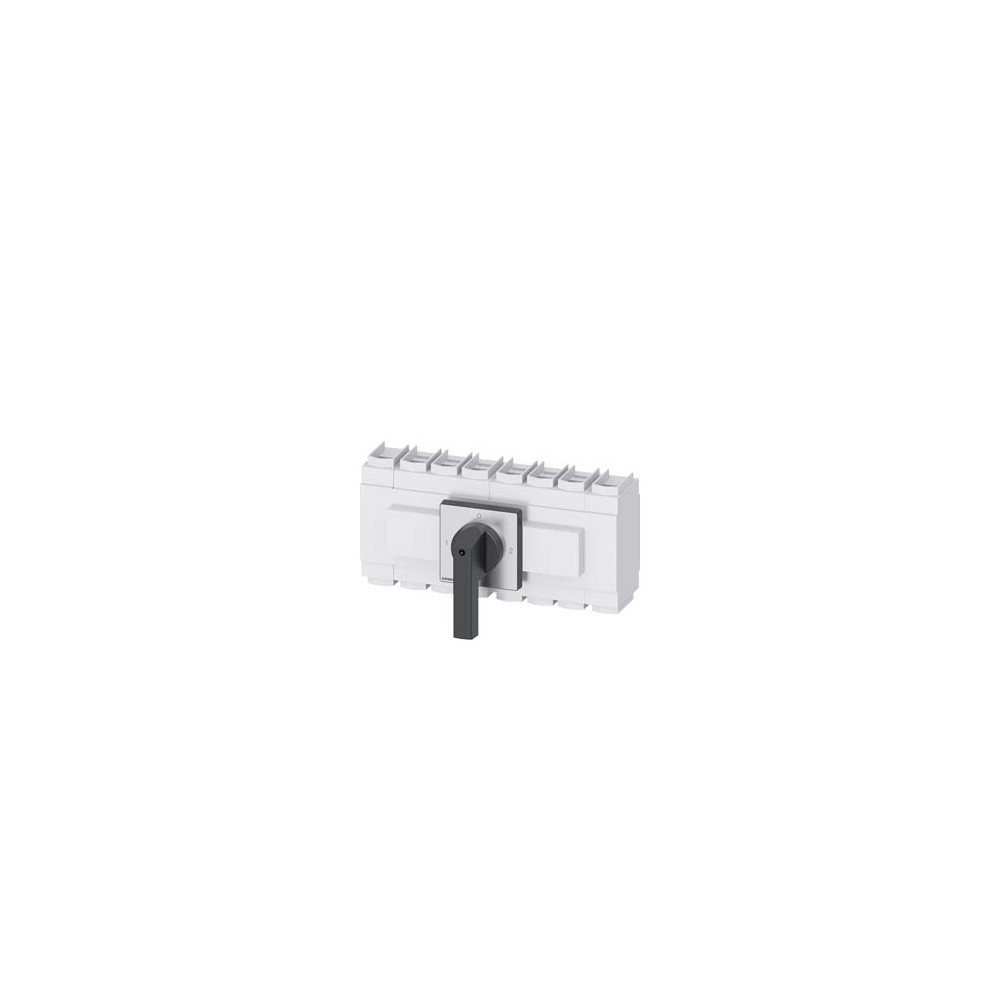

Siemens 3LD2305-7UL01

SENTRON, switch disconnector 3LD, changeover switch, 4-pole, Iu: 160 A, operating power / at AC-23 A at 400 V: 75 kW, front-mounted, knob-operated mechanism, black, 4-hole mounting of the handle

Model
product brand name SENTRON
product designation Switch disconnector
design of the product Selector switch
display version for switch position indicator manual operation 1 ON - 0 OFF - 2 ON
type of switch front mounted
design of the actuating element selector switch
color of the actuating element black
design of handle knob-operated mechanism, black
type of the driving mechanism motor drive No
General technical data
number of poles 4
size of switch disconnector 5
mechanical service life (operating cycles) typical 100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V 6 000
operating frequency maximum 50 1/h
degree of pollution 3
Voltage
insulation voltage rated value 690 V
surge voltage resistance rated value 8 kV
operating voltage
● at AC rated value 690 V
operating frequency rated value
● minimum 50 Hz
● maximum 60 Hz
Protection class
protection class IP IP65
degree of protection NEMA rating 1, 3R, 4X, 12
protection class IP on the front IP65
