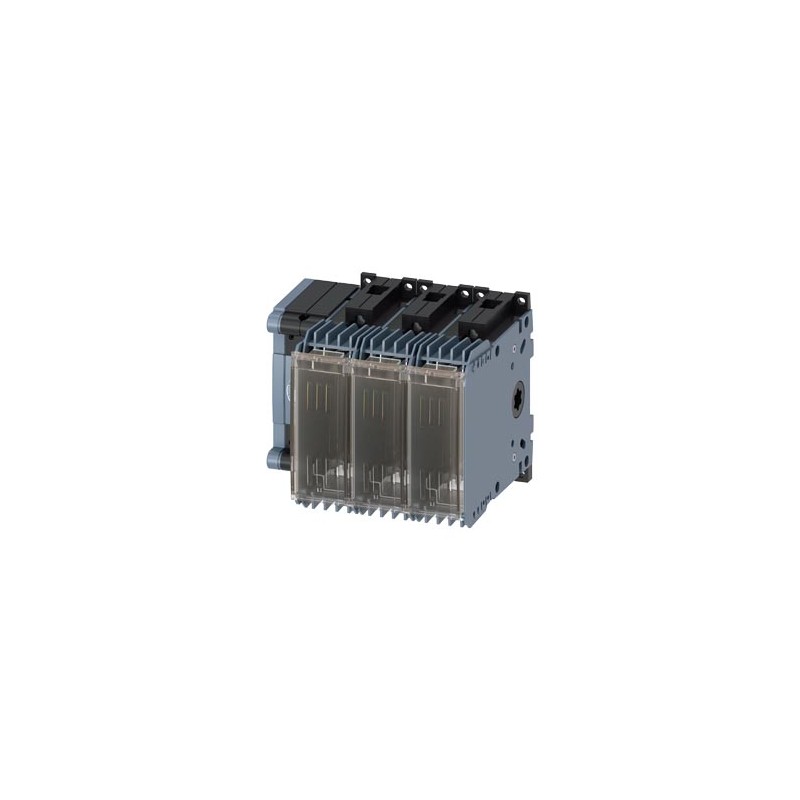

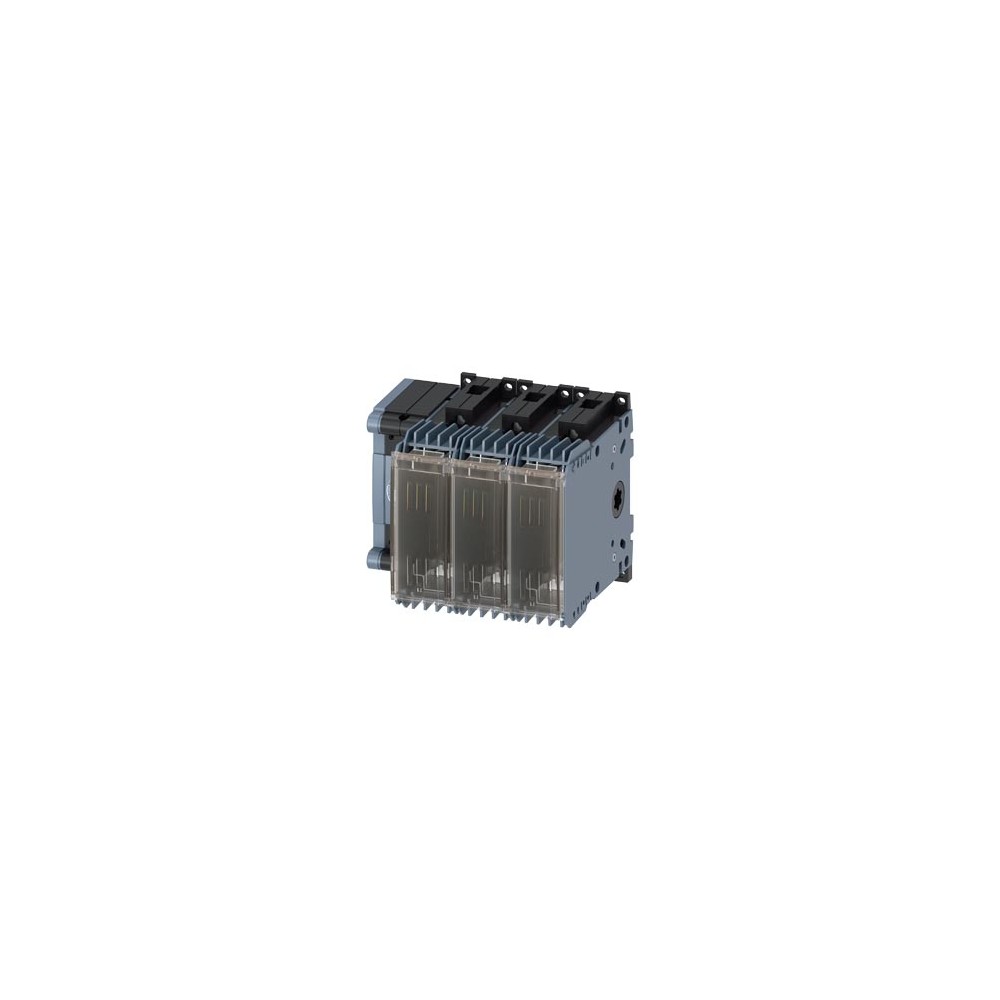

Siemens 3KF1303-0LB11

switch disconnector with fuse 32 A, frame size 1, 3-pole for LV HRC fuse size 000 and 00 front operating mechanism left basic unit without handle box terminal without fuses

Model
product brand name SENTRON
product designation 3KF switch disconnector with fuses
design of the product 3KF switch disconnector with fuses
product version 3KF NH
design of the actuating element without
design of handle Without
direction of actuation from the front
type of the driving mechanism motor drive No
number of poles 3
size of disconnecting link 00 and 000
size of switch disconnector 1
size of fuse link NH000, NH00
mechanical service life (operating cycles) typical 15 000
electrical endurance (operating cycles)
● at AC-23 A at 440 V 10 000
● at AC-23 A at 690 V 6 000
● at DC-23 A at 440 V 1 500
I2t value
● with closed switch for combination switch + fuse at 500 V maximum 33 200 A²·s
● with closed switch for combination switch + fuse at 400 V maximum 33 200 A²·s
● with closed switch at 690 V for combination switch + gG fuse maximum 40 700 A²·s
● of the fuse at 500 V maximum permissible 34 000 A²·s
● of the gG fuse at 690 V maximum permissible 55 000 A²·s
● of the aM fuse at 690 V maximum permissible 55 000 A²·s
position of the switch operating mechanism left
fuse system LV HRC fuse
overvoltage category IV
operating voltage with current paths in series
● with degree of pollution 2 at DC rated value 440 / 3
● with degree of pollution 3 at DC rated value 440 / 3
surge voltage resistance rated value 12 kV
Supply voltage
operating voltage at AC rated value maximum 690 V
Protection class
protection class IP IP20
protection class IP
● with closed switch with cover or cable lug cover IP20
● on the front IP20
