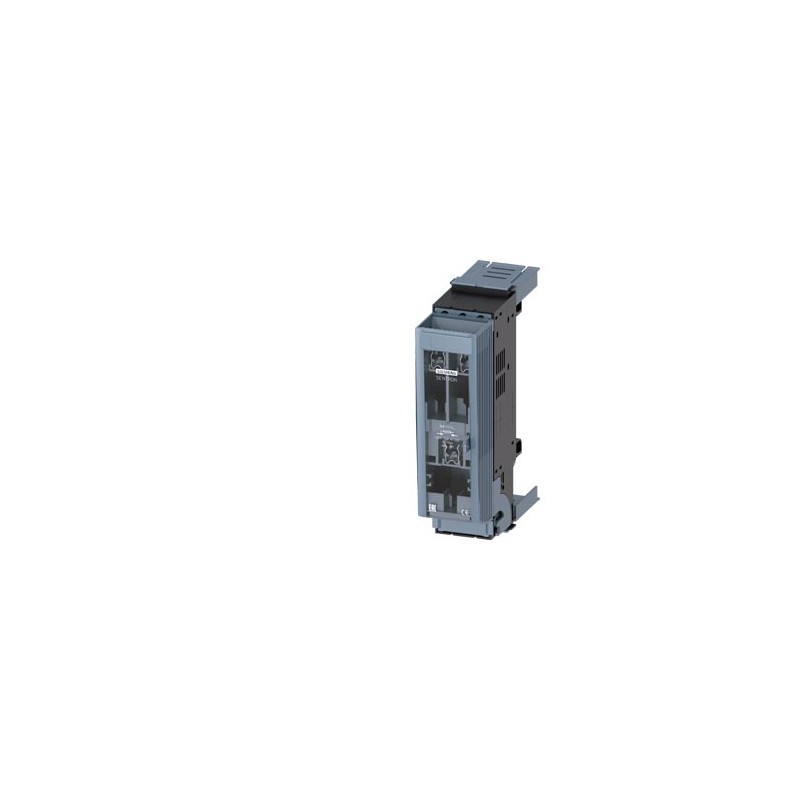

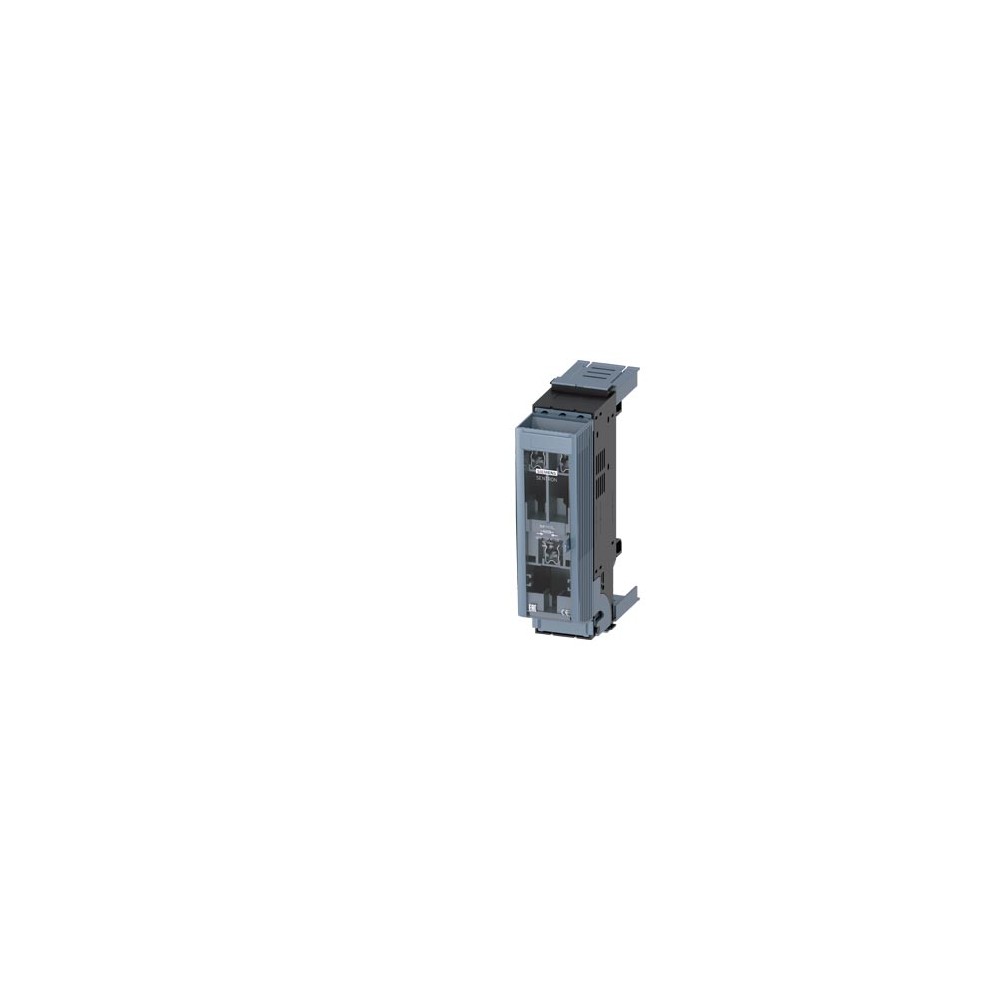

Siemens 3NP1113-1BC20

SENTRON, fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for 60 mm busbar systems, box terminal, cable outlet toward bottom, cover plane 32/60/70 mm

Model
product designation Fuse switch disconnector
busbar design busbar thickness 5 or 10 mm
design of the safety monitoring Without
design of the load switch strip form No
type of the driving mechanism motor drive No
General technical data
number of poles 3
type of device for 60 mm busbar systems
size of disconnecting link 0
size of fuse link NH000
let-through current with closed switch maximum 15 kA
mechanical service life (operating cycles) typical 2 000
I2t value with closed switch maximum 150 kA²·s
power factor
● at AC-22 B 0.65
● at AC-23 B 0.45
fuse system LV HRC fuse
degree of pollution 2
Voltage
insulation voltage
● rated value 800 V
● with degree of pollution 2 at AC rated value 800 V
power factor at AC-21 B 0.95
surge voltage resistance rated value 6 kV

● operational current
— at 35 °C rated value 125 A
— at 40 °C rated value 111 A
— at 45 °C rated value 95 A
— at 50 °C rated value 76 A
— at 55 °C rated value 51 A
● operational current
— at AC-21 B at 240 V rated value 125 A
— at AC-21 B at 400 V rated value 125 A
— at AC-21 B at 500 V rated value 125 A
— at AC-21 B at 690 V rated value 80 A
— at AC-22 B at 240 V rated value 125 A
— at AC-22 B at 400 V rated value 125 A
— at AC-22 B at 500 V rated value 125 A
— at AC-23 B at 400 V rated value 63 A
— at AC-23 B at 240 V rated value 63 A
let-through current with high-speed activation maximum permissible 10 kA
operating voltage
● at AC rated value maximum 690 V
Protection class
protection class IP
● with closed switch with cover or cable lug cover IP30
● with closed switch without cover or cable lug cover IP10
● open IP10
