7KM3220-2BA01-1JA0
New

7KM3220-2BA01-1JA0

New product

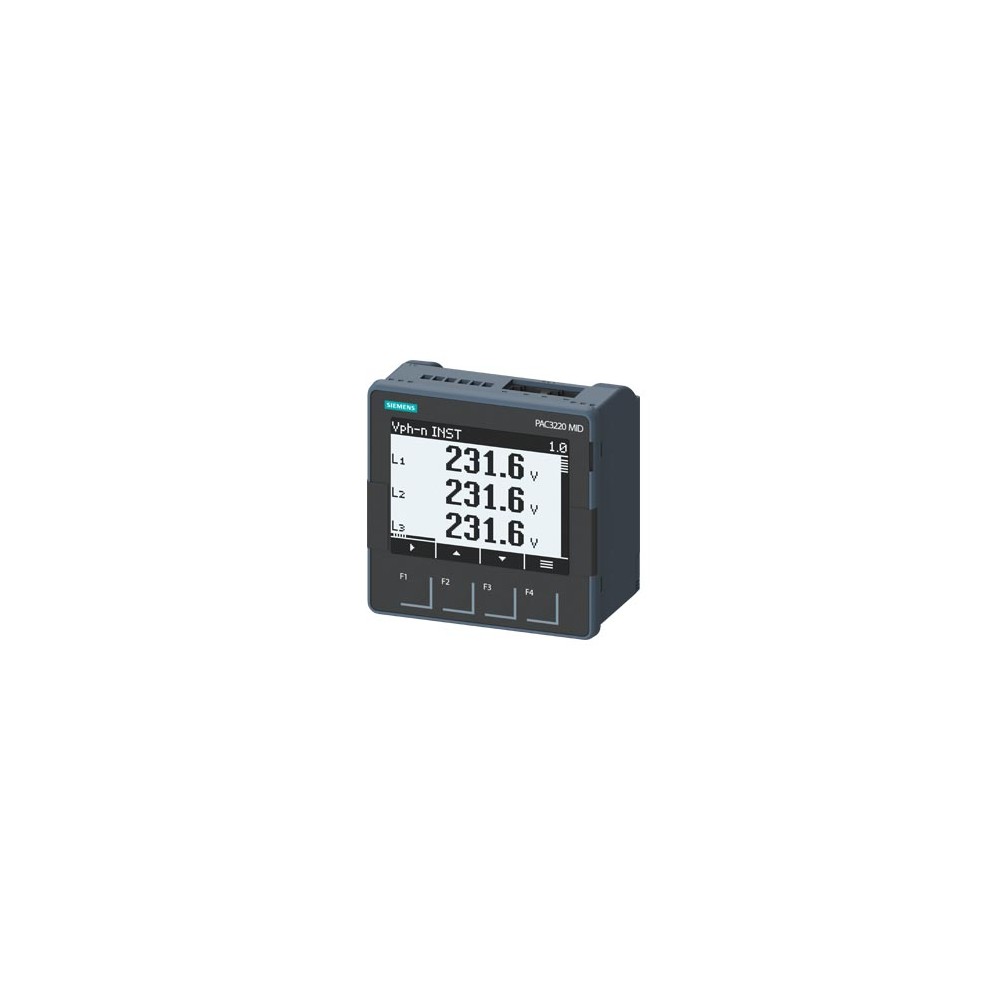

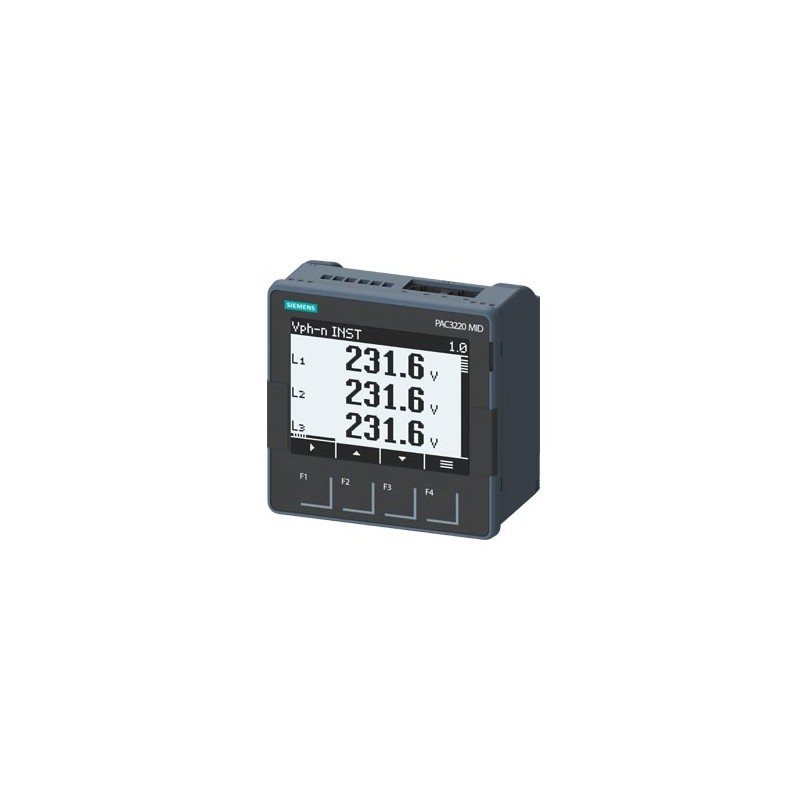

Siemens 7KM3220-2BA01-1JA0

SENTRON PAC3220, calibrated according to MID, LCD 96 x 96 mm Power Monitoring Device, control panel instrument with measurement of electrical variables, protocol: Modbus TCP, with graphical display, Ue 230/400 V, 50 Hz, Ie x/1 A or x/5 A AC, additional optional auxiliary power supply 100 ... 250 V +-10% AC/DC screw terminal

Model
product brand name SENTRON
product designation multimeter
design of the product basic
product type designation 7KM PAC3220
Measurements
measuring procedure
● for voltage measurement TRMS
● for current measurement TRMS
type of measured value detection complete
voltage curve Sinusoidal or distorted
measurable line frequency
● initial value 45 Hz
● full-scale value 65 Hz
operating mode for measured value detection automatic line frequency detection Yes
operating mode for measured value detection
● set at 50 Hz No
● set to 60 Hz No
Supply voltage
design of the power supply Wide-range power supply
type of voltage of the supply voltage AC/DC
supply voltage at AC 100 ... 250 V
supply voltage at DC 100 ... 250 V
Degree of protection protection class
protection class IP on the front IP65
