5TT5841-8
New

5TT5841-8

New product

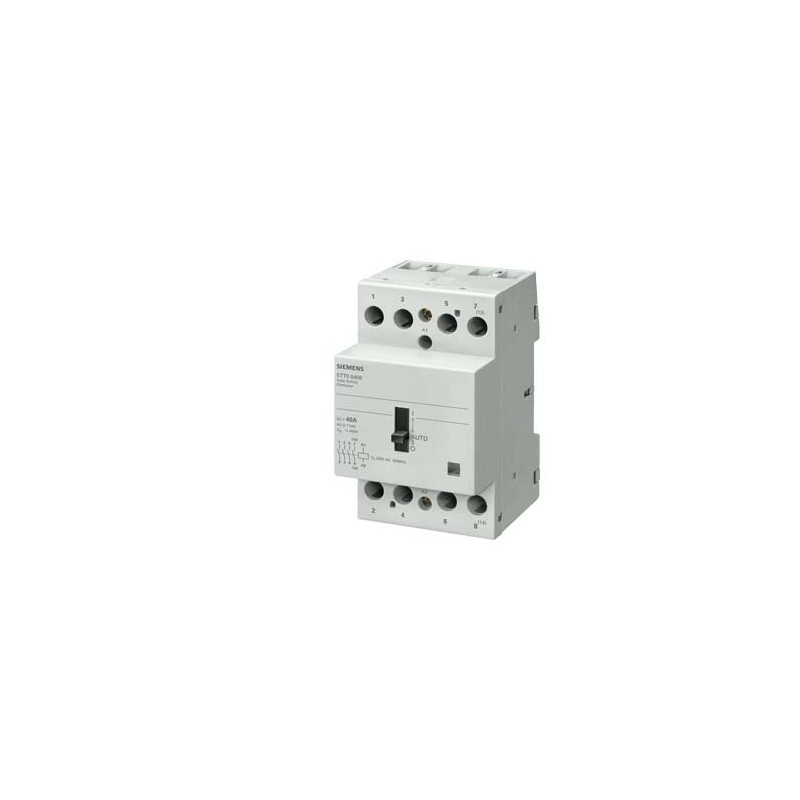

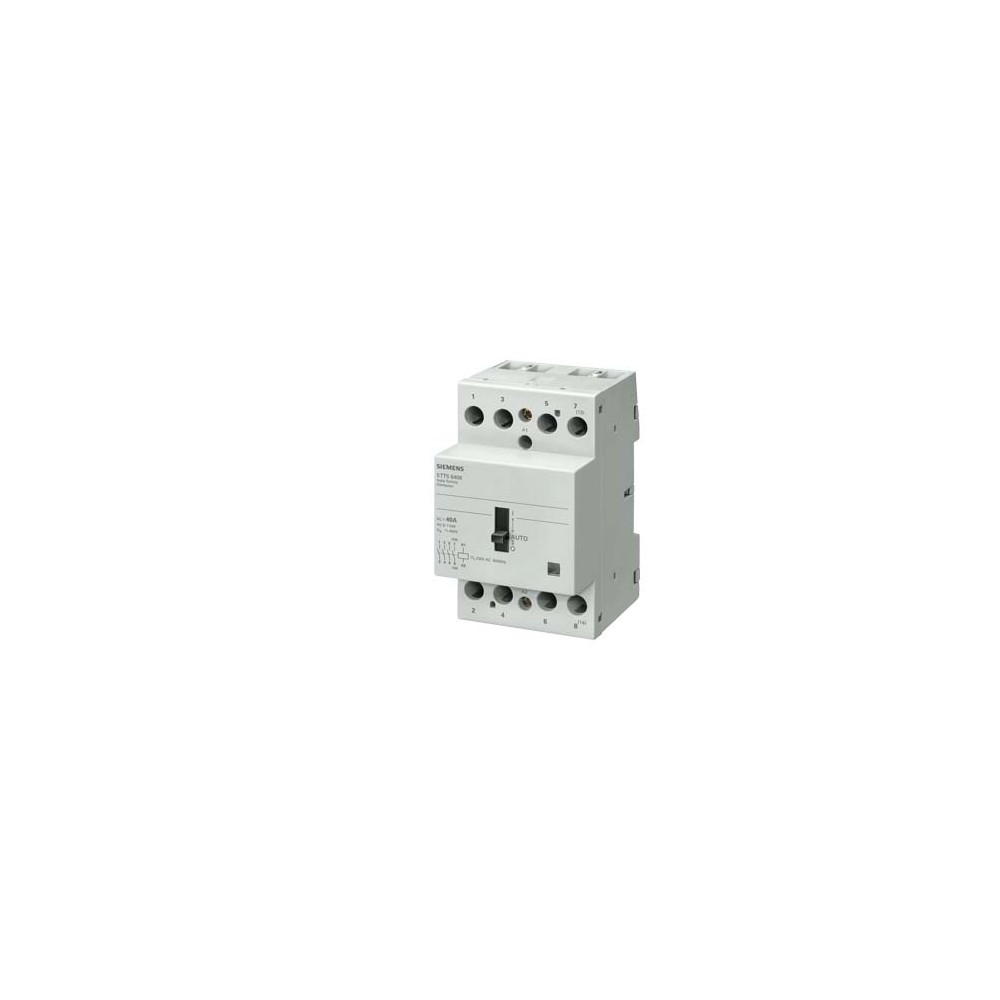

Siemens 5TT5841-8

insta contactor 0/1-automatic with 3 NO contacts and 1 NC contact for 230 V AC, 400 V 40 A control 24 V AC

Model
product brand name SENTRON
product designation Installation contactor
design of the product 3 NO contacts 1 NC contact
General technical data
relative ON period of magnet coil 100 %
type of voltage of the operating voltage AC
type of voltage of the operating voltage for actuation AC
Supply voltage
operating voltage rated value
● minimum 440 V
● maximum 440 V
Protection class
protection class IP IP20
Breaking Capacity
switching capacity active power with incandescent lamp load 4 000 W
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole 4 W
Control current
control supply voltage
● rated value 24 V
● rated value maximum 24 V
