New

5TT4456-0

Condition: New product

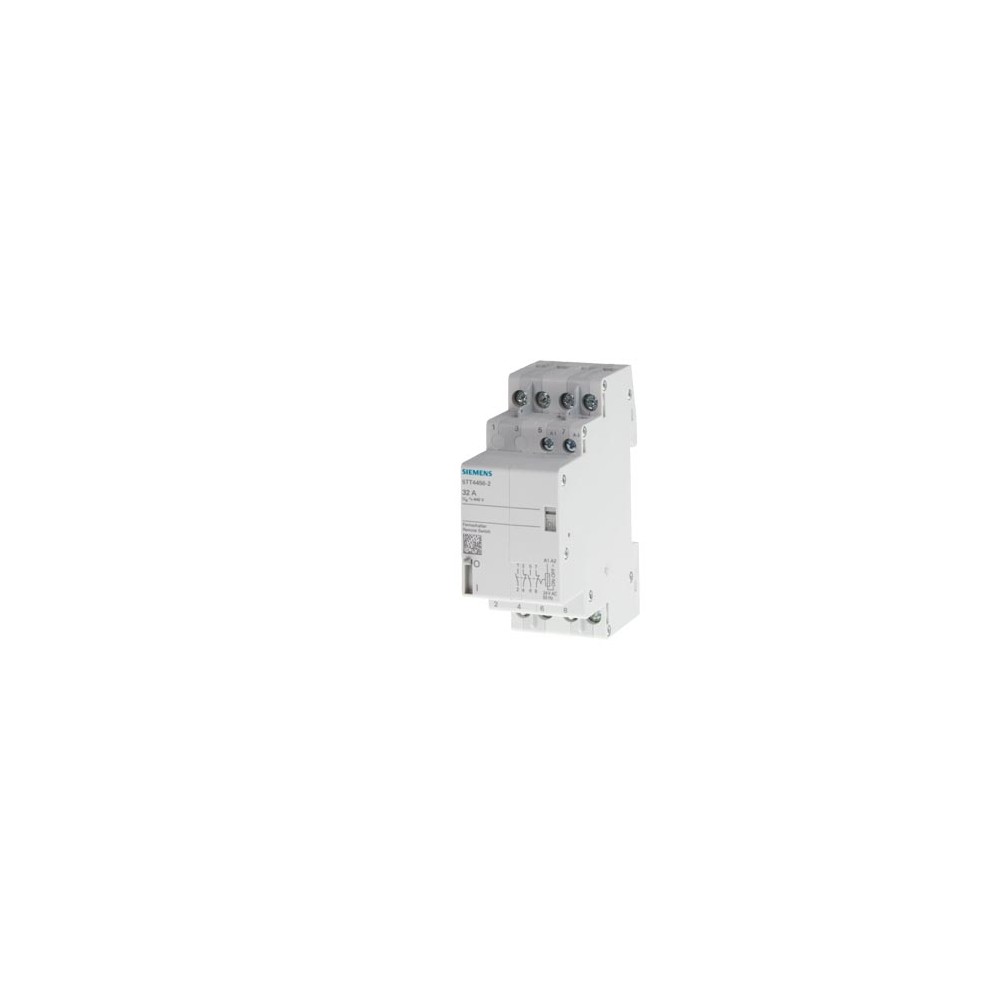

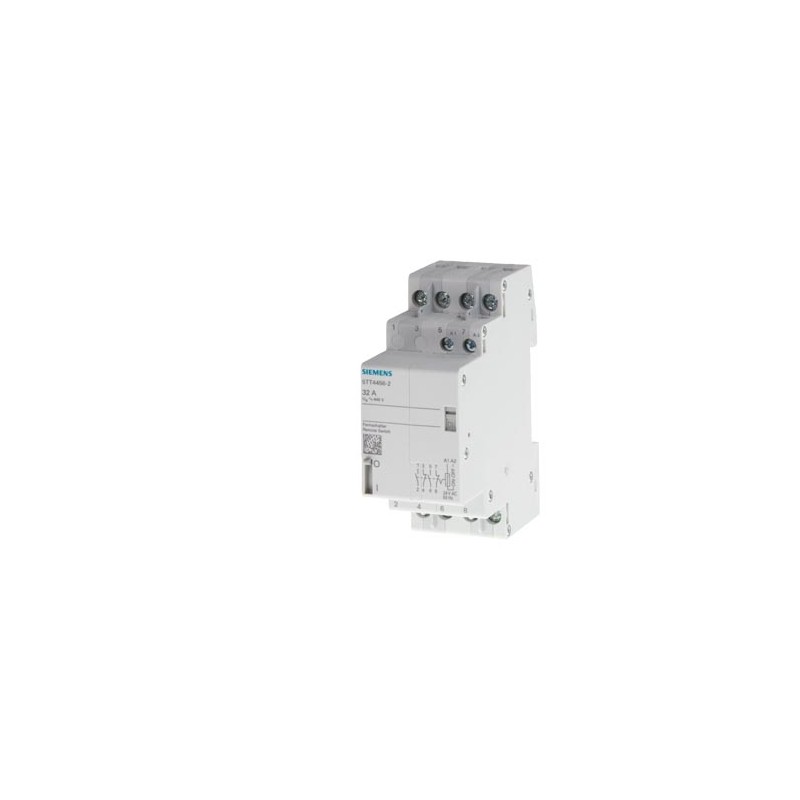

Siemens 5TT4456-0

Remote control switch Contact for 32 A Voltage 230 V AC 2 NO 2 NC

Model
product brand name		SENTRON
product designation		Remote control switch
design of the product		2NO+2NC, 230 V AC
latching relay design		Mechanical switch
General technical data
electrical endurance (operating cycles)		50 000
galvanic isolation between magnet coil and contact		Yes
switching voltage of the contacts at AC minimum		10 V
switching current at AC per contact minimum		100 mA
degree of pollution		3
power loss [V∙A] of magnet coil with pulse rated value		18 VA
Voltage
type of voltage of the operating voltage		AC
continuous voltage fuse version		Yes
surge voltage resistance rated value		3 kV
supply voltage		400 V
Supply voltage
supply voltage
● minimum		230 V
Protection class
protection class IP		IP20
