5TL1363-0

Condition: New product

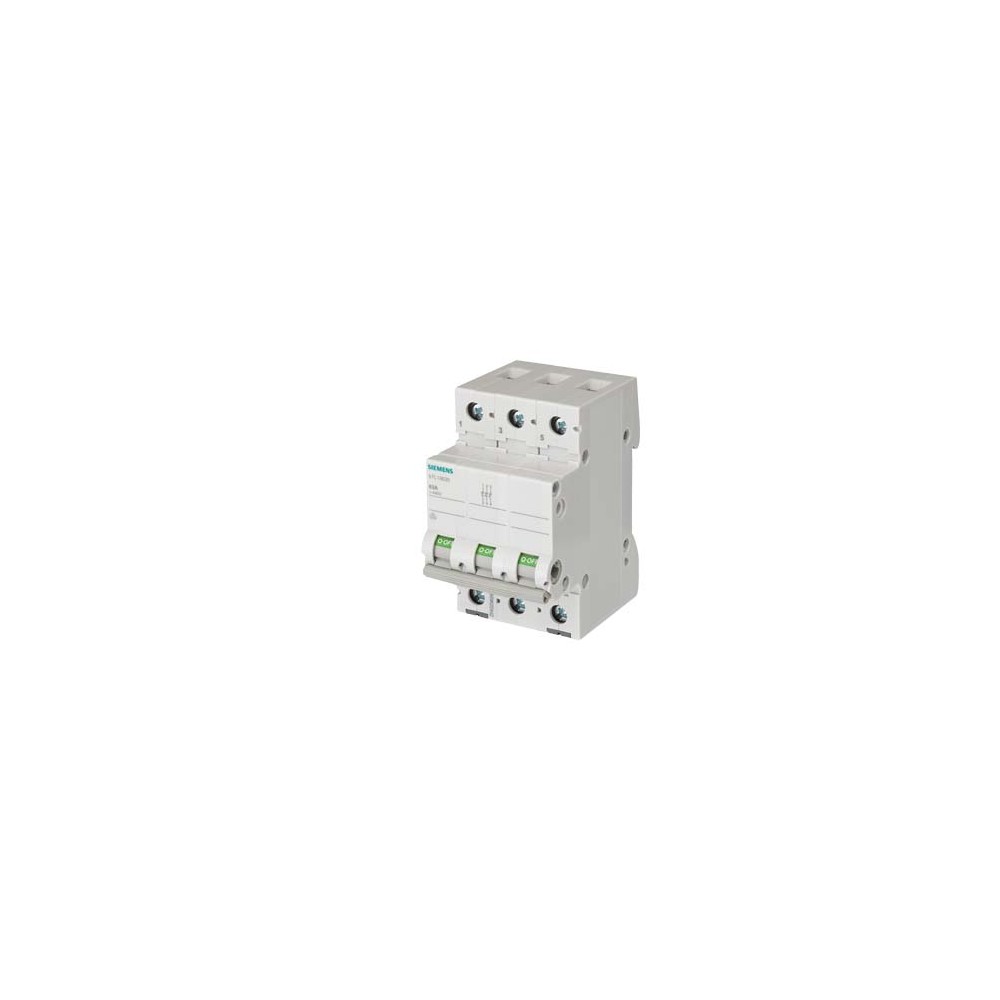

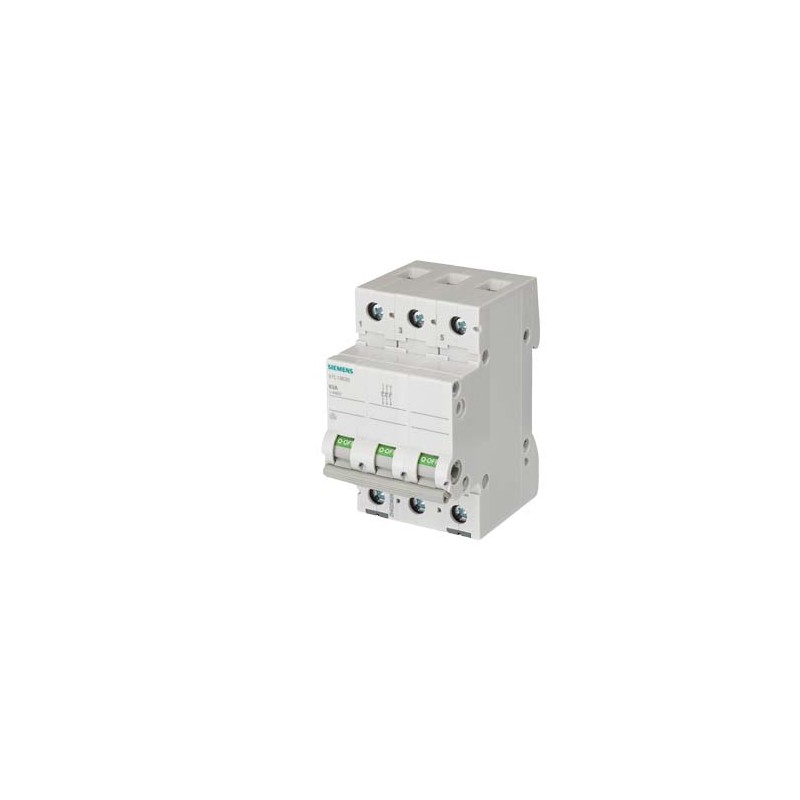

Siemens 5TL1363-0

switch disconnector, on-off switch 63 A 3-pole

Model
product brand name		SENTRON
product designation		On-off switch
design of the product		3 NO
design of the switching function		on-off switch
General technical data
number of poles		3
short-circuit current rating		10 kA
type of voltage of the operating voltage		AC
Supply voltage
operating voltage rated value		440 V
value range of the operating frequency		50/60 Hz
Protection class
protection class IP		other
Breaking Capacity
switching capacity current rated value		0.196 kA
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole		2.2 W
Main circuit
operational current rated value		63 A
