3VA1450-1AA42-0AA0
New

3VA1450-1AA42-0AA0

New product

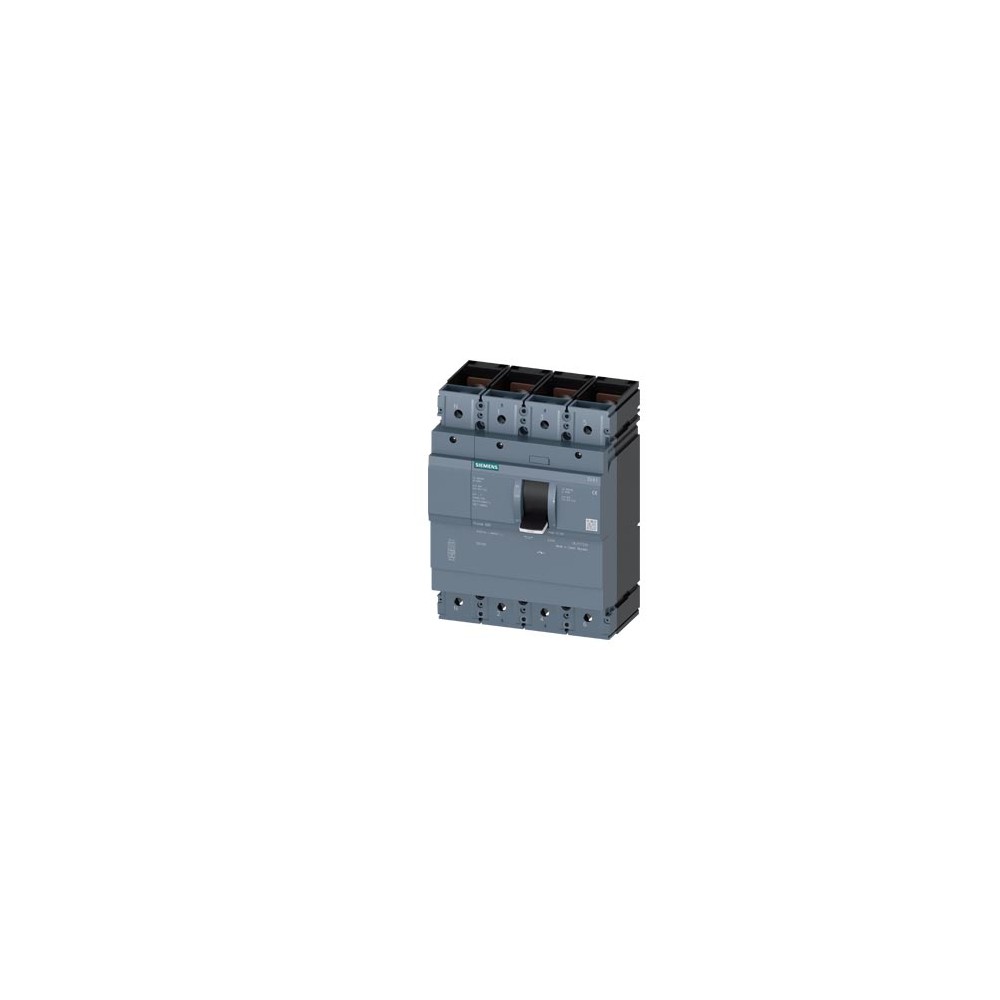

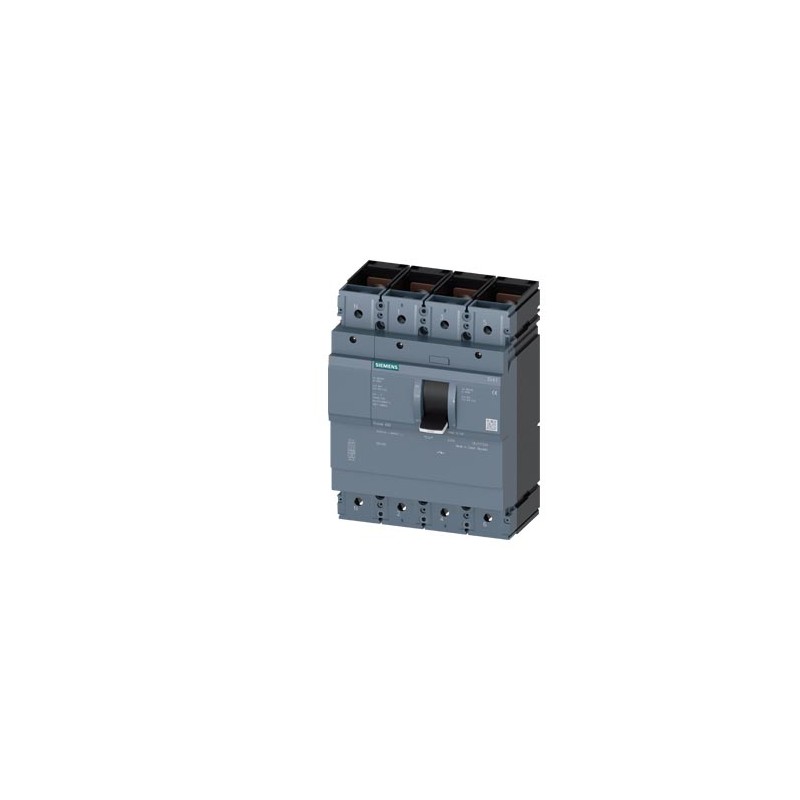

Siemens 3VA1450-1AA42-0AA0

switch disconnector 3VA1 IEC frame 630 4-pole SD100, In=500A without overload protection w/o short-circuit protection nut keeper kit

Model
product brand name SENTRON
product designation Molded case circuit breaker
product version General applications
design of the product in MCCB design
number of poles 4
design of the auxiliary release without
design of the auxiliary switch Without
General technical data
insulation voltage / rated value 800 V
operating voltage / at DC / rated value 1 000 V
operating voltage / at AC / rated value 690 V
surge voltage resistance / rated value 8 kV
power loss [W] / maximum 191 W
mechanical service life (operating cycles) / typical 20 000
type of device fixed mounting
suitability for use / switch disconnector Yes
suitability for use / main switch Yes
suitability for use / safety switch Yes
suitability for use / EMERGENCY OFF switch Yes
suitability for use / maintenance/repair switch Yes
product function / communication function No
Net Weight 6.221 kg
