3LD5200-0TL11

Condition: New product

More info

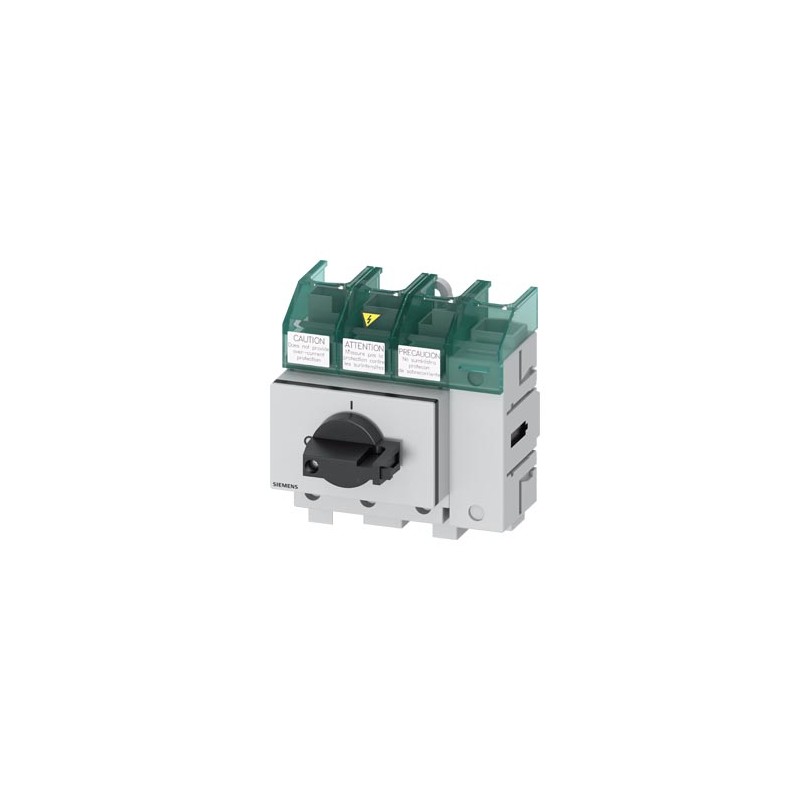

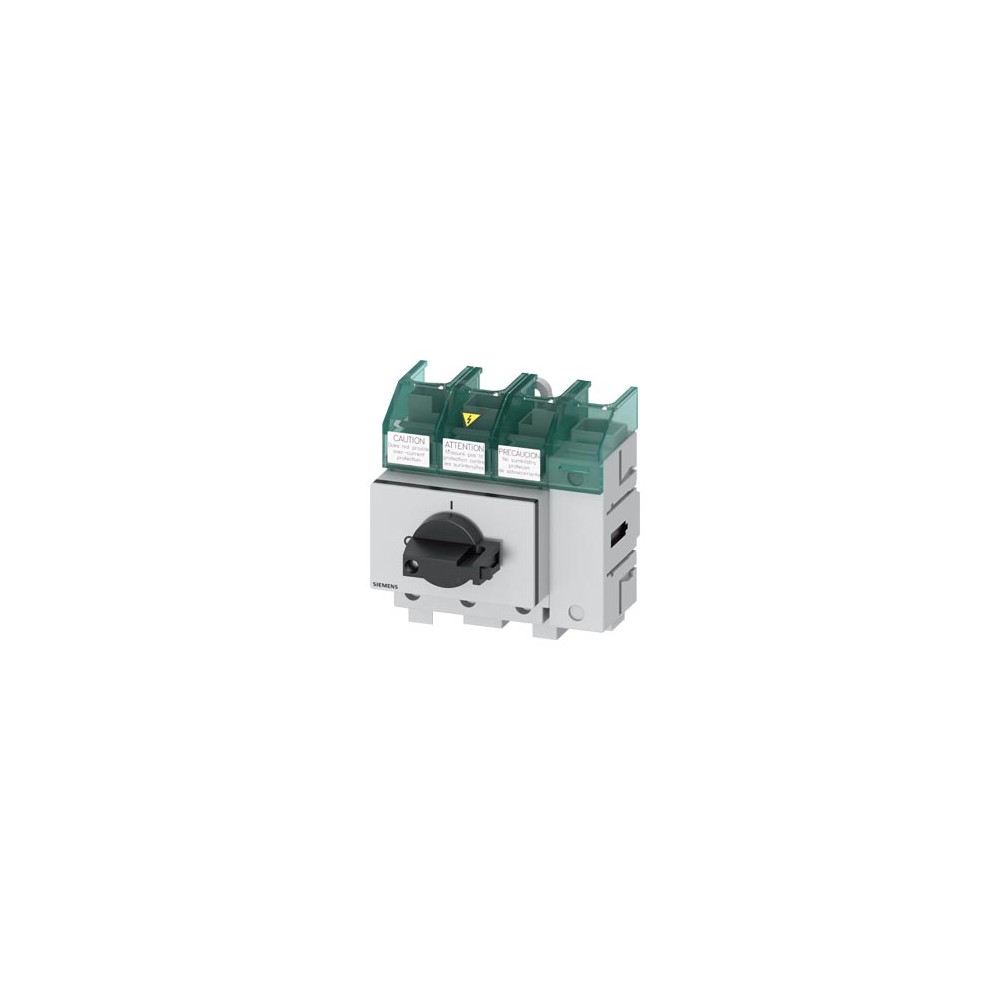

Siemens 3LD5200-0TL11

SENTRON 3LD5 switch disconnector UL, main switch, 4-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, floor mounting with direct operating mechanism, black including terminal covers for the infeed side for the infeed side

Model
product brand name		SENTRON
product designation		Switch disconnector
design of the product		Main switch
display version for switch position indicator manual operation		1 ON - 0 OFF
type of switch		Floor mounting with direct drive
design of the actuating element		selector switch
color of the actuating element		black
design of handle		knob-operated mechanism, black
type of the driving mechanism motor drive		No
General technical data
number of poles		4
size of switch disconnector		2
mechanical service life (operating cycles) typical		100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V		6 000
operating frequency maximum		50 1/h
degree of pollution		3
Voltage
insulation voltage rated value		690 V
surge voltage resistance rated value		6 kV
operating voltage
● at AC rated value		690 V
operating frequency rated value
● minimum		50 Hz
● maximum		60 Hz
Protection class
protection class IP		IP00
protection class IP on the front		IP00
