3LD5200-0TK13

Condition: New product

More info

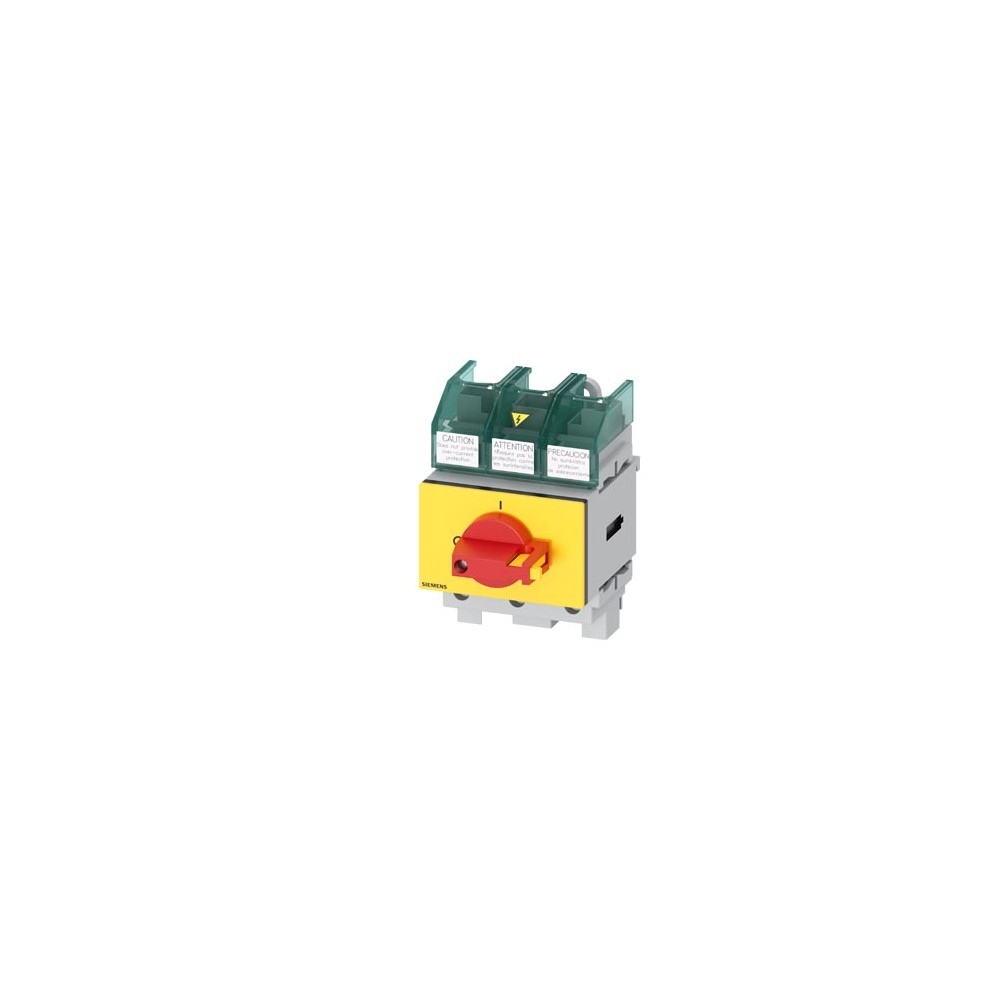

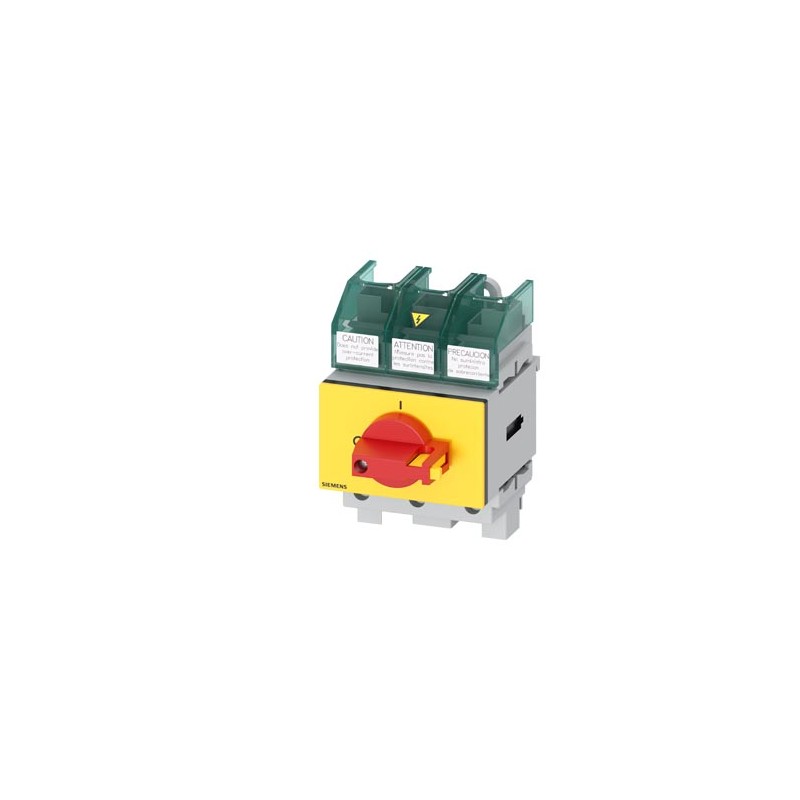

Siemens 3LD5200-0TK13

SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, floor mounting with direct operating mechanism, red/yellow including terminal covers for the infeed side

Model
product brand name		SENTRON
product designation		Switch disconnector
design of the product		EMERGENCY-STOP switch
display version for switch position indicator manual operation		1 ON - 0 OFF
type of switch		Floor mounting with direct drive
design of the actuating element		selector switch
color of the actuating element		red
design of handle		knob-operated mechanism, red/yellow
type of the driving mechanism motor drive		No
General technical data
number of poles		3
size of switch disconnector		2
mechanical service life (operating cycles) typical		100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V		6 000
operating frequency maximum		50 1/h
degree of pollution		3
Voltage
insulation voltage rated value		690 V
surge voltage resistance rated value		6 kV
operating voltage
● at AC rated value		690 V
operating frequency rated value
● minimum		50 Hz
● maximum		60 Hz
Protection class
protection class IP		IP00
protection class IP on the front		IP00
