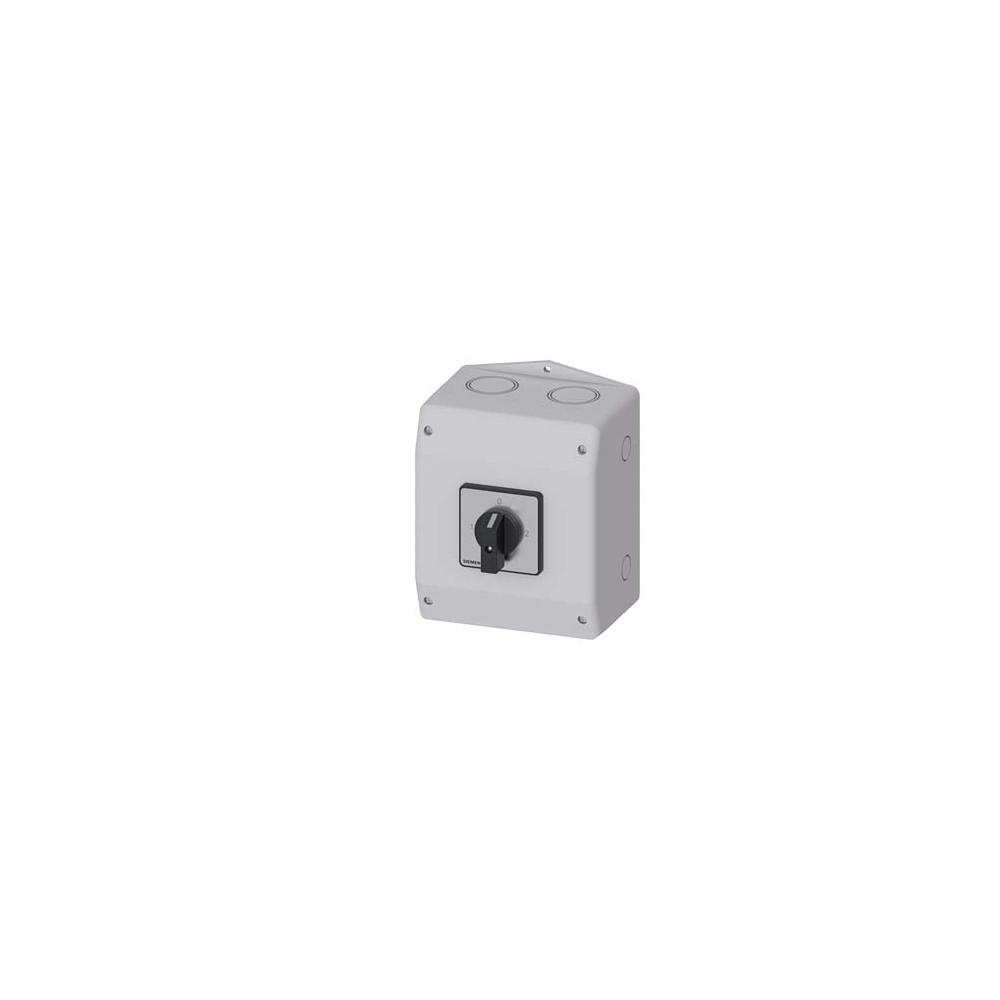

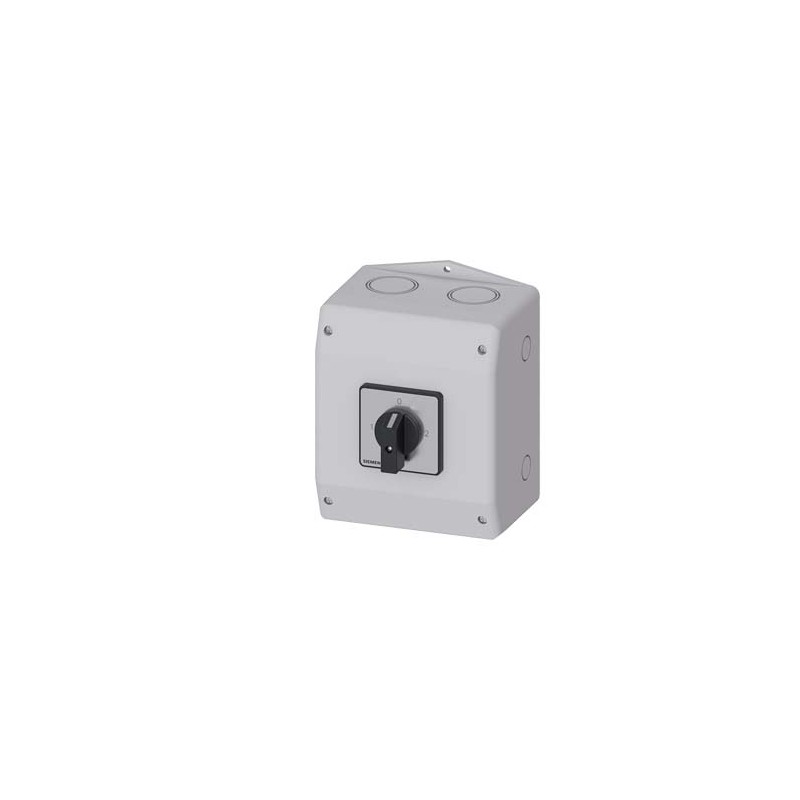

Siemens 3LD2265-7UB01

SENTRON, Switch disconnector 3LD, change-over switch, 3-pole, Iu: 32 A, Operating power / at AC-23 A at 400 V: 11.5 kW, molded-plastic encapsulation for metric cable screw connection, knob-operated mechanism, black

Model
product brand name SENTRON
product designation Switch disconnector
design of the product Selector switch
display version for switch position indicator manual operation 1 ON - 0 OFF - 2 ON
type of switch Molded-plastic enclosure for metric threaded joint
design of the actuating element selector switch
color of the actuating element black
design of handle knob-operated mechanism, black
type of the driving mechanism motor drive No
General technical data
number of poles 3
number of poles note N + PE
size of switch disconnector 2
mechanical service life (operating cycles) typical 100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V 6 000
operating frequency maximum 50 1/h
degree of pollution 3
Voltage
insulation voltage rated value 690 V
surge voltage resistance rated value 6 kV
operating voltage
● at AC rated value 690 V
operating frequency rated value
● minimum 50 Hz
● maximum 60 Hz
Protection class
protection class IP IP65
degree of protection NEMA rating 1, 4X, 12
protection class IP on the front IP65
