New

7LF4511-0

Condition: New product

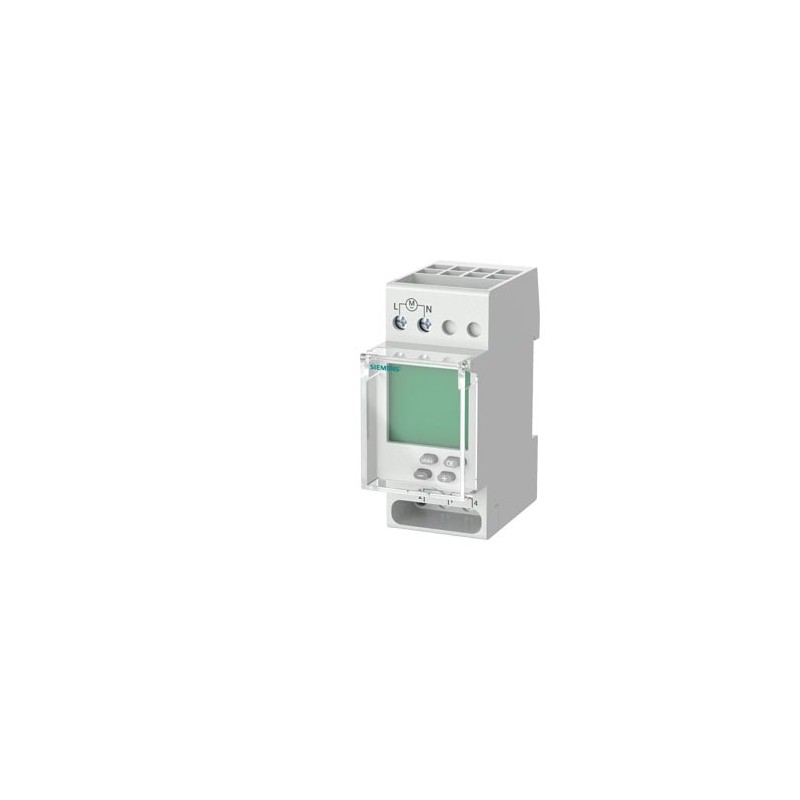

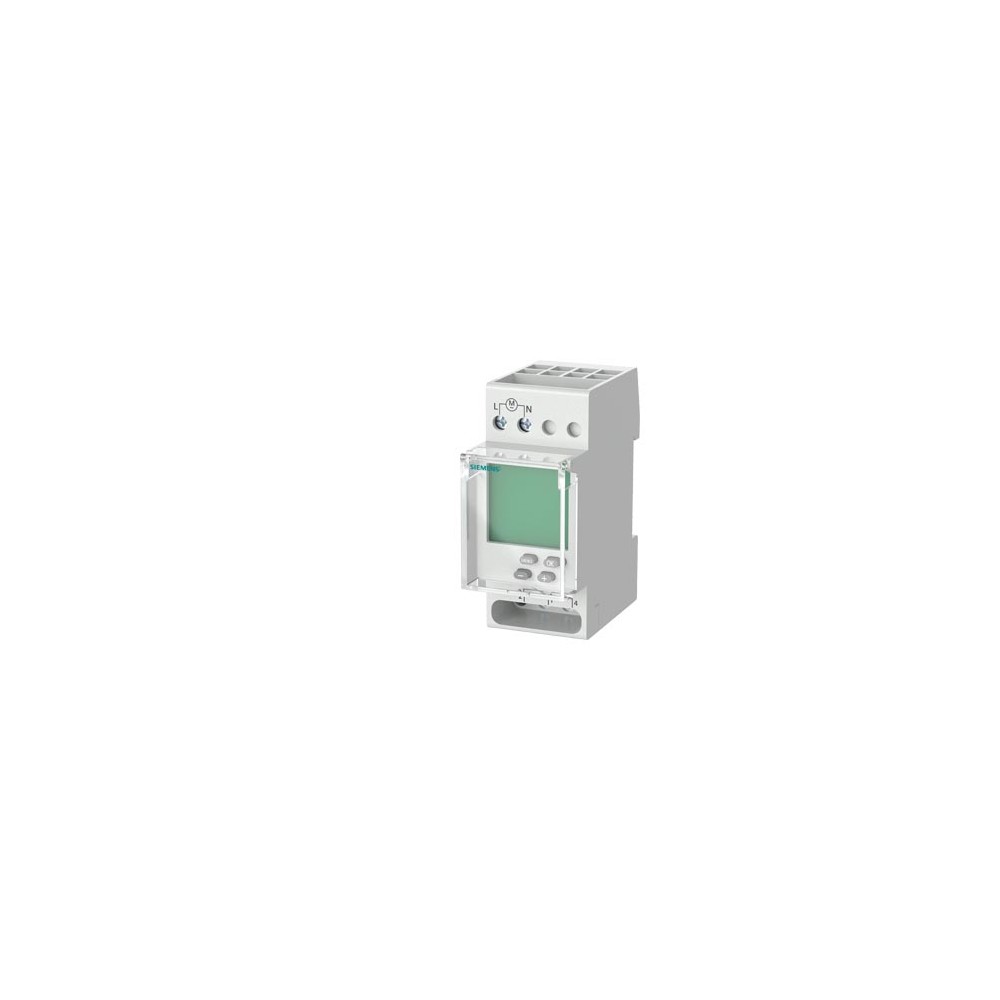

Siemens 7LF4511-0

weekly time switch Top digital 230 V 16A 1-channel 2MW

Model
product brand name		SENTRON
product designation		Digital time switch
design of the product		Top
design of the switching function		CO contact
General technical data
principle of operation radio-controlled		No
principle of operation line-synchronous		Yes
principle of operation quartz-controlled		No
accuracy per day		1.5 s
shortest switching time interval of channel 1		60 s
Voltage
control voltage at AC rated value
● minimum		250 V
● maximum		253 V
overvoltage category according to IEC 61010-1		III
Supply voltage
operating voltage at AC rated value		250 V
type of voltage of the supply voltage		AC
supply voltage frequency maximum		60 Hz
Protection class
protection class IP		IP20
