3LD3240-1TK11
New

3LD3240-1TK11

New product

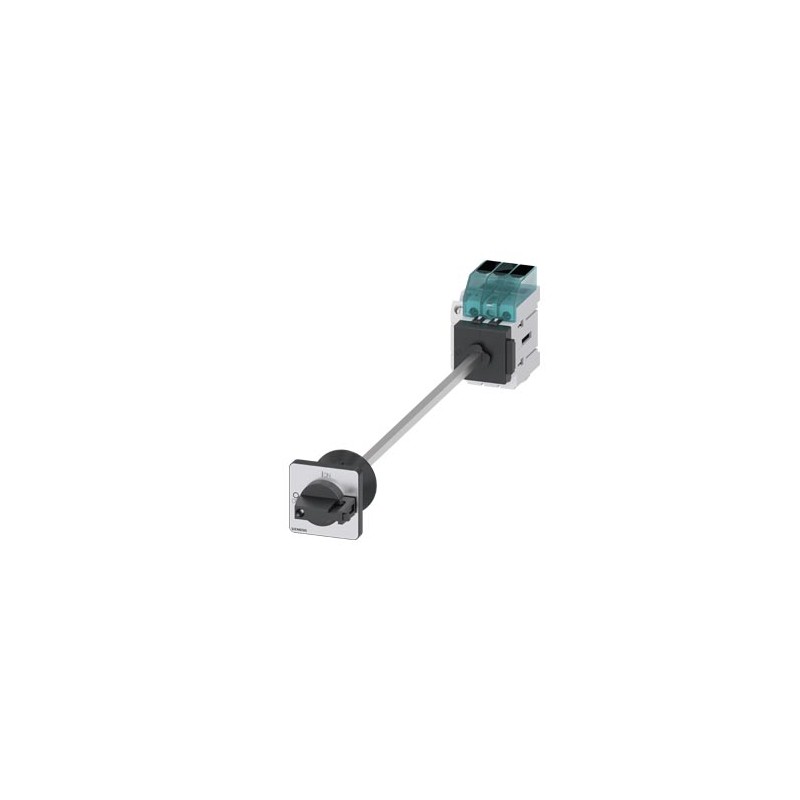

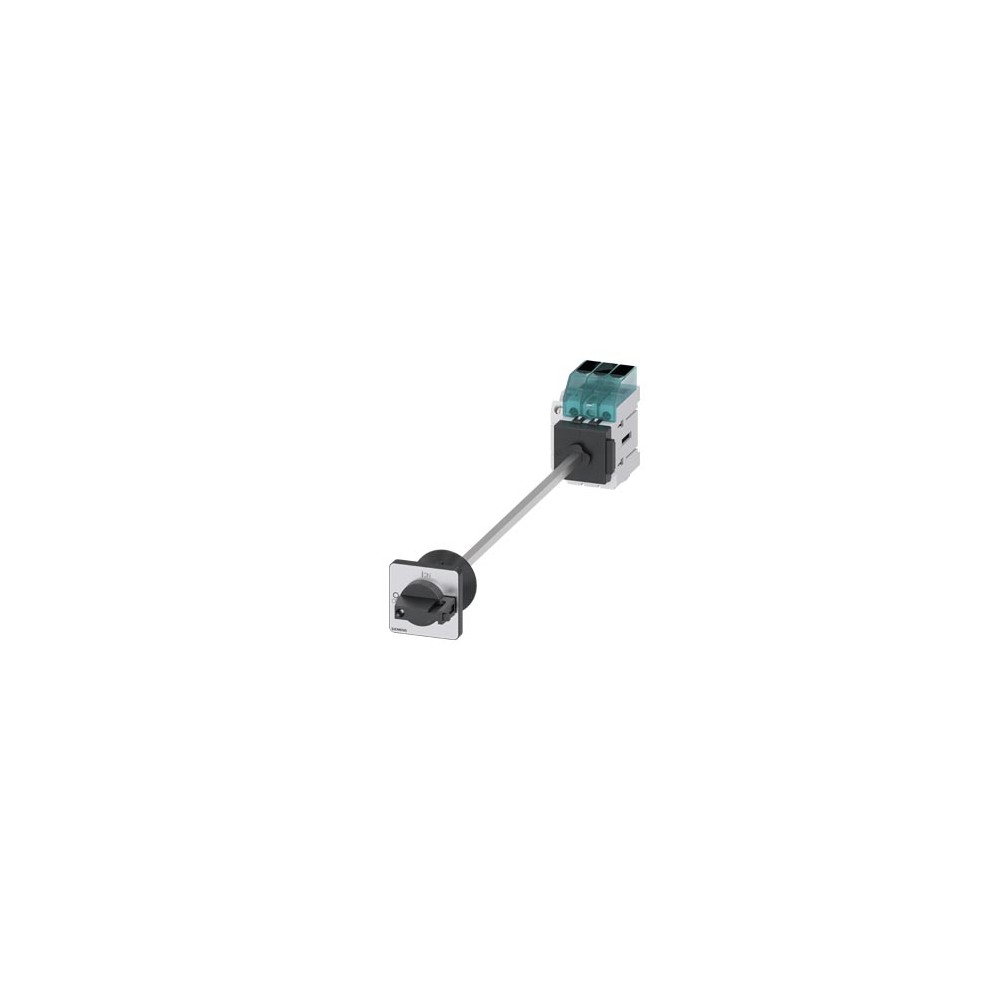

Siemens 3LD3240-1TK11

3LD3 switch disconnector, Iu 32 A main switch 3-pole rated operational power for AC-23 A at 400 V 11.5 kW floor mounting basic switch with door coupling center-hole mounting 22.5 mm knob-operated mechanism black 48x48 mm with auxiliary switches 1 NO + 1 NC

Model
product brand name SENTRON
product designation Switch disconnector
design of the product Main switch
display version for switch position indicator manual operation 1 ON - 0 OFF
type of switch Floor mounting with door coupling
design of the actuating element selector switch
color of the actuating element black
design of handle knob-operated mechanism, black
type of the driving mechanism motor drive No
General technical data
number of poles 3
number of poles note 3
mechanical service life (operating cycles) typical 100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V 6 000
operating frequency maximum 50 1/h
degree of pollution 3
Voltage
insulation voltage rated value 690 V
surge voltage resistance rated value 6 kV
operating voltage
● at AC rated value 690 V
operating frequency rated value
● minimum 50 Hz
● maximum 60 Hz
Protection class
protection class IP IP65
degree of protection NEMA rating 1, 3R, 4X, 12
protection class IP on the front IP65
