5SD7411-2

Condition: New product

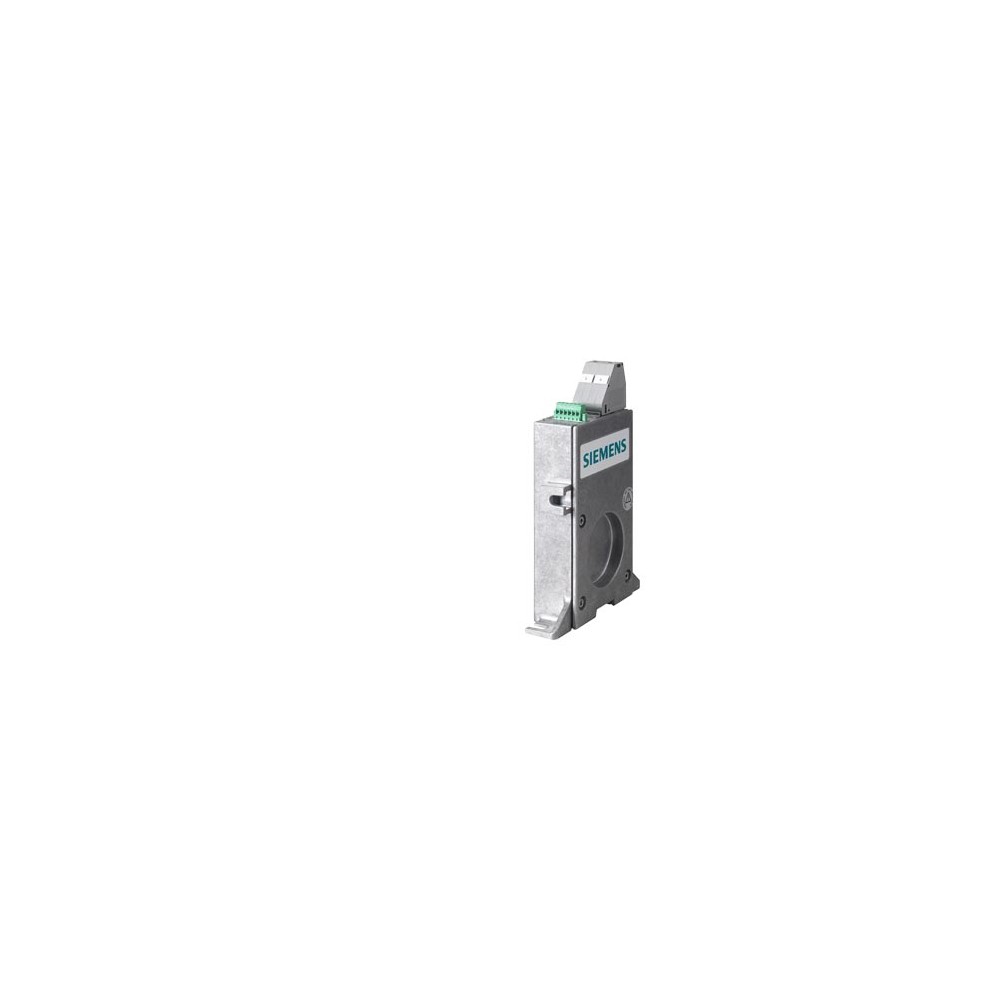

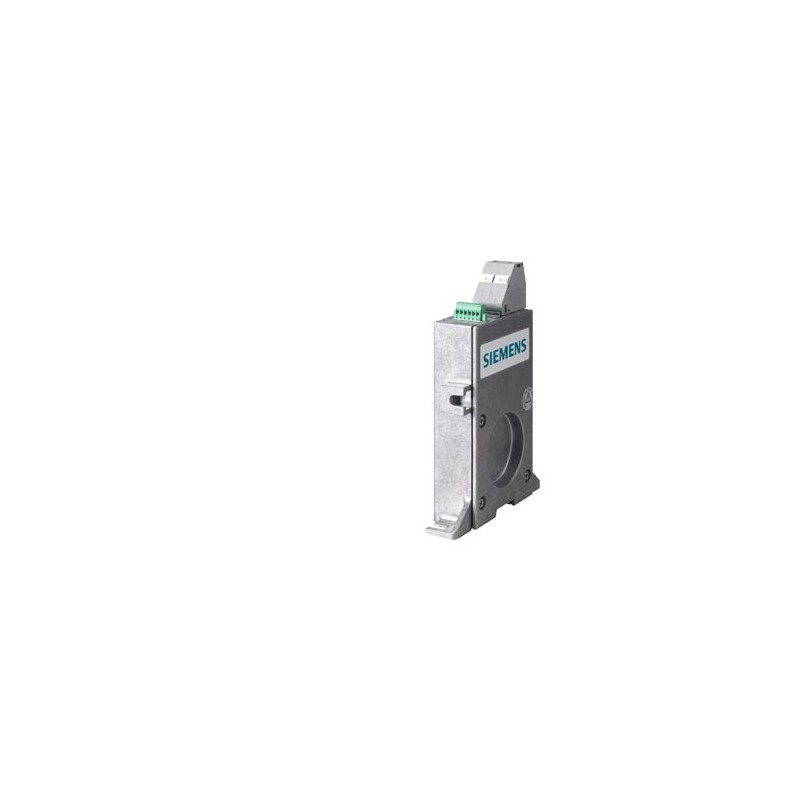

Siemens 5SD7411-2

lightning arrester type 1, 1-pole, for 2-wire networks (L, pen), Uc 800 V AC, with remote signaling, no modular installation device

General data
standard		IEC 61643-11: 2011, EN 61643-11: 2012
product designation		Surge protection device
SPD classification according to EN 61643-11
● Test Class I, Type 1		Yes
● Test Class II, Type 2		Yes
● Test Class III, Type 3		No
number of SPD ports		1
design of the product		Combination surge arresters
design of pole		1
designation of the protective paths		L-PE
fastening method		TH35 DIN rail
material of the enclosure		Aluminum, salt water-resistant
degree of pollution		3
overvoltage category according to IEC 61010-1		IV (600V), III (1000V)
protection class IP at connection all terminals		IP20
relative humidity during operation		5 ... 95 %
installation altitude at height above sea level maximum		4 000 m
width		56 mm
height		191 mm
depth		280 mm
