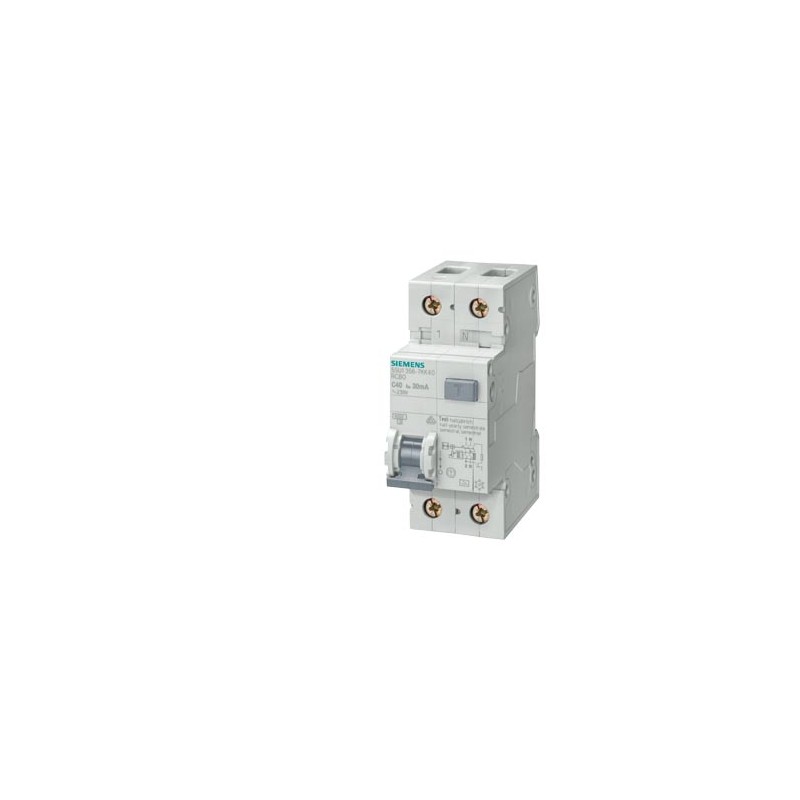

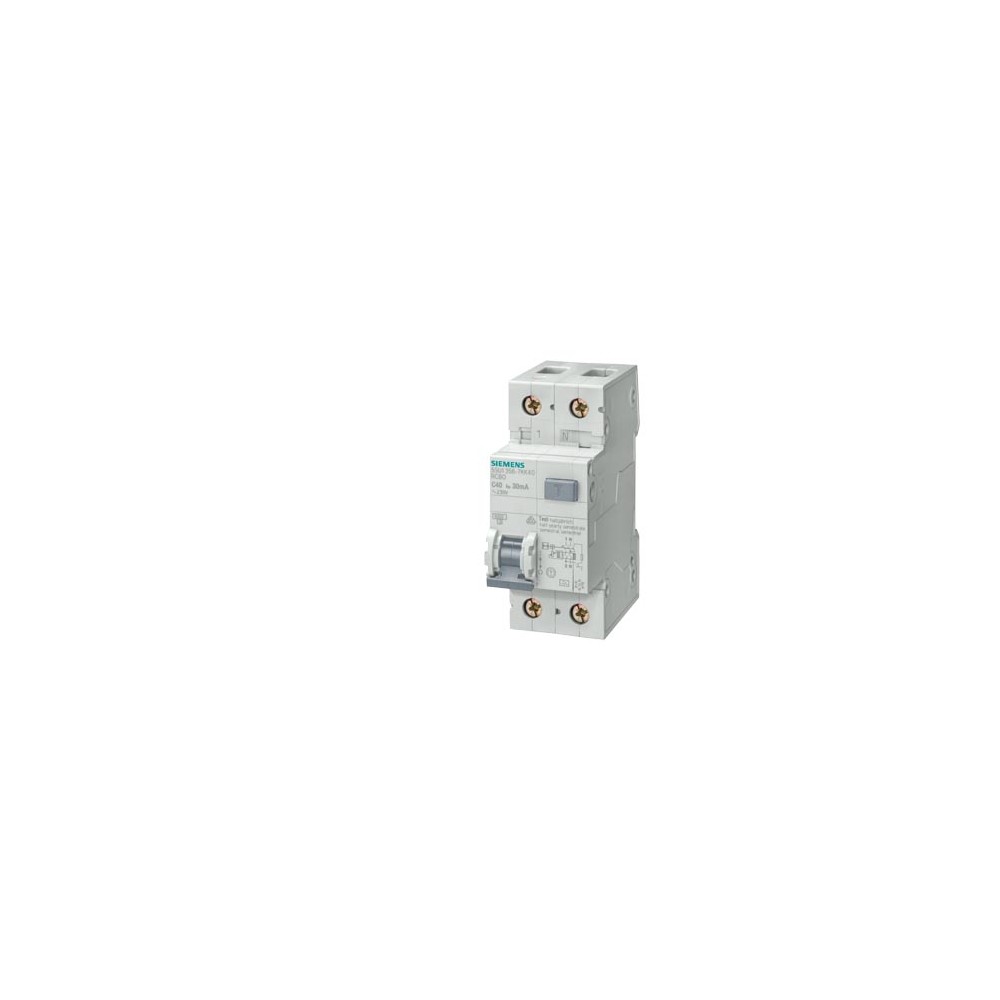

Siemens 5SU1656-6KK25

RCBO, 6 kA, 1P+N, type A, 300 mA, B char., In: 25 A, Un AC: 230 V

Model
product brand name SENTRON
product designation RCBO
design of the product Instantaneous
General technical data
number of poles 2
number of poles with protection 1
design of pole 1P+N
tripping characteristic class B
mechanical service life (operating cycles) typical 10 000
overvoltage category 3
degree of pollution 2
Voltage
type of voltage of the operating voltage AC
insulation voltage (Ui) rated value 264 V
surge voltage resistance rated value 4 000 V
surge current resistance at (8/20) µs 1 kA
tripping fault current rated value 300 mA

● operational current
— at 30 °C rated value 25 A
— at 40 °C rated value 23.5 A
— at 45 °C rated value 22.75 A
— at 50 °C rated value 21.75 A
— at 55 °C rated value 20.25 A
— at 60 °C rated value 20.25 A
— at 65 °C rated value 19.25 A
— at 70 °C rated value 18.25 A
● operational current at AC rated value 25 A
residual current type A
Supply voltage
supply voltage
● at AC rated value 230/240 V
● for testing equipment minimum 100 V
operating frequency 50 Hz
supply voltage frequency rated value 50 Hz
Protection class
protection class IP IP20, if the distribution board is installed, with connected conductors
