5SV3647-6KK01

Condition: New product

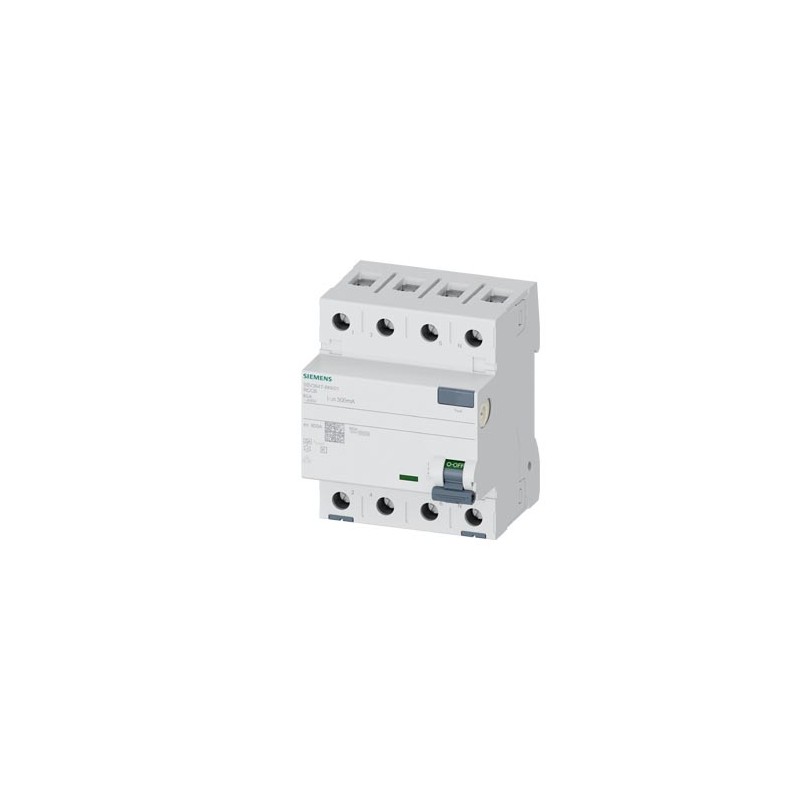

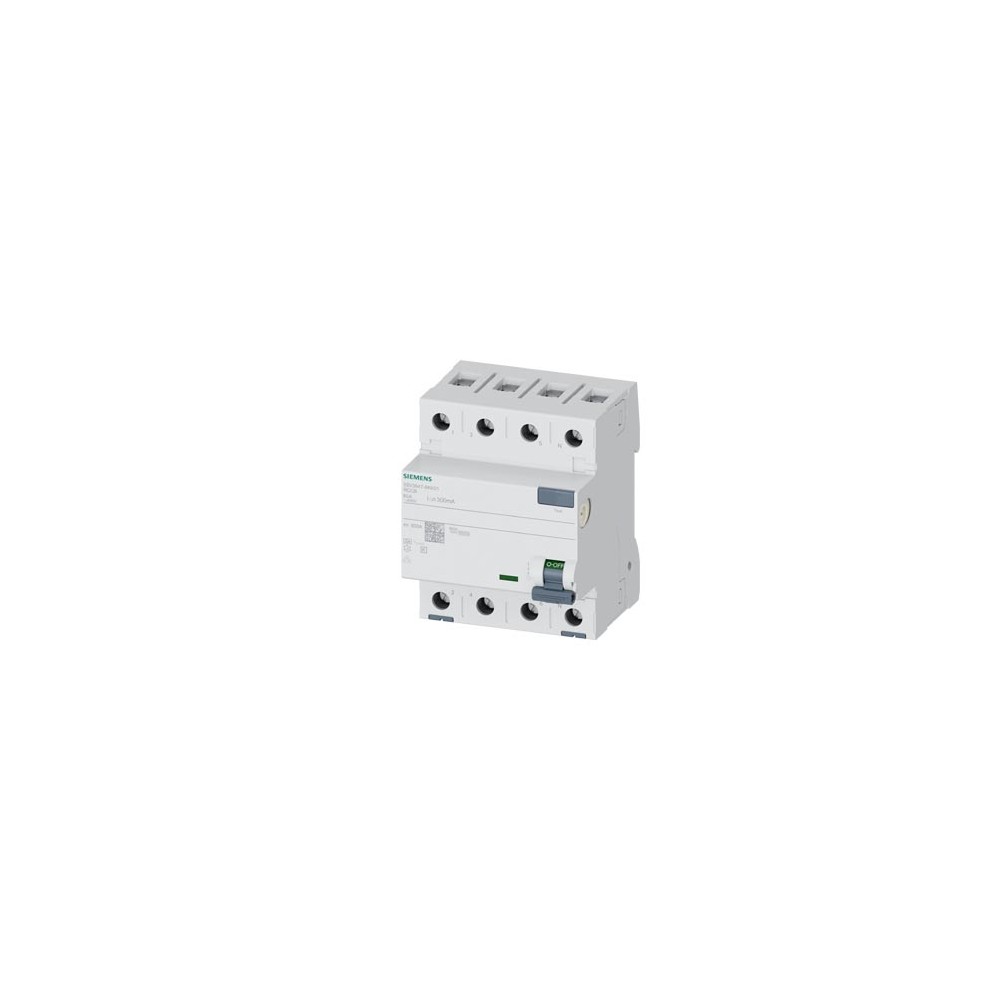

Siemens 5SV3647-6KK01

Residual current operated circuit breaker, 4-pole, type A, short-time delayed, In: 80 A, 300 mA, Un AC: 400 V

Model
product brand name		SENTRON
product designation		Residual current operated circuit breaker
design of the product		Short-time delayed
product type designation		5SV3
General technical data
number of poles		4
size of installation devices according to DIN 43880		1
mechanical service life (operating cycles) typical		10 000
short-circuit current of series fuse maximum permissible		100 A
short-circuit current rating		10 kA
switching function short-term delayed		Yes
degree of pollution		2
insulation voltage (Ui) rated value		2 000 V
tripping fault current rated value		300 mA
let-through current permissible		7 100 A
I2t value permissible		110 000 A²·s
Supply voltage
supply voltage for testing equipment minimum		100 V
value range of the supply voltage frequency		50 Hz
value range of the operating frequency		50/60 Hz
value range of the supply voltage at AC		230/400 V
Protection class
protection class IP		IP20, if the distribution board is installed, with connected conductors
