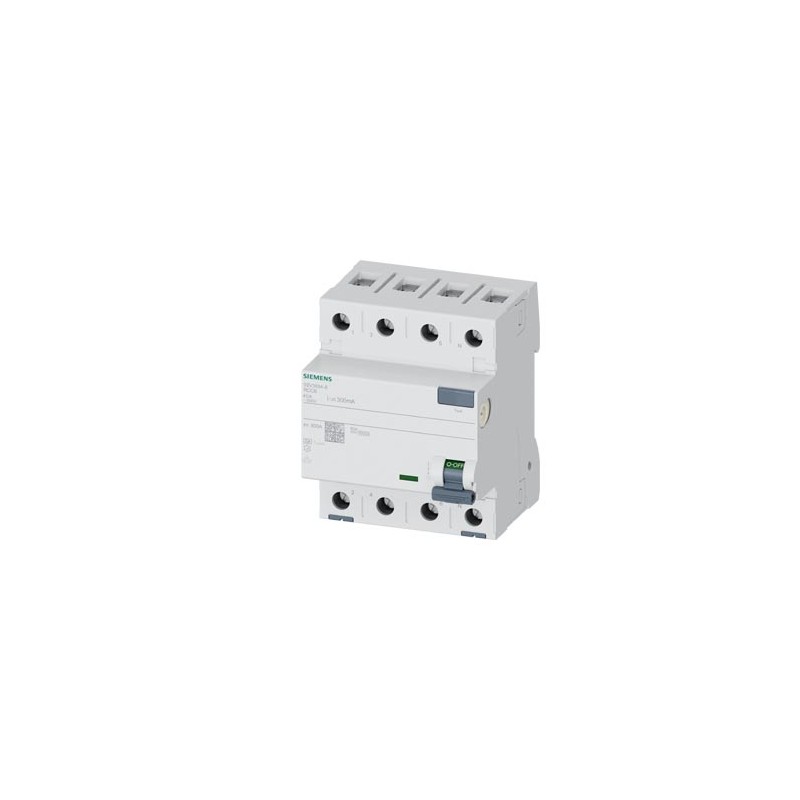

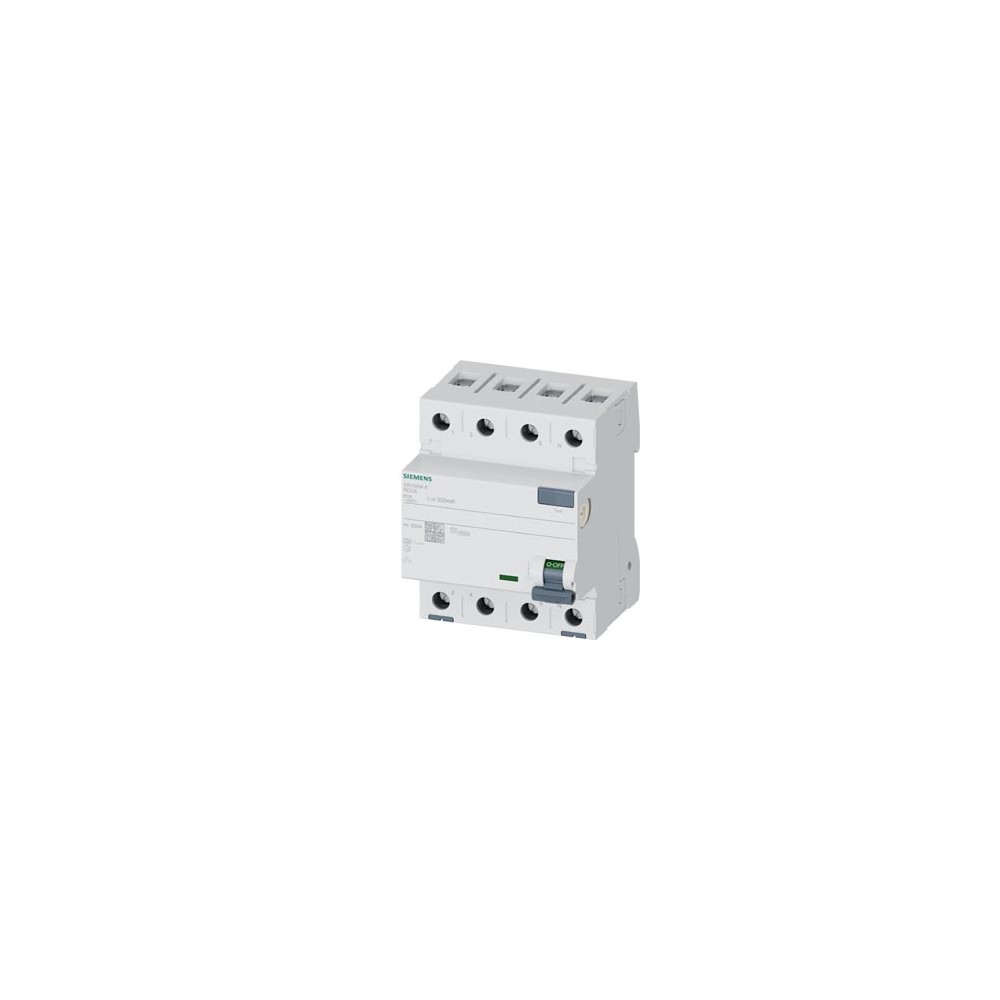

Siemens 5SV3654-6

Residual current operated circuit breaker, 4-pole, type A, In: 40 A, 300 mA, Un AC: 500 V

Model
product brand name SENTRON
product designation Residual current operated circuit breaker
design of the product Instantaneous
product type designation 5SV3
General technical data
number of poles 4
size of installation devices according to DIN 43880 1
mechanical service life (operating cycles) typical 10 000
short-circuit current of series fuse maximum permissible 63 A
short-circuit current rating 10 kA
switching function short-term delayed No
degree of pollution 2
insulation voltage (Ui) rated value 2 000 V
tripping fault current rated value 300 mA
let-through current permissible 5 200 A
I2t value permissible 58 000 A²·s
Supply voltage
supply voltage for testing equipment minimum 100 V
value range of the supply voltage frequency 50 Hz
value range of the operating frequency 50 Hz
value range of the supply voltage at AC 500 V
Protection class
protection class IP IP20, if the distribution board is installed, with connected conductors
