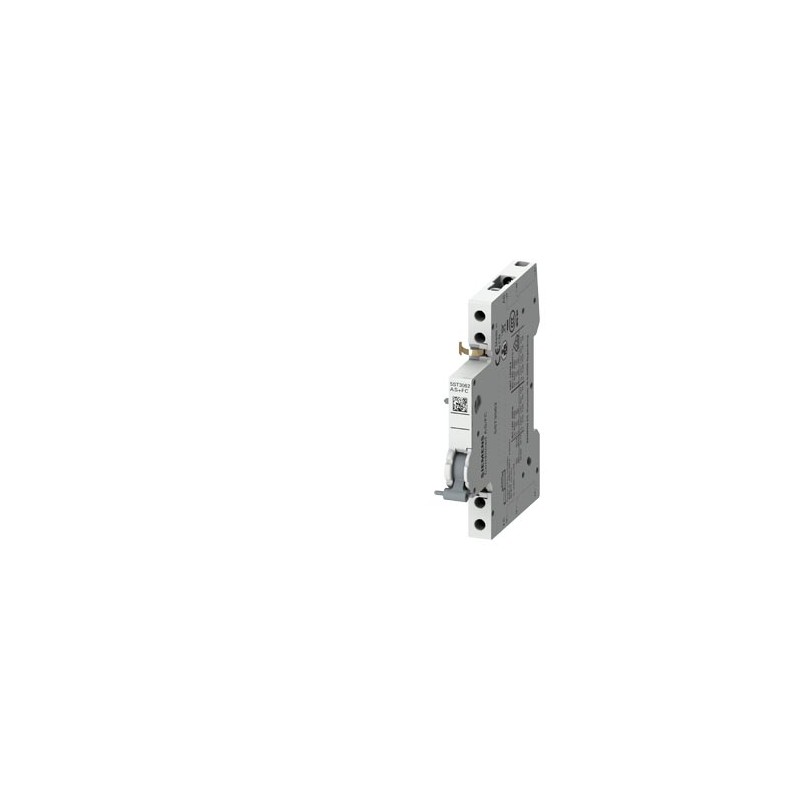

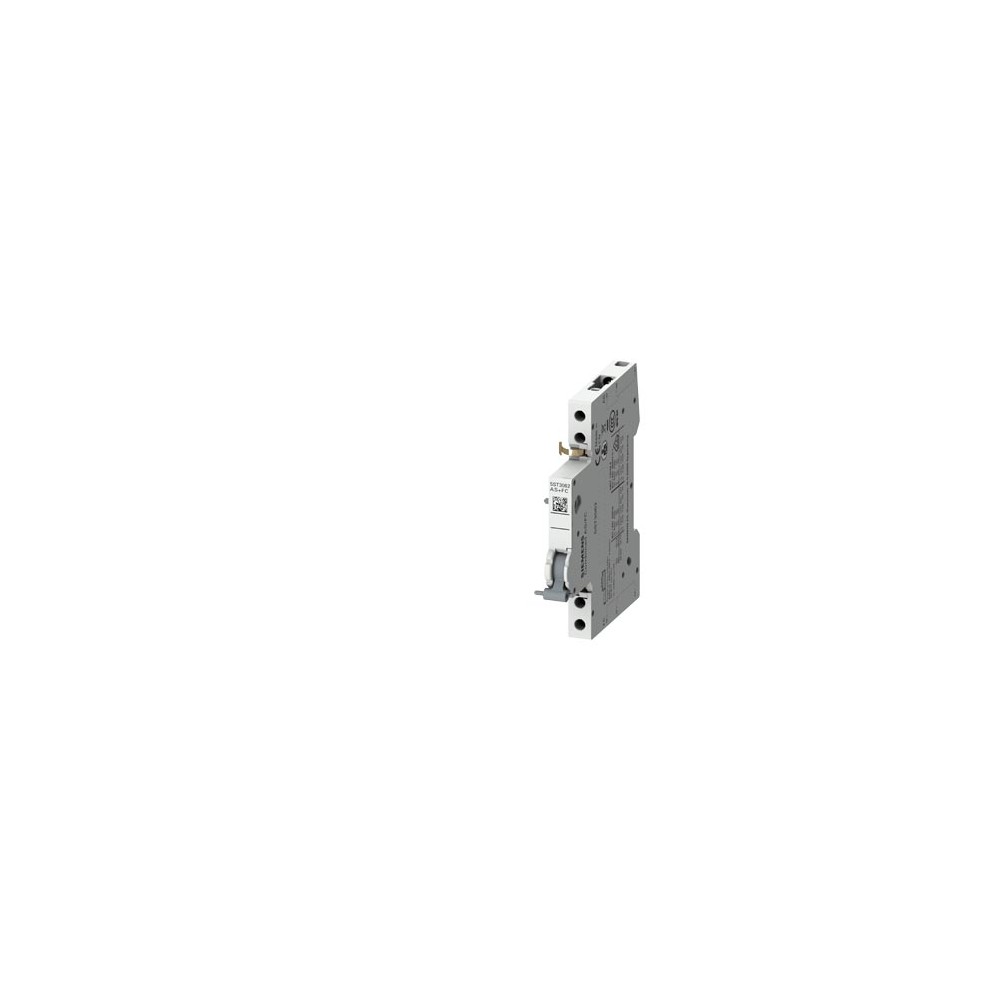

Siemens 5ST3062

Auxiliary switch changeover contact and Fault signal contact changeover contact 0.5 MW 230/400 V AC 24-220 V DC for 5SY, 5SL for 5SP, 5SV, 5SU1, 5ST3

Model
product brand name SENTRON
product designation Auxiliary switch and fault signal contact
design of the product Mountable
design of the product factory mounted No
electrical endurance (operating cycles) typical 10 000
Voltage
insulation voltage rated value 440 V
surge voltage resistance rated value 4 kV
Current
operational current at DC rated value 0.05 A
Supply voltage
operating voltage
● rated value 230 V
● at AC rated value minimum 24 V
● at AC rated value maximum 440 V
● at DC rated value minimum 24 V
● at DC rated value maximum 110 V
protection class IP IP20
Breaking Capacity
switching capacity current rated value 6 A
Control current
type of voltage of control voltage AC/DC
