5SJ4101-7HG41
New

5SJ4101-7HG41

New product

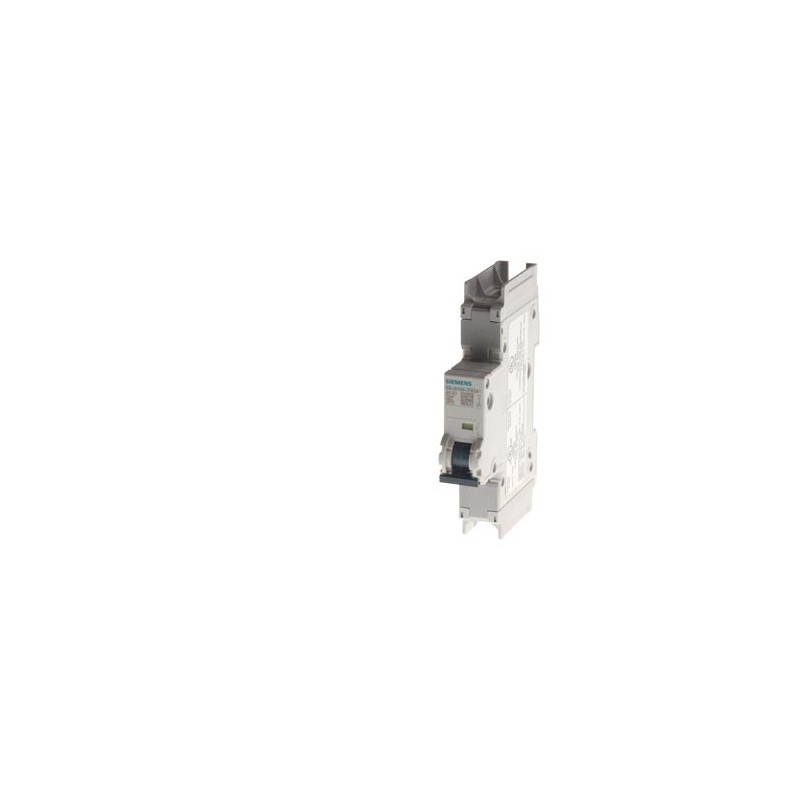

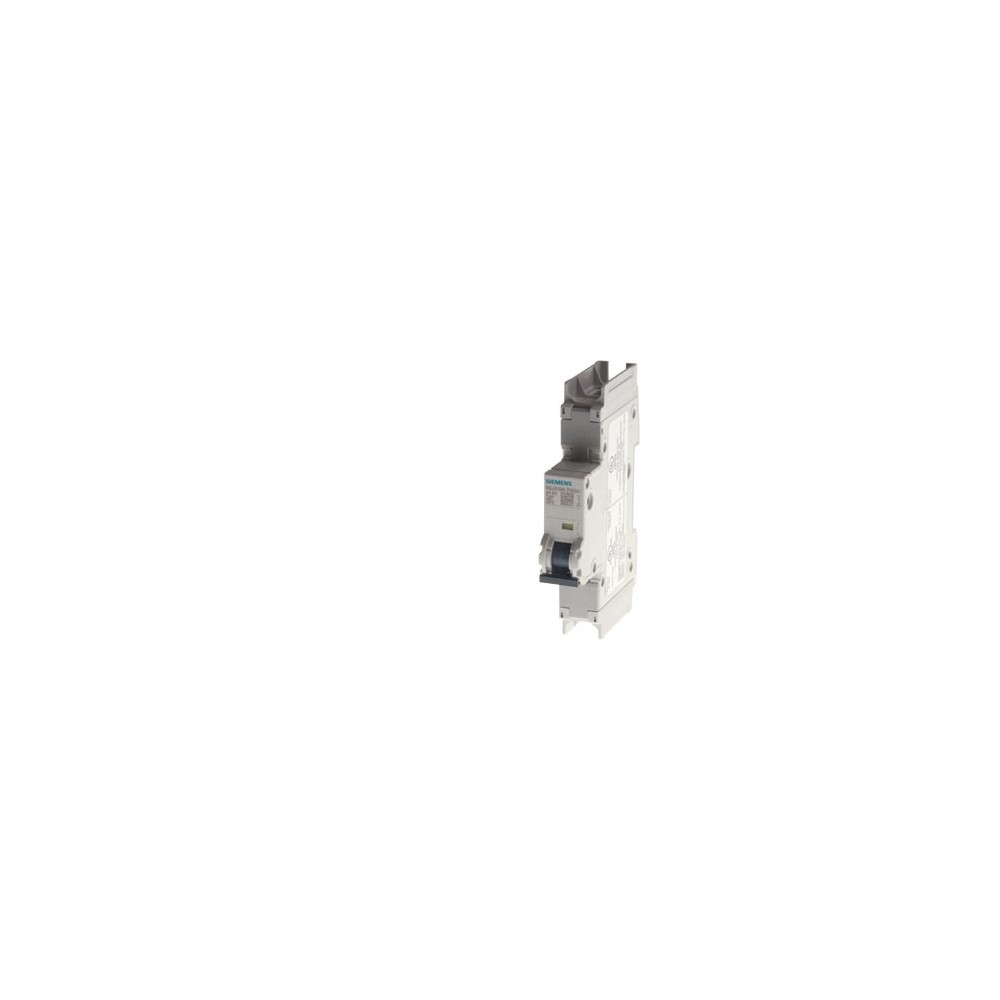

Siemens 5SJ4101-7HG41

Miniature circuit breaker 240 V 14kA, 1-pole, C, 1A, D=70 mm according to UL 489

Model
product brand name SENTRON
product designation Miniature circuit breakers
design of the product Miniature circuit-breaker 5SJ4
General technical data
number of poles 1
design of pole 1P
tripping characteristic class C
mechanical service life (operating cycles) typical 10 000
installation environment regarding EMC Suitable for environment B (immunity to interference not applicable)
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750 F
overvoltage category 3
degree of pollution 3
Voltage
insulation voltage (Ui) at AC rated value 440 V

● operational current
— at 30 °C rated value 1 A
— at 40 °C rated value 1 A
— at 50 °C rated value 0.9 A
— at 55 °C rated value 0.9 A
— at 60 °C rated value 0.84 A
● operational current at AC rated value 1 A
Supply voltage
supply voltage
● at AC 400 V
● at DC rated value 60 V
operating voltage
● at AC according to UL 489 and CSA C22.2 No. 5-02 maximum 240 V
● at DC rated value maximum 60 V
● at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum 60 V
● at DC 2-channel according to UL 489 and CSA C22.2 No. 5-02 maximum 125 V
supply voltage frequency rated value 50 Hz
Protection class
protection class IP IP 0 in the handle range
