3VJ1110-5EA42-0AA0
New product

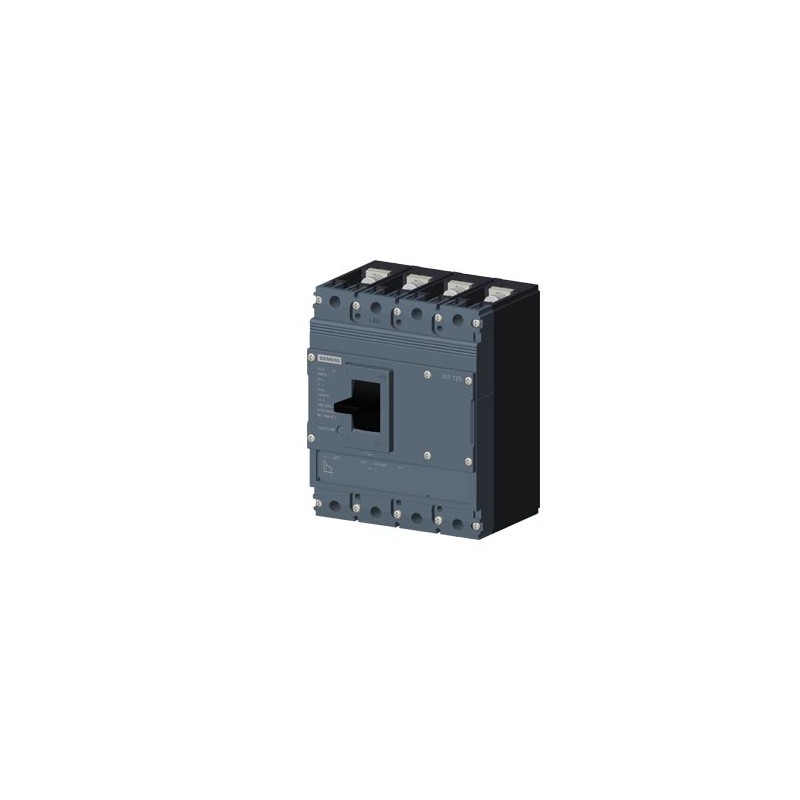

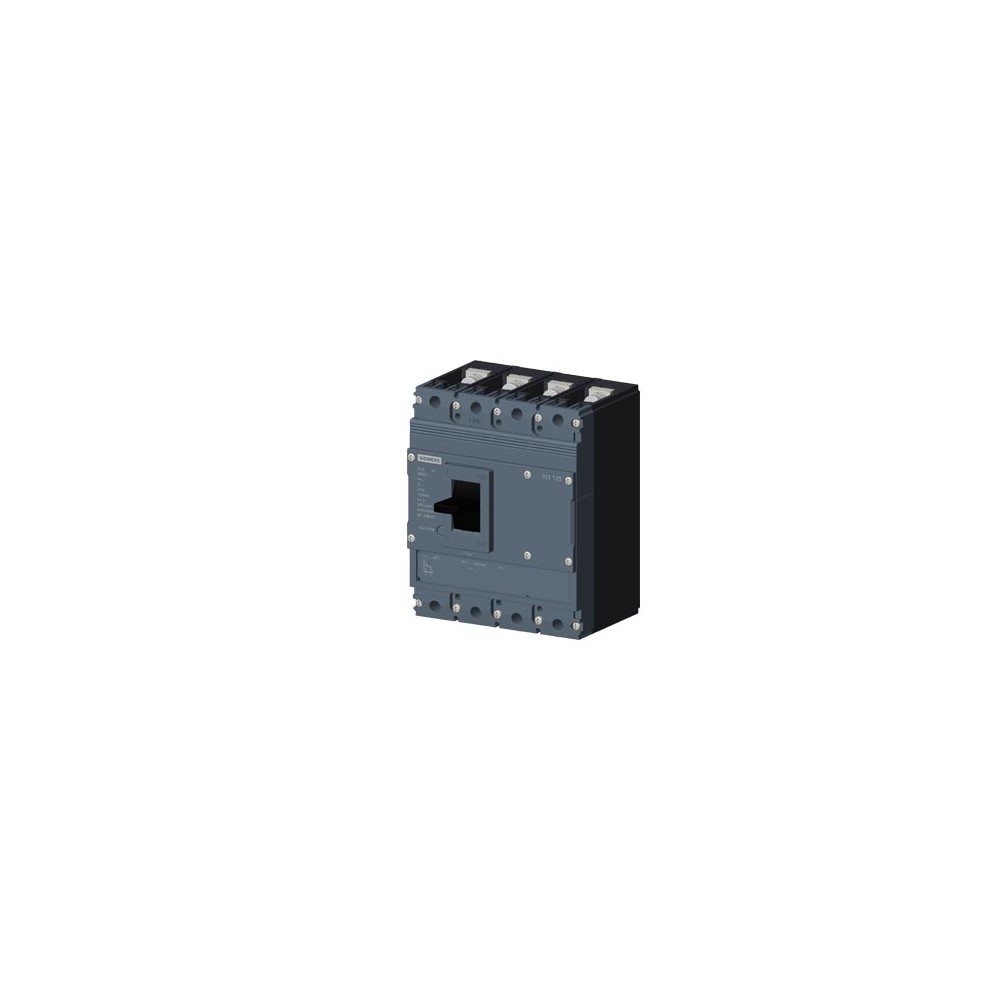

Siemens 3VJ1110-5EA42-0AA0
circuit breaker 3VJ1 IEC framesize 3VJ11 125A line protection FTFM 4-pole Icu=36kA@415V Ics=75% Icu In=100A overload protection Ir=100A short-circuit protection Ii=10 x In Screw connection
| Model | ||
| product designation | Molded Case Circuit Breaker | |
| design of the product | Line protection | |
| design of the overcurrent release | FTFM | |
| protection function of the overcurrent release | LI | |
| number of poles | 4 | |
| General technical data | ||
| insulation voltage / rated value | 1 000 V | |
| operating voltage / at AC / rated value | 415 V | |
| power loss [W] / maximum | 42 W | |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 10.5 W | |
| mechanical service life (operating cycles) / typical | 15 000 | |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 5 000 | |
| ground-fault monitoring version | without | |
| Net Weight | 1.82 kg | |
| Current | ||
| continuous current / rated value | 100 A | |
| operational current | ||
| ● at 40 °C | 100 A | |
| ● at 45 °C | 100 A | |
| ● at 50 °C | 100 A | |
| ● at 55 °C | 97.2 A | |
| ● at 60 °C | 94.4 A | |
| Switching capacity according to IEC 60947 | ||
| maximum short-circuit current breaking capacity (Icu) | ||
| ● at 415 V | 36 kA | |
| operating short-circuit current breaking capacity (Ics) | ||
| ● at 415 V | 27 kA | |
| short-circuit current making capacity (Icm) | ||
| ● at 415 V | 75.6 kA | |
| Adjustable parameters | ||
| adjustable current response value current / of the current-dependent overload release | 100 ... 100 A | |
| adjustable current response value current / of instantaneous short-circuit trip unit | ||
| ● minimum | 1 000 A | |
| ● maximum | 1 000 A | |
| design of the N-conductor protection | 1 | |
| product function / grounding protection | No | |
| Mechanical Design | ||
| product component | ||
| ● undervoltage release | No | |
| ● trip indicator | No | |
| height | 150 mm | |
| width | 122 mm | |
| depth | 85 mm | |
| Connections | ||
| arrangement of electrical connectors / for main current circuit | Front connection | |
| type of electrical connection / for main current circuit | Lug connection line and load side | |
| Accessories | ||
| product extension / optional / motor drive | No | |
| Environmental conditions | ||
| protection class IP / on the front | IP42 | |
| ambient temperature | ||
| ● during operation / minimum | -10 °C | |
| ● during operation / maximum | 60 °C | |
| ● during storage / minimum | -15 °C | |
| ● during storage / maximum | 75 °C | |
