3VM1180-3ED12-0AA0

Condition: New product

More info

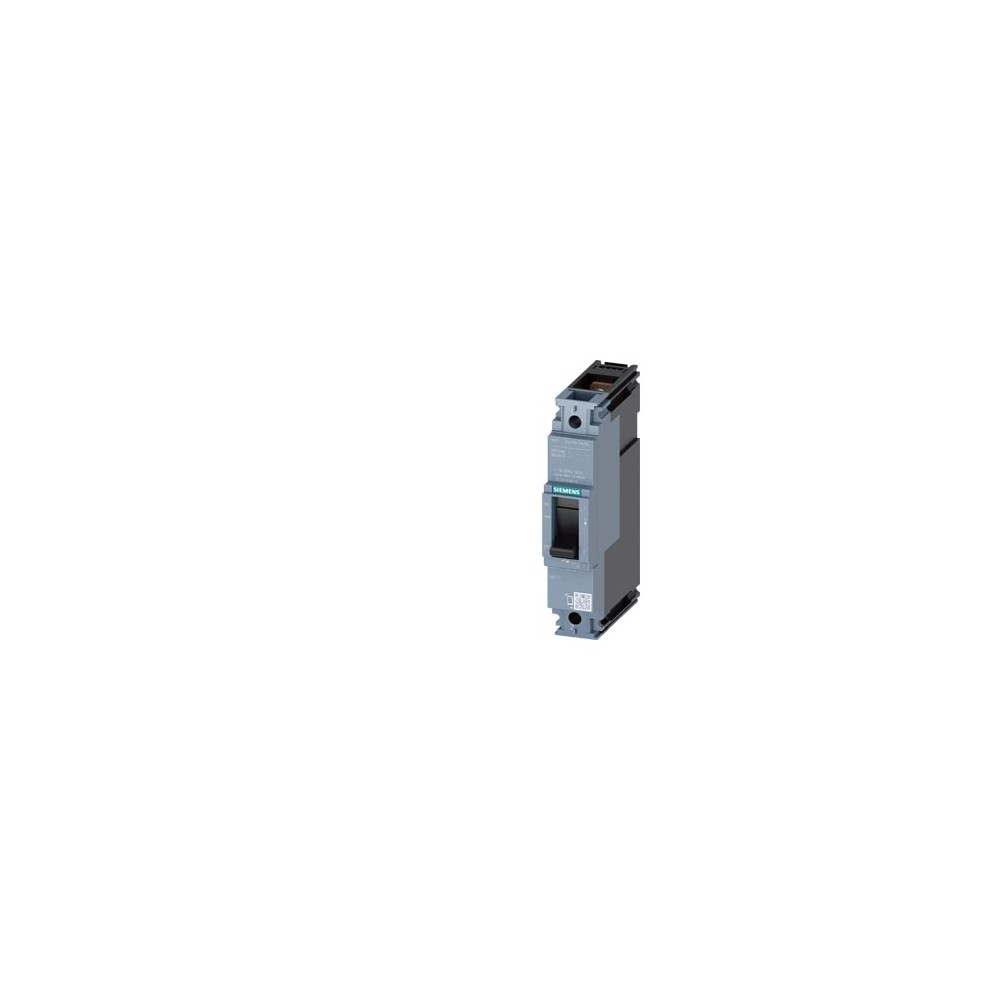

Siemens 3VM1180-3ED12-0AA0

circuit breaker 3VM1 IEC frame 160 breaking capacity class N Icu=25kA @ 240V 1-pole, line protection TM210, FTFM, In=80A overload protection Ir=80A, not adjustable short-circuit protection Ii=10 x In nut keeper kit (for products not manufactured in China, only CE and EEQCO Scheme-X certifications are available)

Model
product brand name		SENTRON
product designation		Molded case circuit breaker
design of the product		Line protection
design of the overcurrent release		TM210
protection function of the overcurrent release		LI
number of poles		1
General technical data
insulation voltage / rated value		500 V
operating voltage / at AC / at 50/60 Hz / rated value		415 V
operating voltage / at DC / rated value		125 V
operating voltage / at AC / rated value		415 V
power loss [W] / maximum		6 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole		6.4 W
mechanical service life (operating cycles) / typical		15 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V		6 000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof		No
ground-fault monitoring version		Without
product function
● communication function		No
● other measurement function		No
Net Weight		370 g
Current
operational current
● at 40 °C		80 A
● at 45 °C		80 A
● at 50 °C		80 A
● at 55 °C		78 A
● at 60 °C		77 A
● at 65 °C		75 A
● at 70 °C		74 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breaker		N
maximum short-circuit current breaking capacity (Icu)
● at 240 V		25 kA
● at 415 V		5 kA
operating short-circuit current breaking capacity (Ics)
● at 240 V		18 kA
● at 415 V		3 kA
short-circuit current making capacity (Icm)
● at 240 V		53 kA
● at 415 V		8 kA
design of short-circuit protection		For switching capacity values in DC power systems, see the 3VA Molded Case Circuit Breaker Manual; link available under Service & Support in the last chapter
Adjustable parameters
product feature / for L-tripping / can be switched on/off		No
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic
● minimum		80 A
● maximum		80 A
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic
● minimum		1 s
● maximum		1 s
adjustable response value setting current (Ii) / for I-tripping
● minimum		800 A
● maximum		800 A
adjustable setting current (InN) / for N-tripping
● minimum		0 A
● maximum		0 A
adjustable current response value current / of instantaneous short-circuit trip unit
● maximum		800 A
product function / grounding protection		No
Mechanical Design
product component
● undervoltage release		No
● voltage trigger		No
● trip indicator		No
height [in]		5.12 in
height		130 mm
width [in]		1 in
width		25.4 mm
depth [in]		2.76 in
depth		70 mm
Connections
arrangement of electrical connectors / for main current circuit		Front connection
type of electrical connection / for main current circuit		nut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum		12 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum		17 x 6.5 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)		Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)		Tin
Auxiliary circuit
number of CO contacts / for auxiliary contacts		0
Accessories
product extension / optional / motor drive		No
Environmental conditions
protection class IP / on the front		IP40
ambient temperature
● during operation / minimum		-25 °C
● during operation / maximum		70 °C
● during storage / minimum		-40 °C
● during storage / maximum		80 °C
