3VA6225-6JQ41-0AA0

Condition: New product

More info

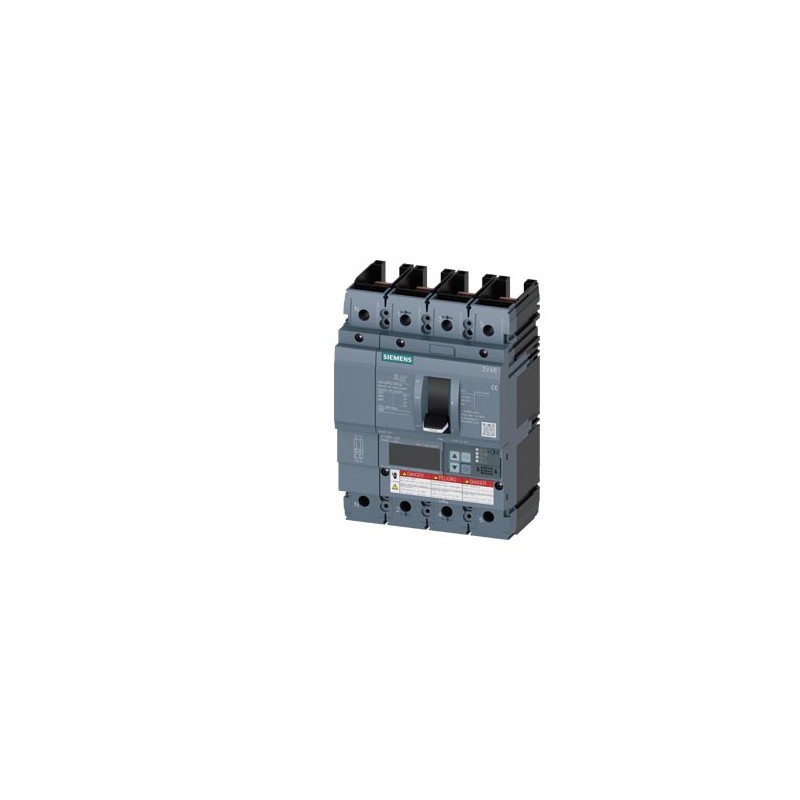

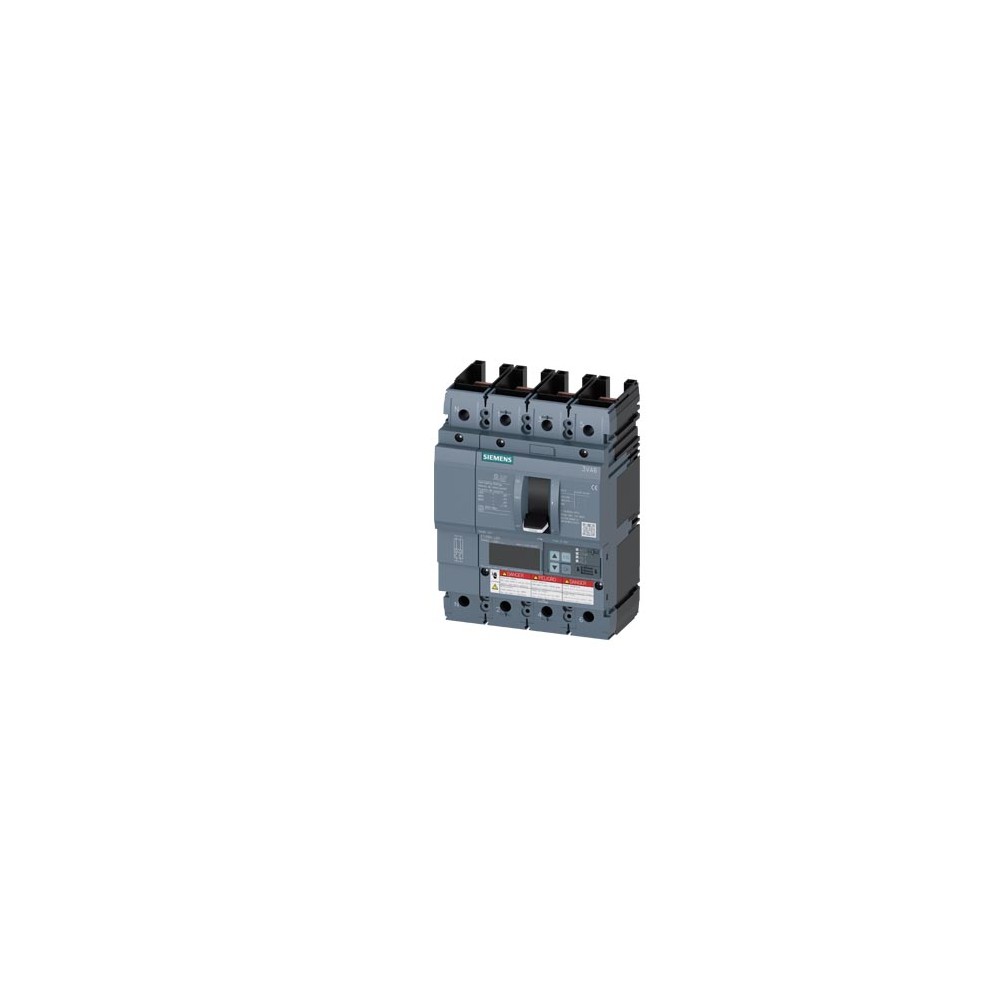

Siemens 3VA6225-6JQ41-0AA0

circuit breaker 3VA6 UL Frame 250 breaking capacity class H 65 kA @ 480 V 4-pole, line protection ETU560, LSIG, In=250 A overload protection Ir=100 A...250 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection adjustable (OFF, up to 100%) ground-fault protection Ig=0.2...1 x In= tg=0.05-0.8s without connection

Model
product brand name		SENTRON
product designation		Molded-case circuit breaker
product designation / according to UL file		HFAE
design of the product		System protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)		Yes
design of the overcurrent release		ETU560
protection function of the overcurrent release		LSIG
number of poles		4
General technical data
insulation voltage / rated value		800 V
operating voltage / at AC / rated value		690 V
power loss [W] / maximum		42 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole		14 W
mechanical service life (operating cycles) / typical		25 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V		12 000
electrical endurance (operating cycles) / at AC-1 / at 690 V		8 400
electrical endurance (operating cycles) / at 480 V		12 000
electrical endurance (operating cycles) / at 600 V		8 400
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof		No
ground-fault monitoring version		Summation current formation L + N-conductor
product function
● communication function		Yes
● other measurement function		No
Net Weight		3.2 kg
Current
marking / according to UL 489 / 100%-rated breaker		No
operational current
● at 40 °C		250 A
● at 45 °C		250 A
● at 50 °C		250 A
● at 55 °C		238 A
● at 60 °C		225 A
● at 65 °C		213 A
● at 70 °C		200 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breaker		H
maximum short-circuit current breaking capacity (Icu)
● at 240 V		110 kA
● at 415 V		85 kA
● at 690 V		3 kA
operating short-circuit current breaking capacity (Ics)
● at 240 V		110 kA
● at 415 V		85 kA
● at 690 V		3 kA
short-circuit current making capacity (Icm)
● at 240 V		242 kA
● at 415 V		187 kA
● at 690 V		4.5 kA
Switching capacity according to UL 489
current breaking capacity
● at 240 V		100 kA
● at 480 V		65 kA
● at 600 V		22 kA
Adjustable parameters
adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic
● minimum		100 A
● maximum		250 A
adjustable response value delay time (tr) / for L-tripping / with I2t characteristic
● minimum		0.5 s
● maximum		13 s
adjustable response value setting current (Isd) / of S-trip / with I0t characteristic
● minimum		150 A
● maximum		2 500 A
adjustable response value setting current (Isd) / of S-trip / with I2t characteristic
● minimum		150 A
● maximum		2 500 A
adjustable response value delay time (tsd) / for S-tripping / with I0t characteristic
● minimum		0.05 s
● maximum		0.5 s
adjustable response value delay time (tsd) / for S-tripping / with I2t characteristic
● minimum		0.05 s
● maximum		0.5 s
adjustable response value setting current (Ii) / for I-tripping
● minimum		375 A
● maximum		2 500 A
adjustable current response value current / for G-tripping / with standard characteristic
● initial value		50 A
● full-scale value		250 A
adjustable response value delay time (tg) / for G-tripping / with I0t characteristic
● minimum		0.05 s
● maximum		0.8 s
adjustable response value setting current (Ig) / for G-tripping / with I2t characteristic
● minimum		50 A
● maximum		250 A
adjustable response value delay time (tg) / for G-tripping / with I2t characteristic
● minimum		0.05 s
● maximum		0.8 s
adjustable setting current (InN) / for N-tripping
● minimum		50 A
● maximum		250 A
design of the N-conductor protection		adjustable OFF; 20% to 100%
product function / grounding protection		Yes
Mechanical Design
product component
● undervoltage release		No
● voltage trigger		No
● trip indicator		No
height [in]		7.8 in
height		198 mm
width [in]		5.51 in
width		140 mm
depth [in]		3.39 in
depth		86 mm
Connections
arrangement of electrical connectors / for main current circuit		Without connection
type of electrical connection / for main current circuit		Without
Auxiliary circuit
number of CO contacts / for auxiliary contacts		0
Accessories
product extension / optional / motor drive		Yes
Environmental conditions
protection class IP / on the front		IP40
ambient temperature
● during operation / minimum		-25 °C
● during operation / maximum		70 °C
● during storage / minimum		-40 °C
● during storage / maximum		80 °C
