3LD2003-0TK51
New

3LD2003-0TK51

New product

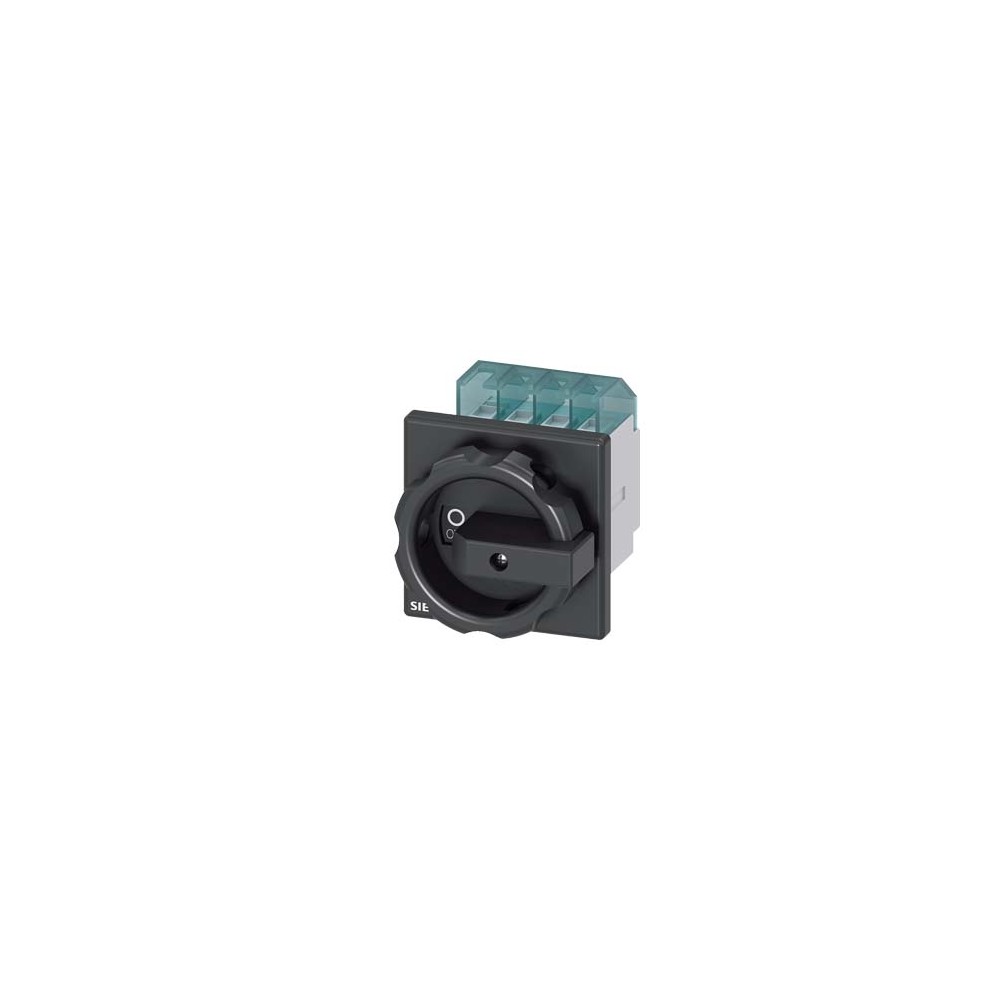

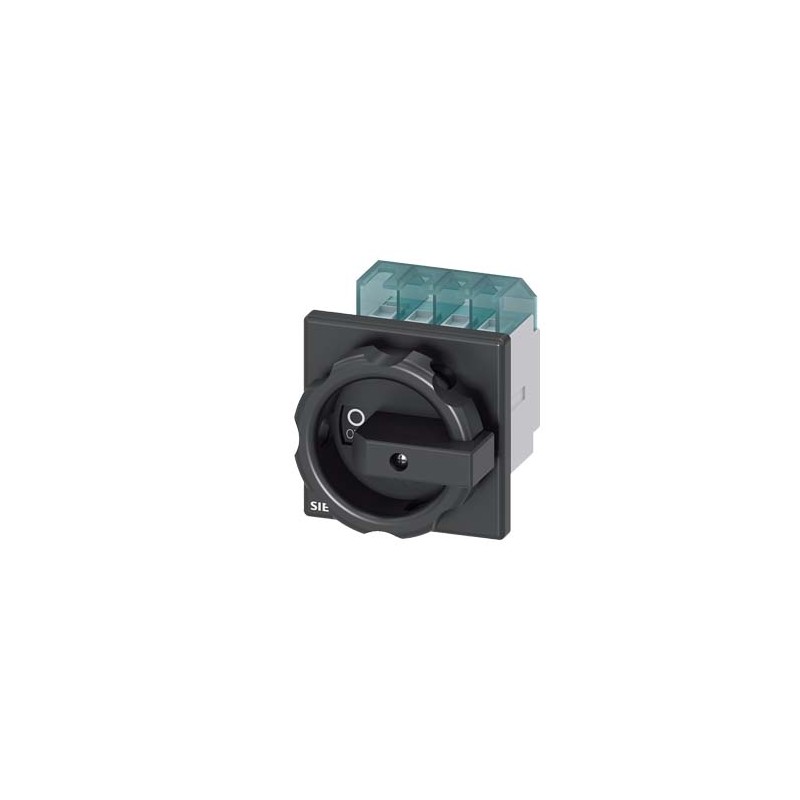

Siemens 3LD2003-0TK51

SENTRON, switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, operating power / at AC-23 A at 400 V: 7.5 kW, front-mounted, rotary operating mechanism, black, 4-hole mounting of the handle

Model
product brand name SENTRON
product designation Switch disconnector
design of the product Main switch
display version for switch position indicator manual operation 1 ON - 0 OFF
type of switch front mounted
design of the actuating element Short rotary knob
color of the actuating element black
design of handle rotary operating mechanism, black
type of the driving mechanism motor drive No
General technical data
number of poles 3
size of switch disconnector 1
mechanical service life (operating cycles) typical 100 000
electrical endurance (operating cycles)
● at AC-23 A at 690 V 6 000
operating frequency maximum 50 1/h
degree of pollution 3
Voltage
insulation voltage rated value 690 V
surge voltage resistance rated value 6 kV
operating voltage
● at AC rated value 690 V
operating frequency rated value
● minimum 50 Hz
● maximum 60 Hz
Protection class
protection class IP IP65
degree of protection NEMA rating 1, 3R, 4X, 12
protection class IP on the front IP65
