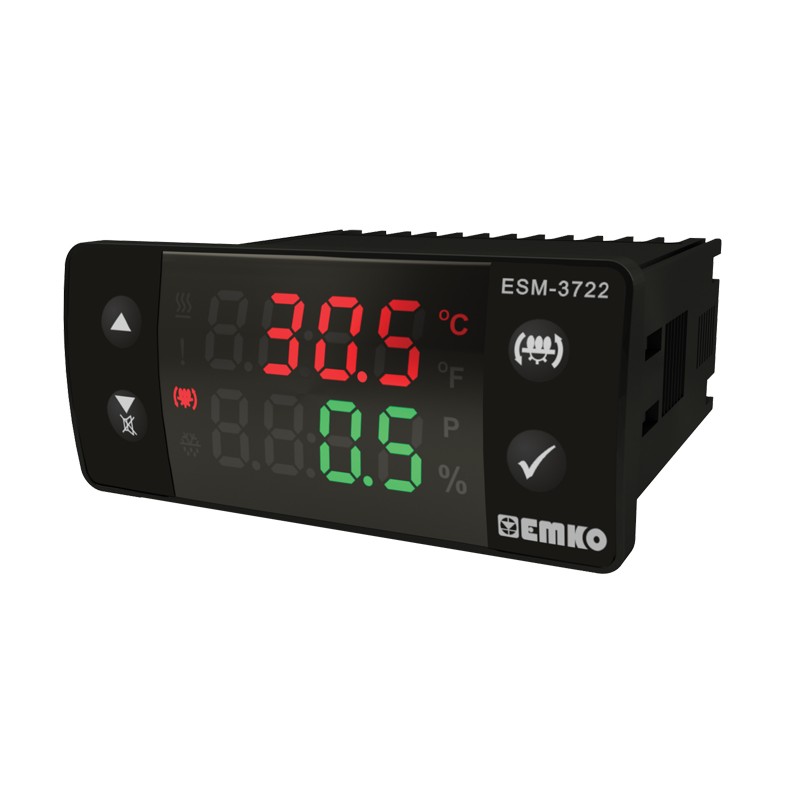

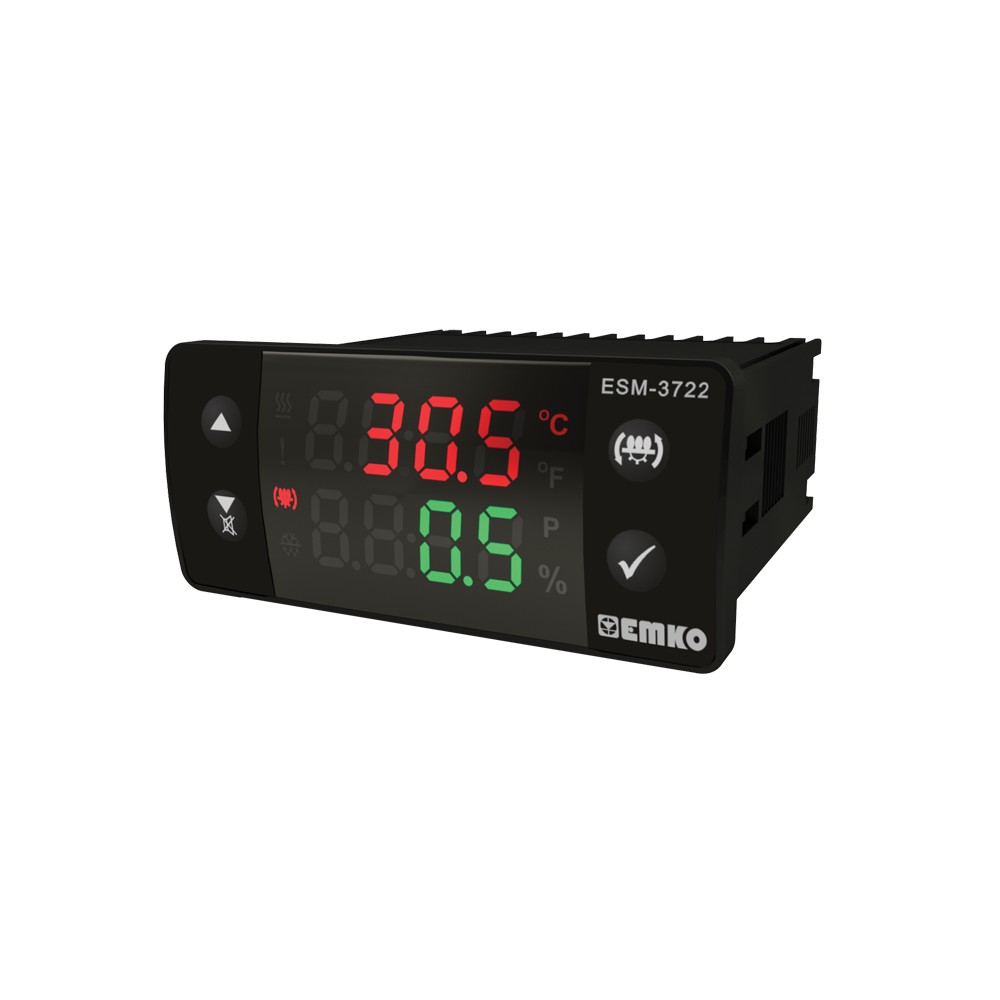

ESM-3722 Digital ON/OFF and PID Hatcher Controller

New product

ESM-3722
Digital ON/OFF and PID Hatcher Controller

ESM-3722 series Hatcher controllers are designed for controlling hatcher process.Device can be used easily with PID or On-Off control form and manual start of egg tray rotator

ESM-3722 egg incubator control

Emko ESM-3722 egg incubator, hatcher

Emko ESM-3722 egg incubator, hatcher

Emko ESM-3722 egg incubator, hatcher
Emko ESM-3722 Eierinkubator, Brüterei

Emko ESM-3722, Incubatore per uova, incubatoio
Emko ESM-3722, Incubadora de huevos , incubadora

Emko ESM-3722 Яичный инкубатор, выводной шкаф

Emko ESM-3722 incubateur d'œufs, écloserie

Emko ESM-3722 kuluçka makinası, kuluçka cihazı

Emko ESM-3722 hatcher controller,
Schlüpfer,couvoir,incubadora, Hatcher,

Emko ESM-3722,conrad,elfadistrelec,rs components,elfa,distrelec,fruugo

Emko ESM-3722 egg incubator hatcher controller,Eierinkubator,Brüterei,Incubatore per uova,incubatoio,Incubadora de huevos,incubadora,Яичный инкубатор,выводной шкаф, incubateur d'œufs, écloserie

Display and Front Panel
ButtonsSet, direction and manual start of egg tray rotator operation buttons
Led IndicatorsAlarm, heating output, egg tray rotator output, humidifier output, program leds
Display8 mm Red 4 digits, 8 mm Green 4 digits LED display
Body
Physical Features76 mm x 34,5 mm x 71 mm
Protection ClassNEMA 4X (IP65 at front, IP20 at rear)
WeightApproximately 0.2 Kg.
InstallationFixed Installation
Electrical Features
Supply Voltage and Power

230 V ~ (+%15) 50/60 Hz. 1.5 VA
115 V ~ (+%15) 50/60 Hz. 1.5 VA
24 V ~ (+%15) 50/60 Hz. 1.5 VA
24 Vac/dc ~ (+%15, +%10) 50/60 Hz. 1.5 VA
10-30Vdc 1,5 W

Sensor Inputs

ProNem Mini PMI-P, NTC, PTC, RTD

ScaleProNem Mini PMI-P -20℃ / 80℃
PT 100 0℃...100℃
NTC      0℃...100℃
PTC      0℃...100℃
Accuracy± % 1 of full scale

Outputs
Relay Output5A@250 V~ at resistive load (heating output)
 3A@250 V~ at resistive load (humidificating,alarm and egg tray rotator outputs)
Control
Hysteresis

1 to 10 for humidity sensor (0%RH, 100%RH)
1 to 10 for ProNem Mini PMI-P (-20, 80)
1 to 10 for NTC,PTC,PT-100 (0, 100)

Control FormPID or On / Off
Quality Standarts
ApprovalsGOST-R, CE
