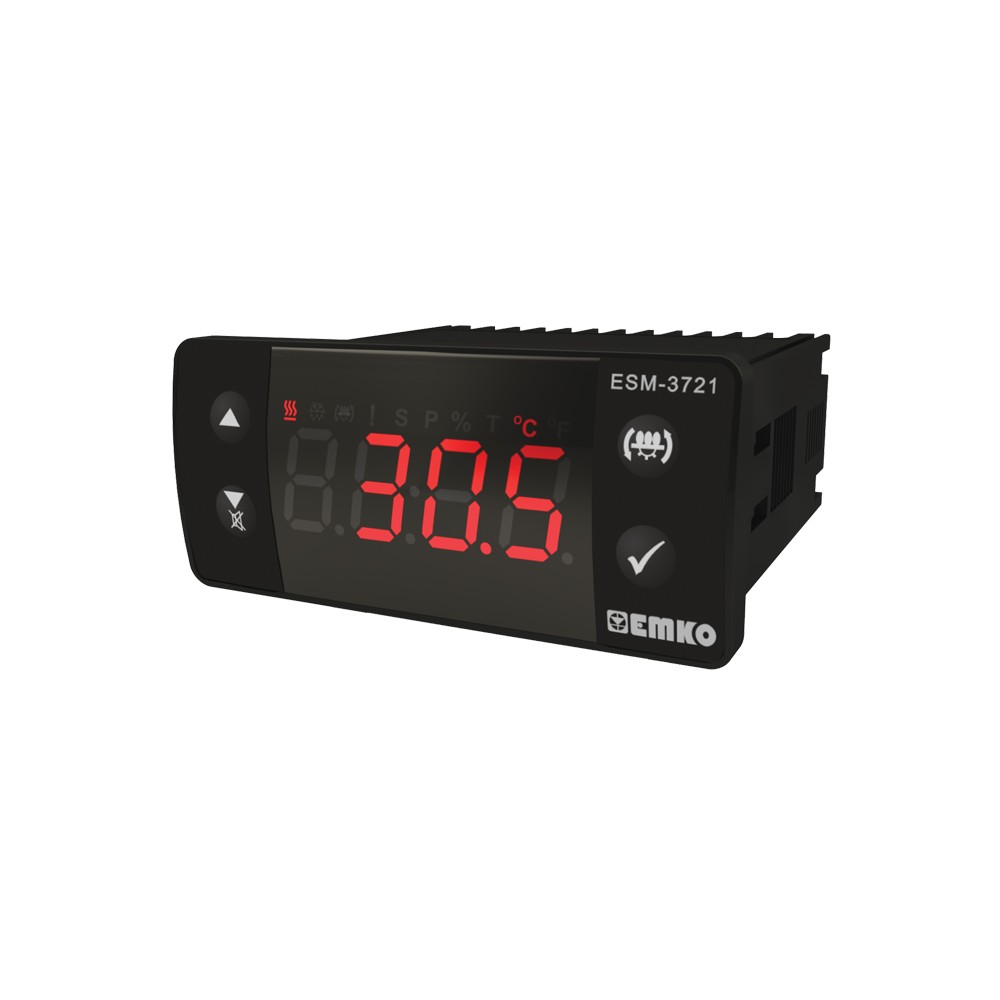

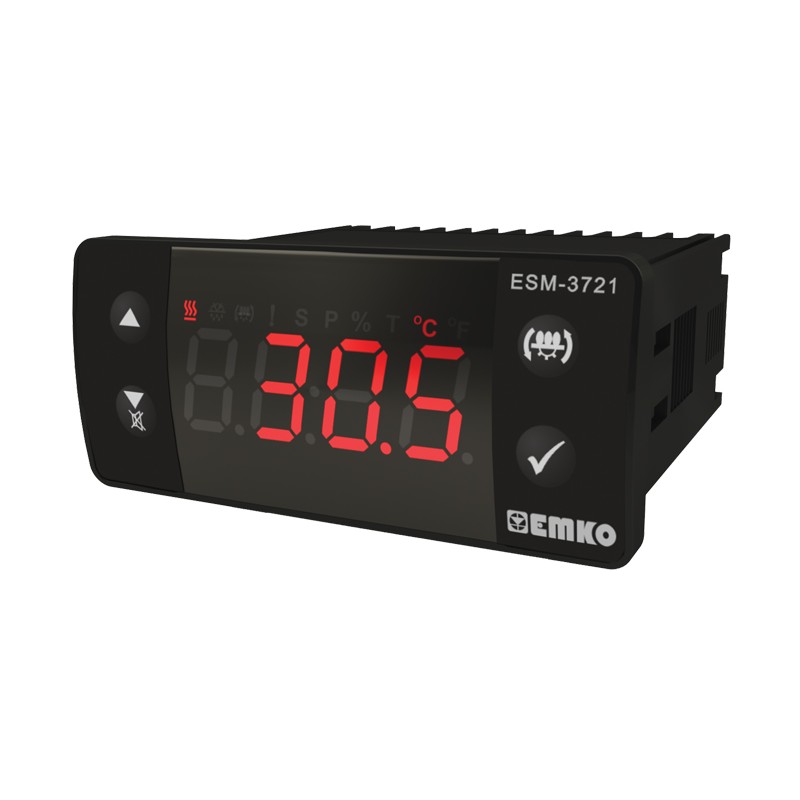

ESM-3721 Digital ON/OFF and PID Incubator / Hatcher Controller
New product
ESM-3721
Digital ON/OFF and PID Incubator / Hatcher Controller
ESM-3721 4 Digit Display PTC Input Heating Control Output Egg tray rotator Output Alarm Control Output Selectable Temperature Control (ON/OFF and PID) Auto-Tune PID Manual Start of tray rotator from front panel
| Display and Front Panel | |
| Buttons | SetP, direction and Manual Start of Egg Tray Rotator Operetion buttons |
| Led Indicators | Heating,Humidifier,Egg tray rotator,Alarm,Set,Program,Auto tune,Celcius,Fahrenheit |
| Display | 14 mm Red 4 digit LED Display |
| Body | |
| Physical Features | 76 mm x 34,5 mm x 71 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.2 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (%15) 50/60 Hz. 1.5 VA 115 V ~ (%15) 50/60 Hz. 1.5 VA 10-30Vdc 1.5 W |
| Sensor Input | PTC PTC(1000 @.25 ℃) |
| Scale | PTC 0℃...100℃ / 0.0℃...100.0℃ , 32°F...212°F / 32.0°F...212.0°F |
| Accuracy | ± % 1 of full scale for Thermoresistance |
| Outputs | |
| Relay Outputs | 5A@250 V~ at resistive load (Heating Output) |
| 3A@250 V~ at resistive load (Alarm and Egg tray rotator Output) | |
| Control | |
| Hysteresis | 1 to 10℃ for PTC (0℃,100℃) 1 to 18F for PTC (32℃F,212°F) |
| Control Form | On / Off and PID |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | GOST-R, CE |
