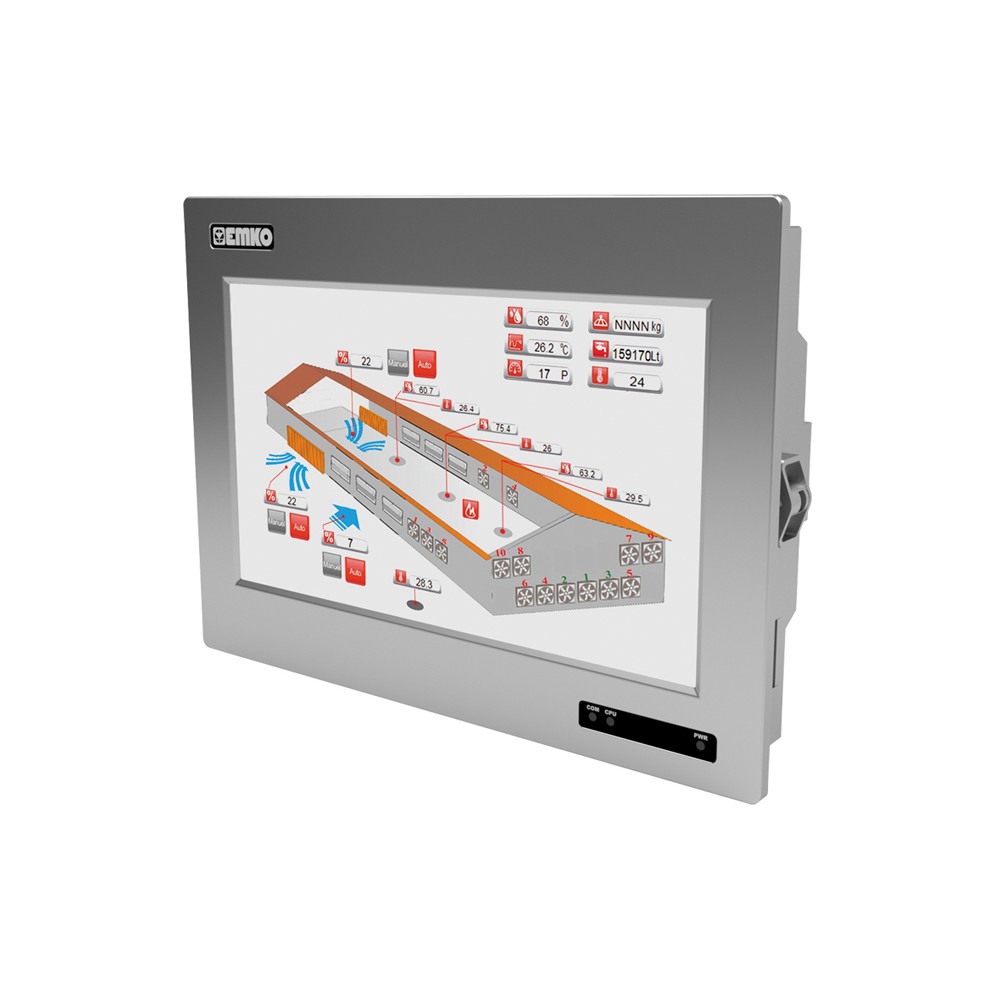

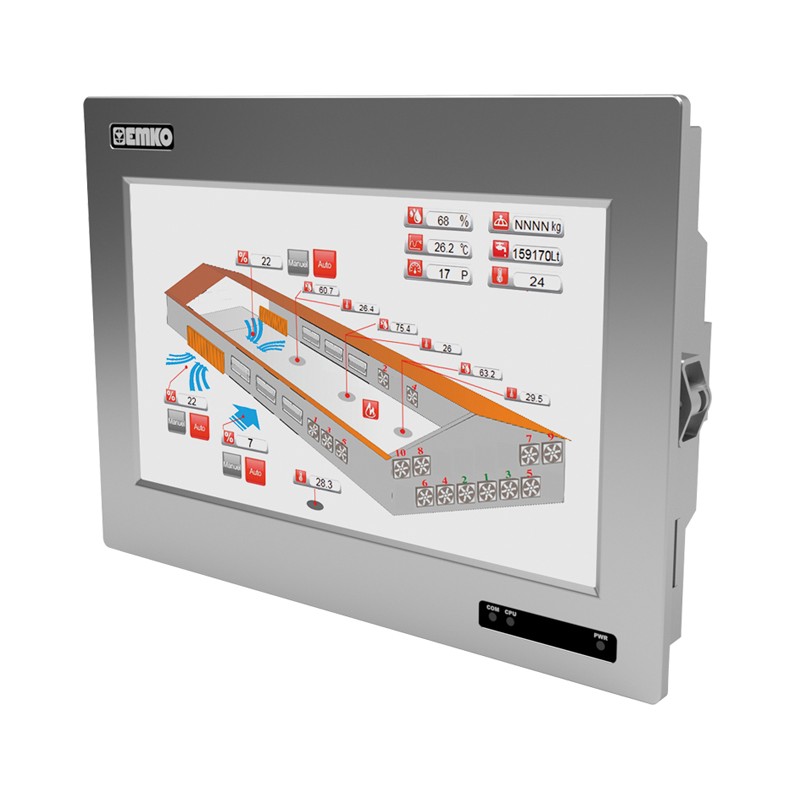

EPC-T10 Poultry House Controllers

New product

EPC-T10
Poultry House Controllers

Easy Access to Control Process for : Layer ; Egg production Broiler ; Chicken production for excellent quality meat Breeder ; Mother and father growth for broiler and layer

Device Type : Poultry Controller

Physical Properties : Control Card : 280x100 mm

HMI : 278 X 200 mm

Weight : HMI : 1300 G, Control Card : 616 g.

Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.

Storage Temperature /  Operating Temperature : -20ºC to +60ºC

Storage Humidity / Operating Humidty : 90% max. (none condensing)

Installation : Fixed installation.

Over-voltage Category : II.

Pollution Degree : II. Office or workplace, non conductive pollution.

Operating Conditions : Continuous

Device Supply Voltage and Power :

18 VAC (-%15 / +%10) 50/60 Hz. 25 VA

24 VDC (-%15 / +%10) 20 W     (for HMI + 1 pc. Control Card)

Temperature Sensor Inputs :  PT-100 (IEC751)(ITS90), 0-10 V, 0-20 mA

Accuracy :  ± %0,25 of full scale

Sensor Break Protection : Upscale

Sampling Time : 600 ms

Input Resistance : for Pt100 input time >10MOhm

for 0-10 V input time 17 kOhm

for 0-20 mA input time 470 Ohm

Outputs :  Relay, 0-20 mA or 0-10 V Analog Output

Analog Output : 0-20mA, 0-10V (maximum 3 mA)

Relay Output : Resistive Load 10A@250VAC

(Electrical Life : 50.000 operation-Full Load)

Standard Communication : RS-232 (Modbus RTU)

Optional Communication : 10Mbits/s Ethernet (Modbus RTU Over TCP/IP-Modbus RTU TCP/IP)

'1500 VAC isolated'

Display :  1024 X 600 pixel TFT

Approvals : CE, EAC
