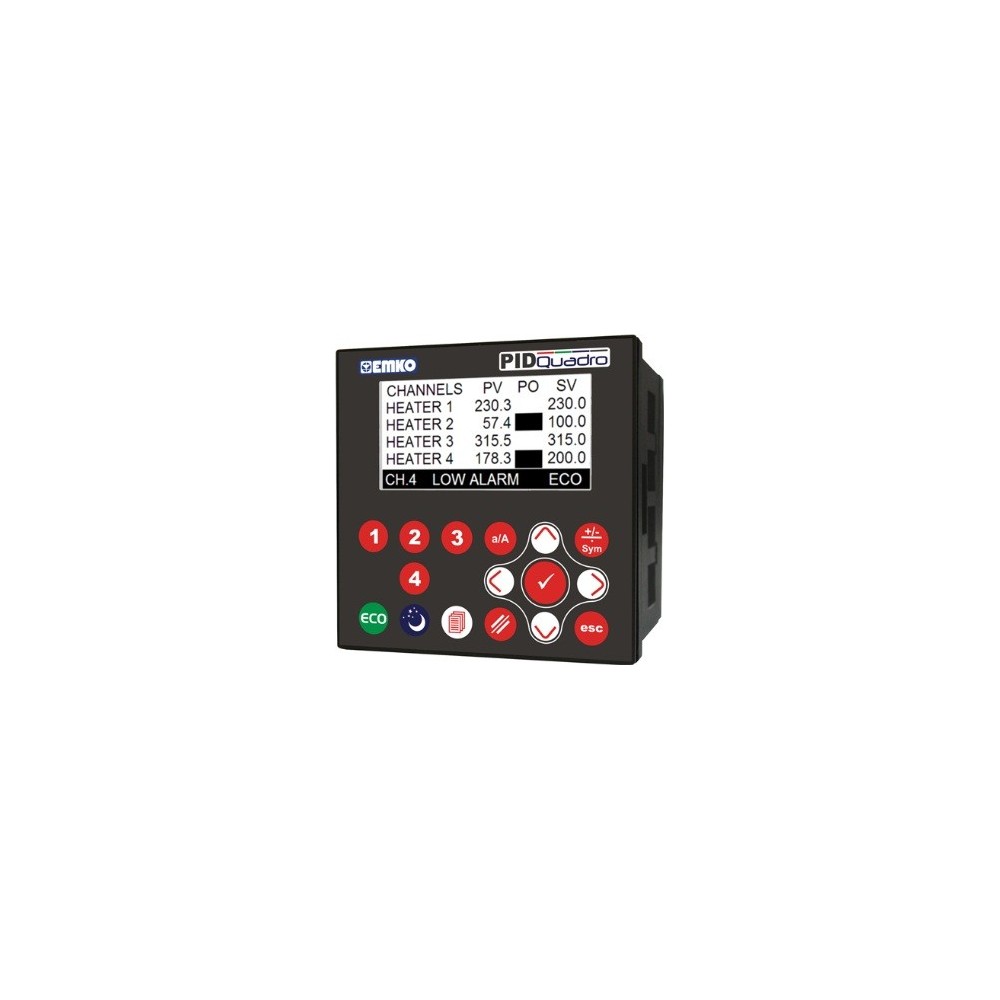

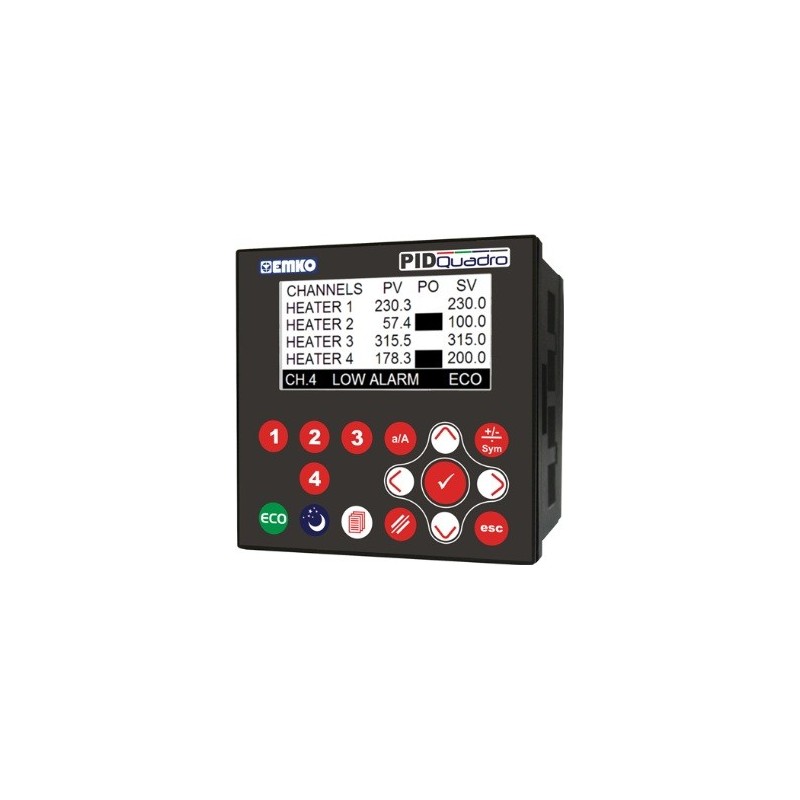

PID QUADRO
4 Channel PID Controller
EPLC9600-PID QUADRO series 4 channel PID controller devices are designed for measuring, controlling and logging temperatures of 4 different area. They can be used in many applications with their TC process input, multifunction PID control outputs, alarm outputs, selectable alarm functions, RS-232 / RS-485 / Ethernet / USB communications. Application Fields Glass, Plastic, Petro-Chemistry, Textile, Automative, Machine production industries. Applications Heating, Baking Ovens, Incubators Storages, Air Conditioning
| Display and Front Panel | |
| Buttons | Function and direction buttons |
| Gösterge | 128 X 64 pixel graphic LCD |
| Body | |
| Physical Features | 96 mm x 96 mm 96 mm |
| Protection Class | NEMA 4X ( IP65 at front , IP20 at rear) |
| Weight | Appx. 0,40kgs |
| Installation | Fixed installation |
| Electrical Features | |
| Supply Voltage and Power | 100 - 240 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA 24 V DC (-%15 / +%10 ) 7 W |
| Sensor Inputs | THERMOCOUPLE J ,K, R ,S (IEC584.1)(ITS90), L (DIN43710)PT-100 (IEC751)(ITS90) PT-100 (IEC751)(ITS90) |
| Scale | -100℃...1700℃ for TC, -200℃...650℃ for PT-100 |
| Accuracy | ± % 0,25 of full scale |
| Communication | |
| Standard Communication | RS-232 (Modbus RTU) |
| Optional Communication | RS-485 (Modbus RTU) "500V ~ isolation" Ethernet (Modbus RTU Over TCP ve Modbus RTU TCP) "1500V ~isolation" USB 2.0 (Data loggin into the flash drive.) |
| Outputs | |
| Relay Outputs | 5A@250 V~ at resistive load |
| Transistor Outputs | PNP (source) type transistor output ( Max. 1A @24VDC ) |
| Control | |
| Control Form | PID |
| Reading Frequency | 1400 ms |
| Quality Standards | |
| Approvals | GOST-R, CE |
