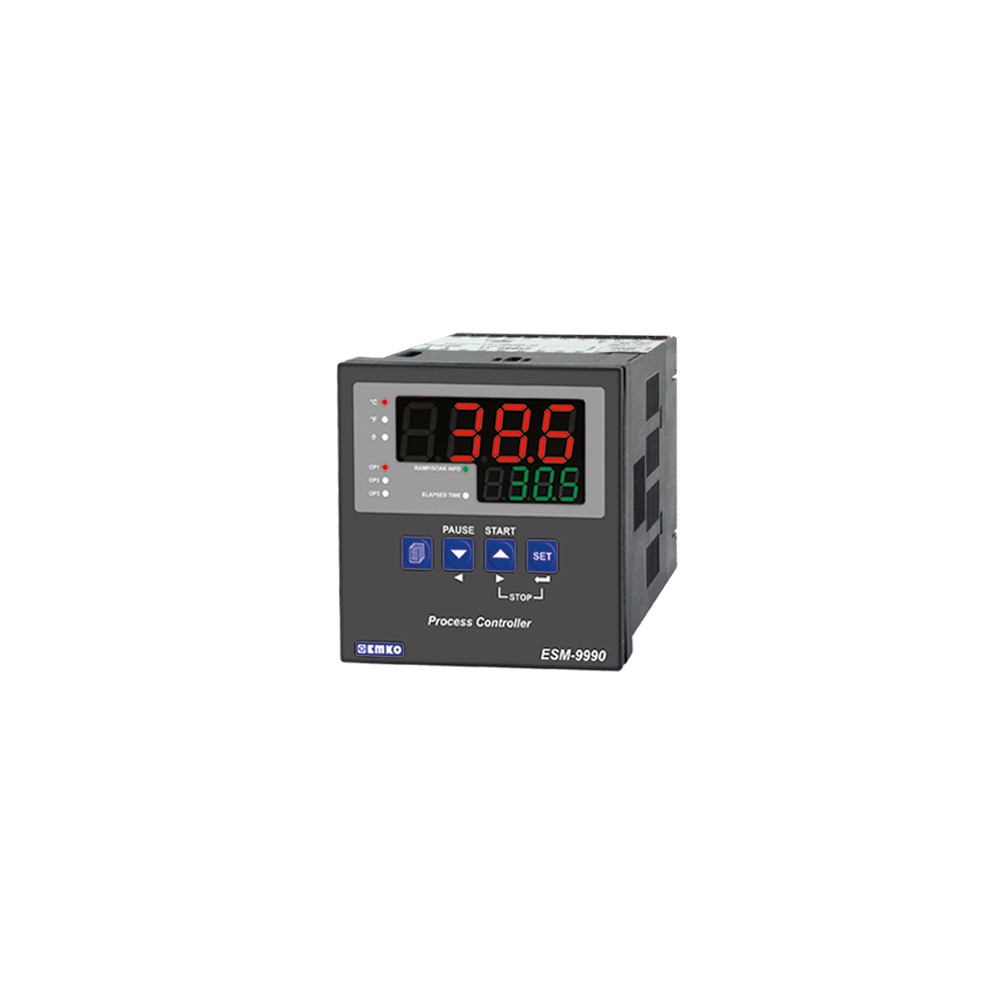

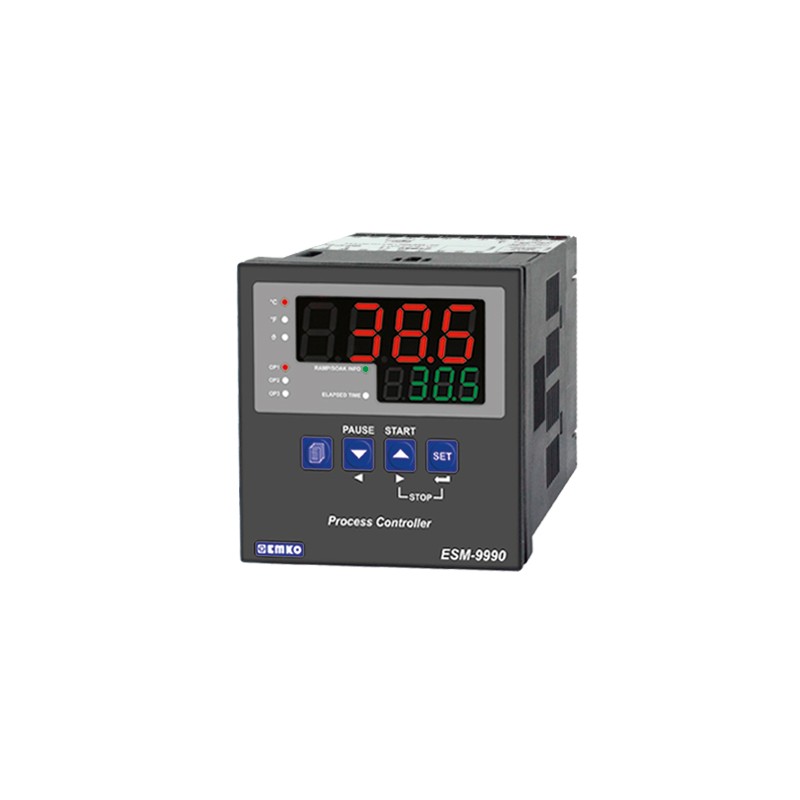

ESM-9990 Heat Treatment Controller (96X96mm)
New product
ESM-9990
Heat Treatment Controller (96X96mm)
ESM-9990 Process Controller are designed for measuring temperature and any process value.They can be used in many applications with their universal process input, alarm functions . Some sectors which they are used are below: Application Fields Glass Plastic Petro-Chemistry Textile Automative Machine production industrie
| Display and Front Panel | |
| Buttons | SetP, direction and enter buttons |
| Led Indicators | Ramp/Soak info,Elapsted Time,OP1/2 /3 (Output) , °C / °F / V unit LEDs |
| Display | 9 mm Green 4 digit LED display |
| Body | |
| Physical Features | 96 mm x 96 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.16 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 100 - 240ac(-15% / +10%) 50/60 Hz 6VA |
| Sensor Inputs | K Type |
| Scale | (-200 ; 1300 Skale) (IEC 584.1)(ITS90) |
| Accuracy | ± 0,25% of FS for thermocouple |
| Outputs | |
| Relay Output | 5A @ 250ac ( Resistive Load ) |
| SSR Driver Output | Max. 20mA @ 18Vdc |
| Control | |
| Hysteresis | 0% to 50% of defined scale |
| Control Form | PID, P, PI, PD, ON/OFF |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | CE |
