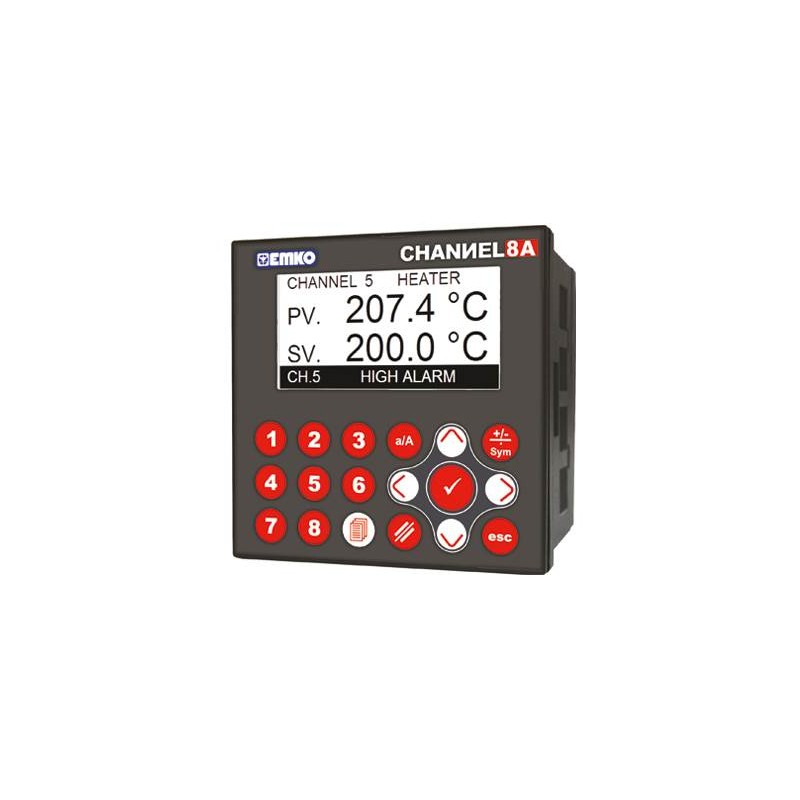

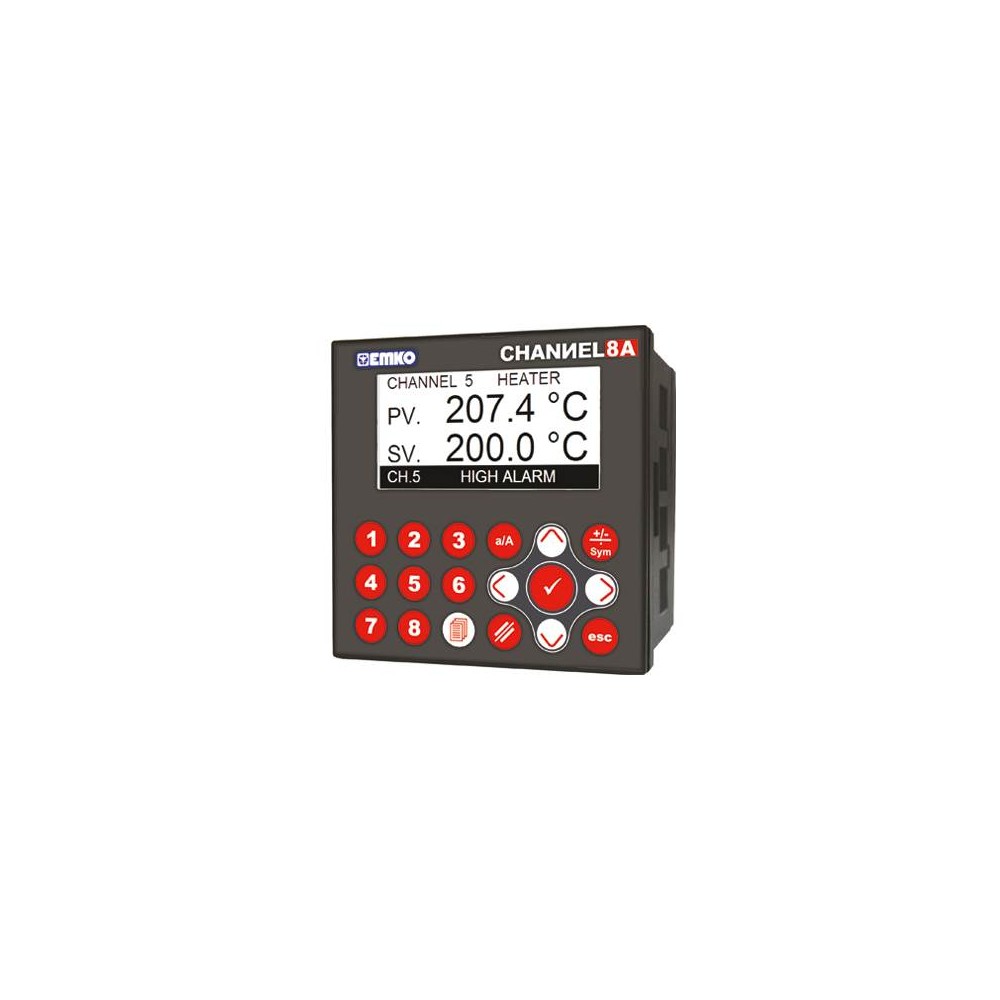

CHANNEL8A 8 Channel Analogue Scanner
New product
CHANNEL8A
8 Channel Analogue Scanner
128 x 64 Graphical LCD display 8 analogue inputs (Selectable input types 0-20mA, 4-20mA and 0-10VDC ) ON-OFF control Relay or (pnp “source”) transistor output Sensor error detection Adjustable offset 3 Different alarm and pre-alarm types for each channel (High, Low and Band Alarms) User defined channel labels ( , Bar and Ph) Display scan modes Operating with Real Time Clock (RTC) ModBus RTU communication protocol (RS-232, RS-485 and Ethernet communication) Data Logging to USB Flash Memory Adjustable data logging time interval Password protection for programming mode
| Display and Front Panel | |
| Buttons | Function and direction buttons |
| Display | 128 X 64 pixel graphic LCD |
| Body | |
| Physical Features | 96 mm x 96 mm 96 mm |
| Protection Class | NEMA 4X (IP65 at front , IP20 at rear) |
| Weight | Appx. 0,40kg |
| Installation | Fixed installation |
| Electrical Features | |
| Supply Voltage and Power |
100 - 240 V ~ (-%15 / +%10 ) 50/60 Hz. 7 VA |
| Accuracy | ± % 0,25 full scale |
| Communication | |
| Standard Communication | RS-232 (Modbus RTU) |
| Optional Communication | RS-485 (Modbus RTU) "500V ~ izolasyonlu" Ethernet (Modbus RTU Over TCP ve Modbus RTU TCP) "1500V ~ isolation" USB 2.0 (Data loggin into the flash drive.) |
| Inputs | |
| Sensor Inputs | 0-20 mA , 4-20 mA , 0-10V DC |
| Outputs | |
| Relay Outputs | 5A@250 V~ at resistive load |
| Transistor Outputs |
PNP (source) type transistor output ( Max. 1A @24VDC ) |
| Control | |
| Indicator | ℃ / Bar / Ph |
| Control Form | On / Off |
| Reading Frequency | 800 ms |
| Quality Standards | |
|
Approvals |
GOST-R, CE |
