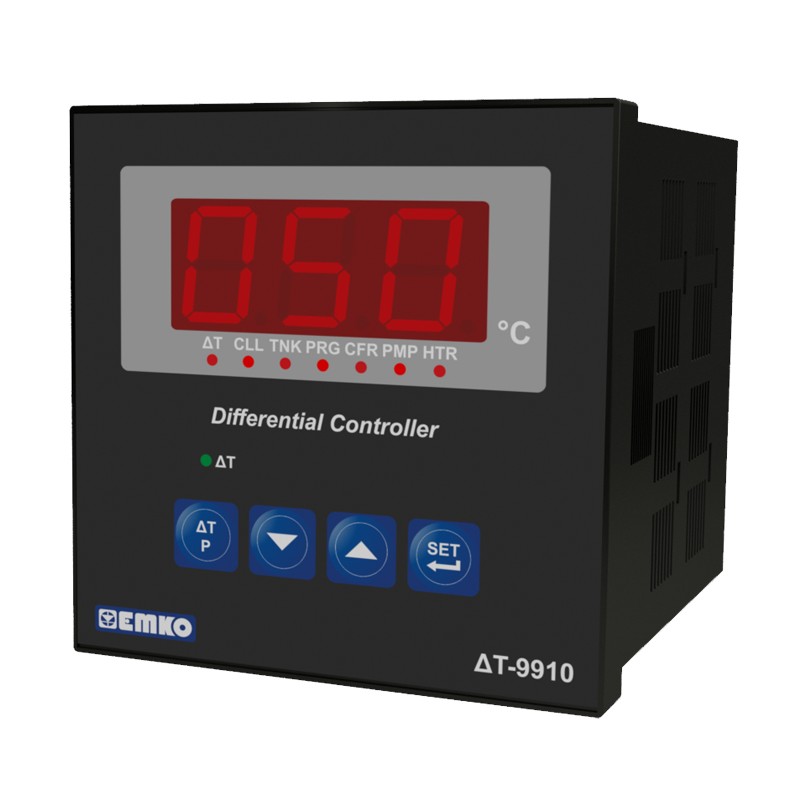

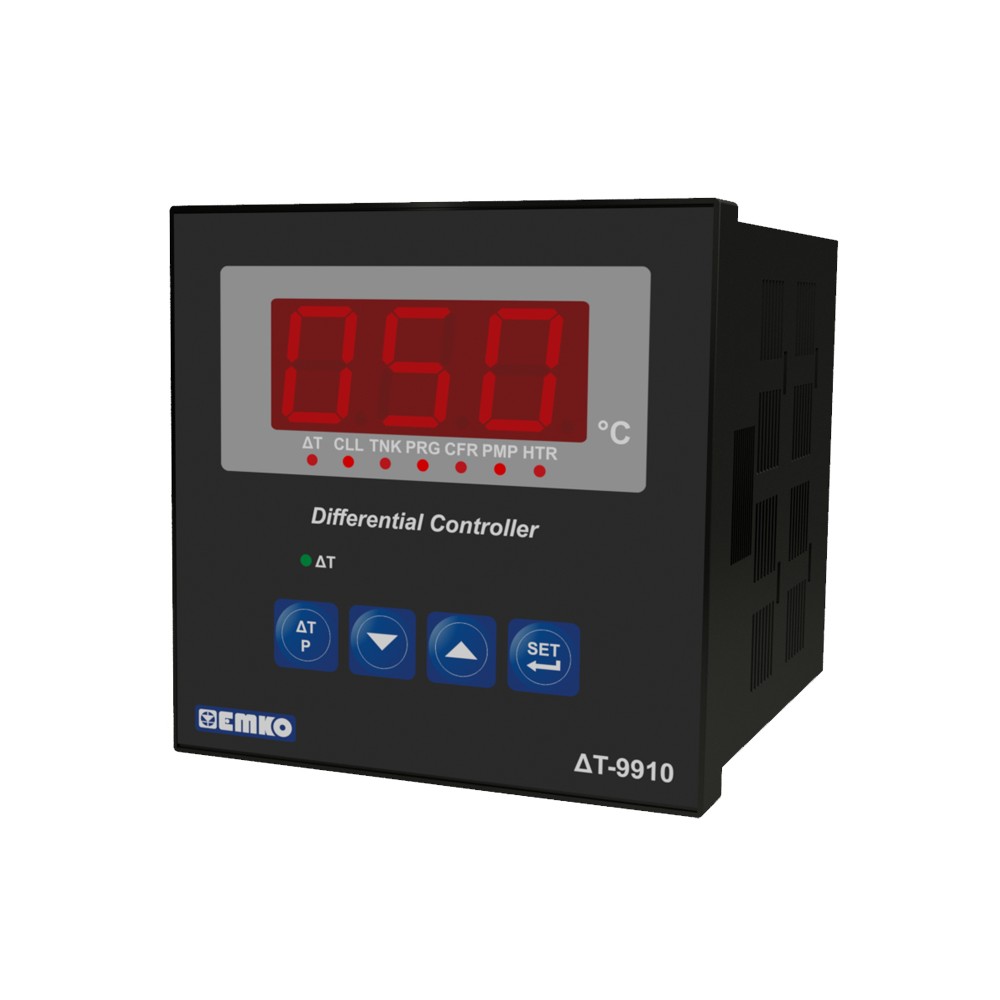

DT-9910 Differantial Controller
New product
DT-9910
Differantial Controller
3 Digits display 2 PTC inputs ON/OFF control form Limitation of setpoint Easy access to setpoint changing the screen Boiler water over-temperature protection Collector frost protection
| Display and Front Panel | |
| Buttons | Program ,Decreament Button,Increament Button and SET Button |
| Led Indicators | CLL,Tnk,Prg,Cfr,Pmp,Htr |
| Body | |
| Physical Features | 96 mm x 96 mm 84 mm |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (+%15) 50/60 Hz. 115 V ~ (+%15) 50/60 Hz. 24 V ~ (+%15) 50/60 Hz. 24 Vac/dc (%15) 50/60 Hz. |
| Sensor Inputs | PTC PTC(1000 @.25 ℃) |
| Outputs | |
| Relay Output | 7A@250 V~ at resistive load |
| Control | |
| Hysteresis | 1 to 10℃ |
| Control Form | On / Off |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | CE |
