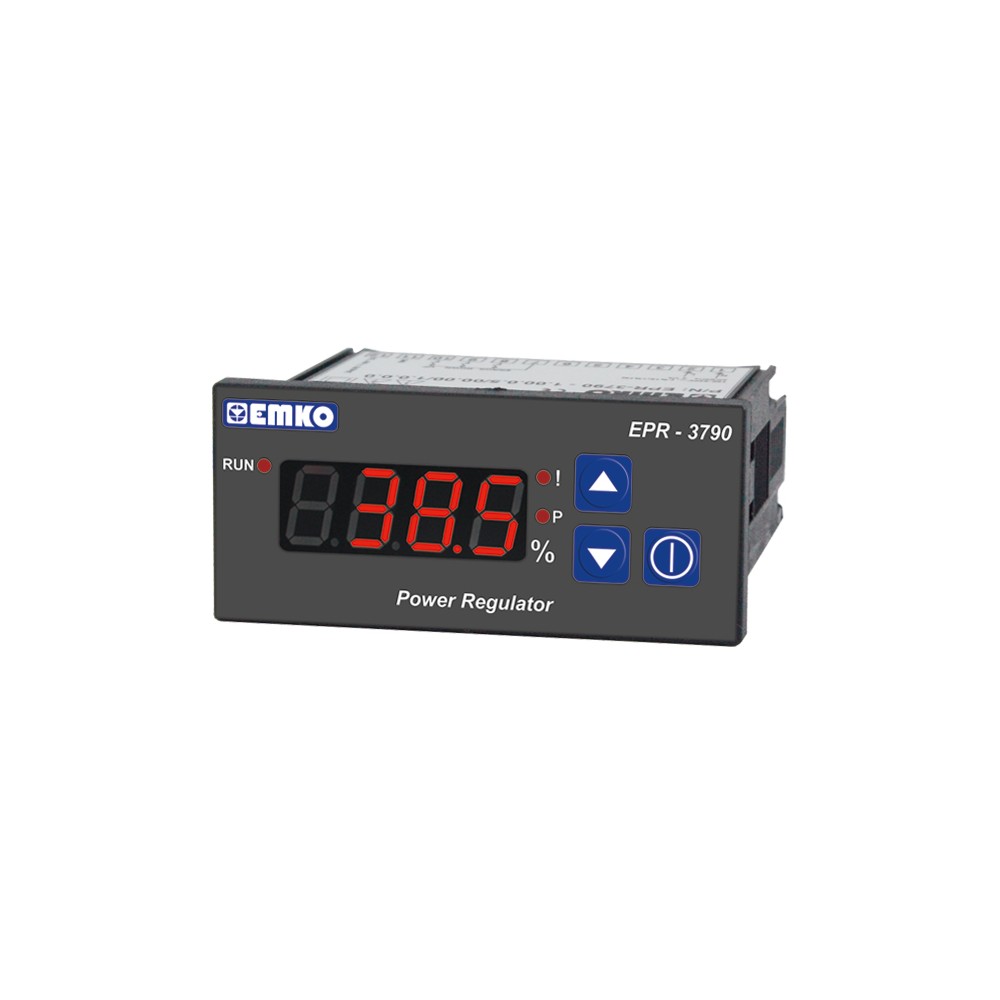

EPR-3790 Digital Power Regulator

EPR-3790
Digital Power Regulator

- 4 Digits Display - Easily adjustable set value from front panel - Configurable display scale between -1999 and 9999 - Adjustable decimal point - Set value low limit and set value high limit boundaries - Adjustable ramp up and ramp down time - Error Input - 0/2...10V Voltage output or 0/4...20mA Current output (It must be determined in order.) - Password protection for programming and adjustment sections

Housing&Mounting : 77mm x 35mm x 62.5mm Plastic housing for panel

Mounting. Panel cut-out is 71x29mm.

Protection Class : NEMA 4X (IP65 at front, IP20 at rear).

Weight : Approximately 90Gr.

Environmental Rating : Standard, indoor at an altitude of less than 2000 meters with none-condensing humidity.

Storage / Operating Temperature: -40 C to +85 C / 0 C to +50 C

Storage / Operating Humidity : 90 % max. (None condensing)

Installation : Fixed Installation

Overvoltage Category : II.

Pollution Degree : II. Office or workplace, none conductive pollution

Operating Conditions : Continuous

Supply Voltage and Power 50/60 Hz. 2VA 24V V 50/60 Hz. 2VA

Analogue Output : 0/2...10V (Max.10mA) or 0/4...20mA

Analogue Output Accuracy : ± % 0.1

Display : 10 mm Red 4 digits LED Display

LED : Run(Red), Error(Red), P(Red) 3 mm Led
