6GK5991-4AB00-8AA0
New product

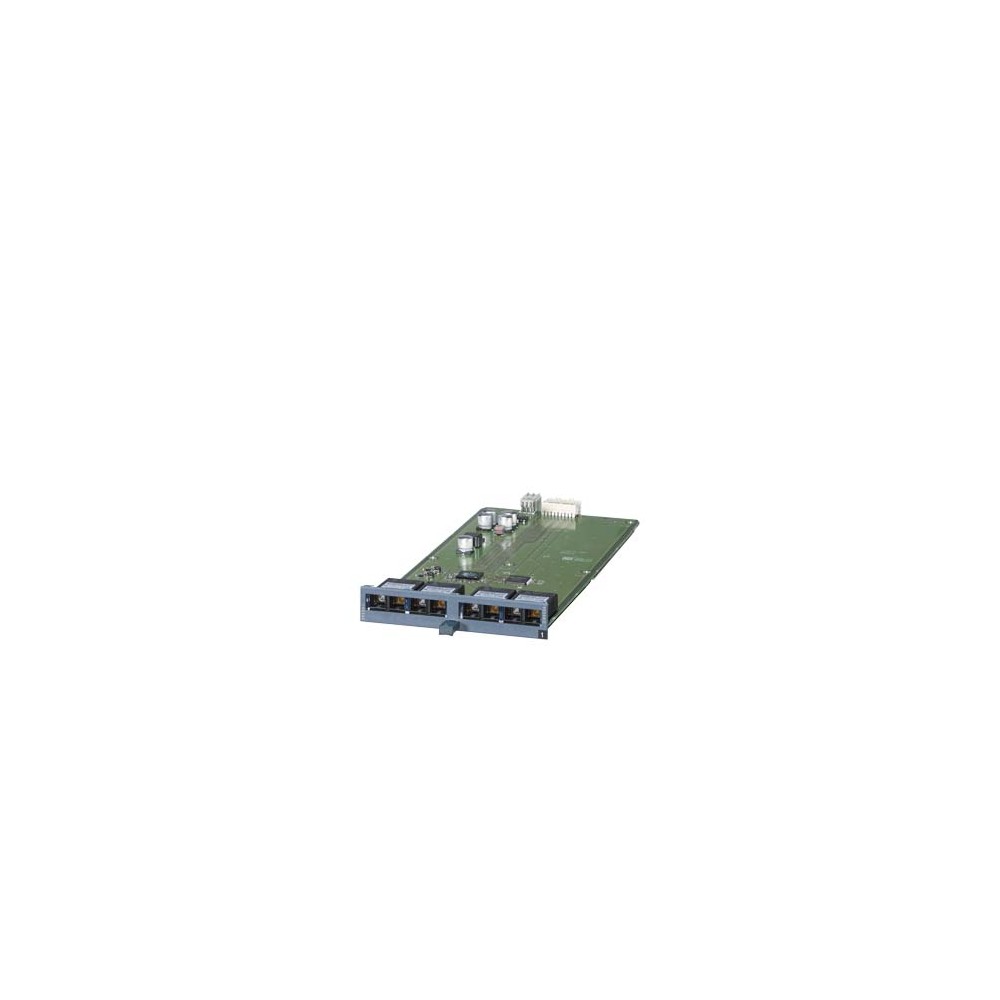

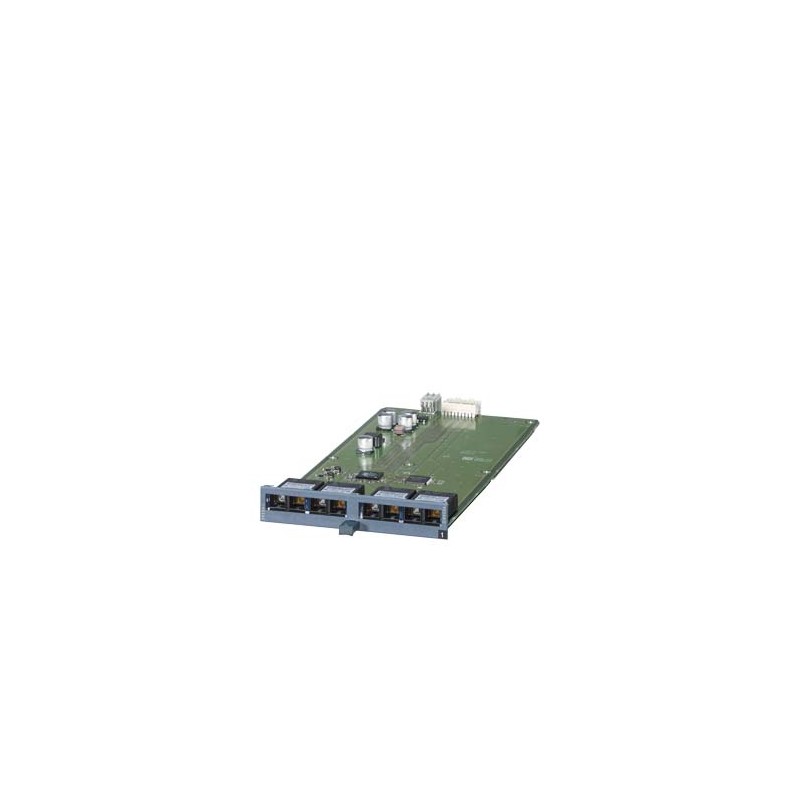

Siemens 6GK5991-4AB00-8AA0
| product description | XR-300 media module | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5991-4AB00-8AA0 | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 4 | |
| number of optical interfaces / for network components or terminal equipment / maximum | 4 | |
| number of 100 Mbit/s ST(BFOC) ports / for multimode / integrated | 4 | |
| design of the optical interface / for network components or terminal equipment | ST/BFOC | |
| wavelength / of the optical interface | 1310 nm; Multi-mode | |
| connectable optical power relative to 1 mW | ||
| ● of the transmitter output / minimum | -19 dB | |
| ● of the transmitter output / maximum | -14 dB | |
| ● of the receiver input / maximum | -3 dB | |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -32 dB | |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB | |
| range / at the optical interface / depending on the optical fiber used | 0 ... 5 km | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | 0 ... 60 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | Media module | |
| width | 120.3 mm | |
| height | 22.3 mm | |
| depth | 275.5 mm | |
| net weight | 0.3 kg | |
| fastening method | latched | |
| ● installation in media module slot | Yes | |
| standards, specifications, approvals | ||
| standard | ||
| ● for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 | |
| ● for emitted interference | EN 61000-6-4 (Class A) | |
| ● for interference immunity | EN 61000-6-2 | |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 | |
| ● CE marking | Yes | |
| ● C-Tick | Yes | |
| ● KC approval | Yes | |
| ● CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 | |
| ● CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc | |
| ● E1 approval | No | |
| Marine classification association | ||
| ● French marine classification society (BV) | Yes | |
