6GK5524-8GR00-2AR2
New product

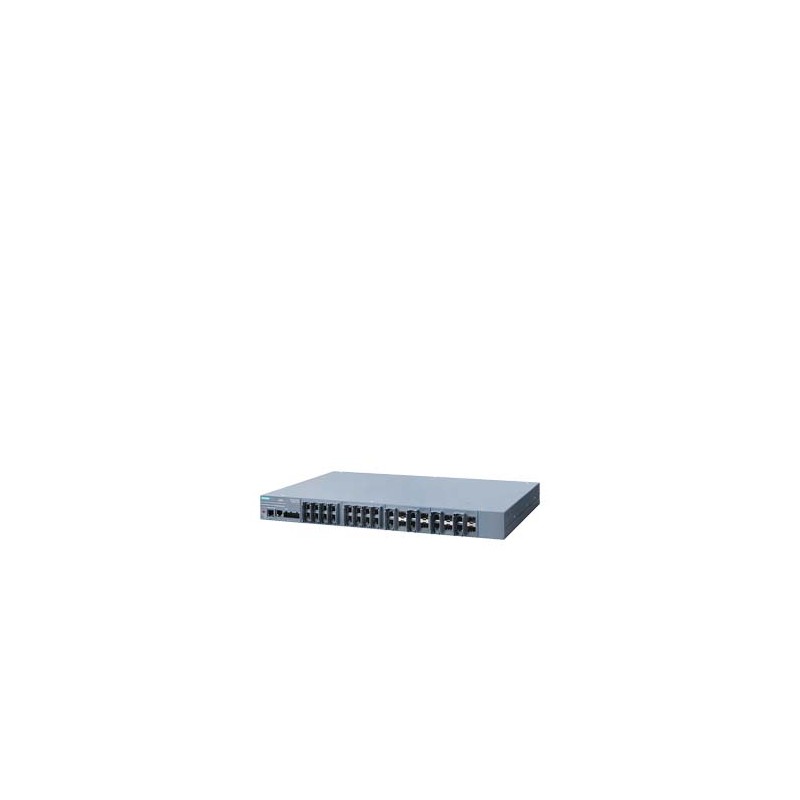

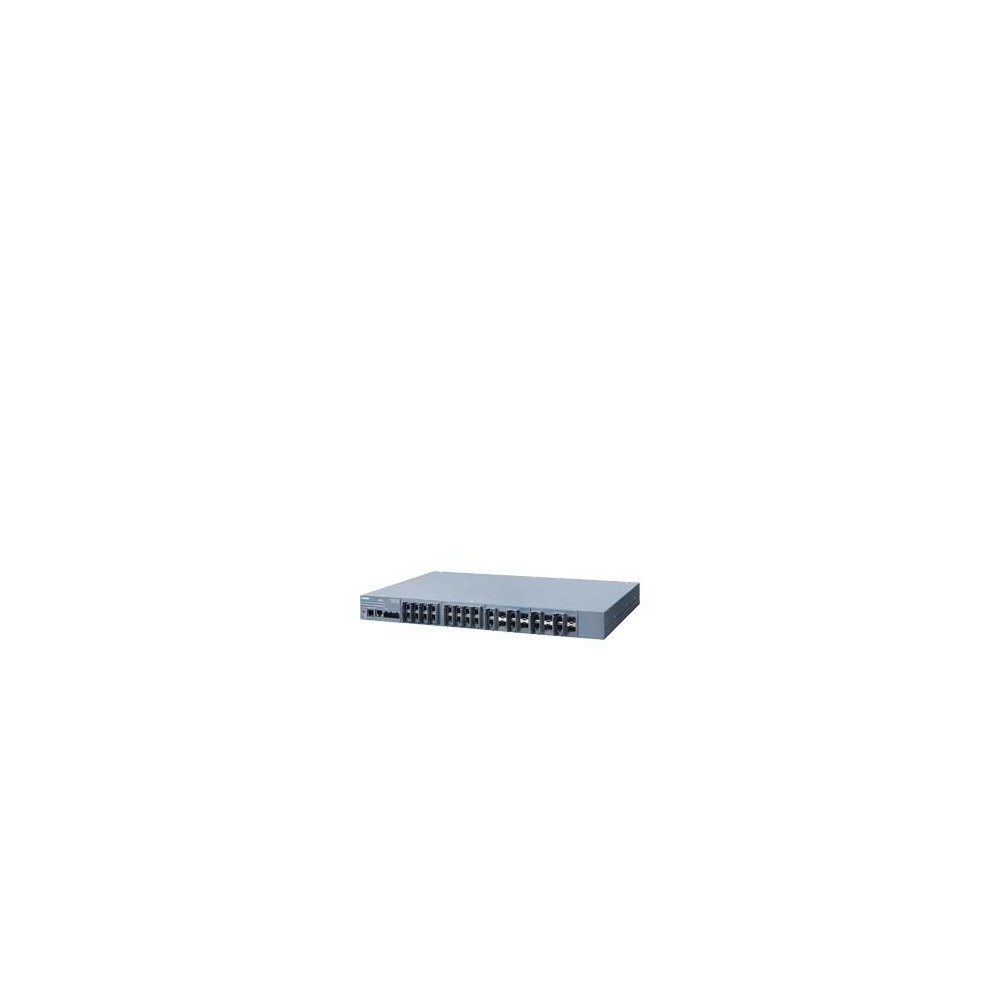

Siemens 6GK5524-8GR00-2AR2
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XR524-8C | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5524-8GR00-2AR2 | |
| transfer rate | ||
| transfer rate | 10, 100, 1000 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| ● for network components or terminal equipment | 24; RJ45 | |
| number of 100 Mbit/s ST(BFOC) ports | ||
| ● for multimode | 0 | |
| number of electrical connections | ||
| ● for SFP | 8 | |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 8 | |
| interfaces / for communication / plug-in | ||
| number of electrical connections | ||
| ● for SFP | 8 | |
| interfaces / other | ||
| number of electrical connections | ||
| ● for operator console | 1 | |
| ● for signaling contact | 1 | |
| ● for power supply | 1 | |
| product feature / hot-swappable interface modules | Yes | |
| operating voltage / of the signaling contacts | ||
| ● at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| ● at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage supply / redundant power supply unit | No | |
| type of voltage / 1 / of the supply voltage | ||
| ● supply voltage / 1 / rated value | 24 V | |
| ● power loss [W] / 1 / rated value | 24 W | |
| ● supply voltage / 1 / voltage range | 19.2 ... 28.8 | |
| ● consumed current / 1 / maximum | 1 A | |
| ● product component / 1 / fusing at power supply input | Yes | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +70 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | 19-inch rack | |
| number of modular height units / relating to 19-inch cabinet | 1 | |
| width | 449 mm | |
| height | 44 mm | |
| depth | 305 mm | |
| net weight | 3.8 kg | |
| fastening method | ||
| ● 19-inch installation | Yes | |
| ● 35 mm DIN-rail mounting | No | |
| ● wall mounting | No | |
| ● S7-300 rail mounting | No | |
| ● S7-1500 rail mounting | No | |
| type of cable outlet | Cable outlet at front | |
