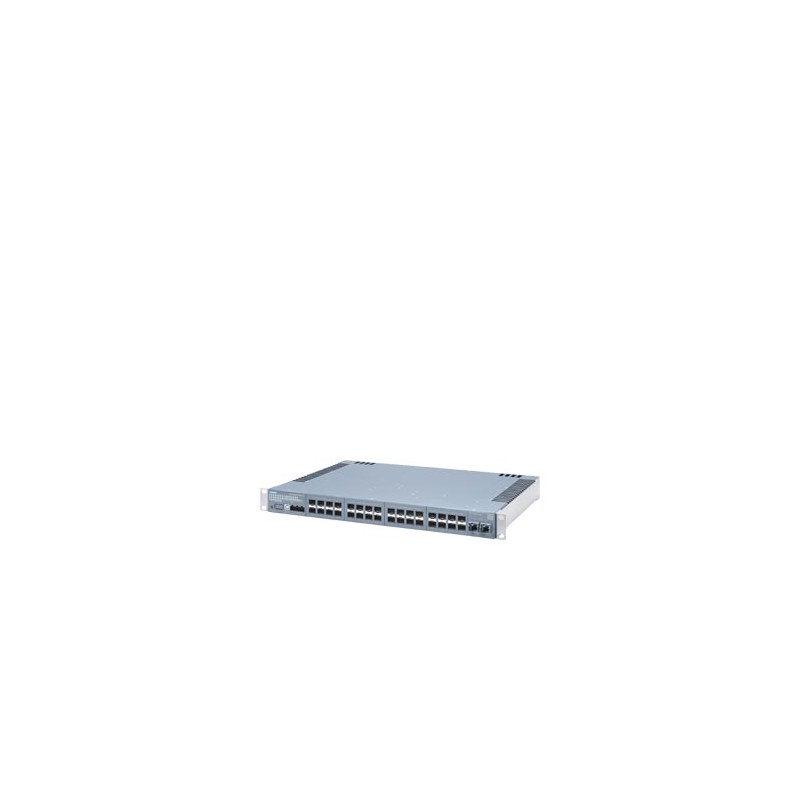

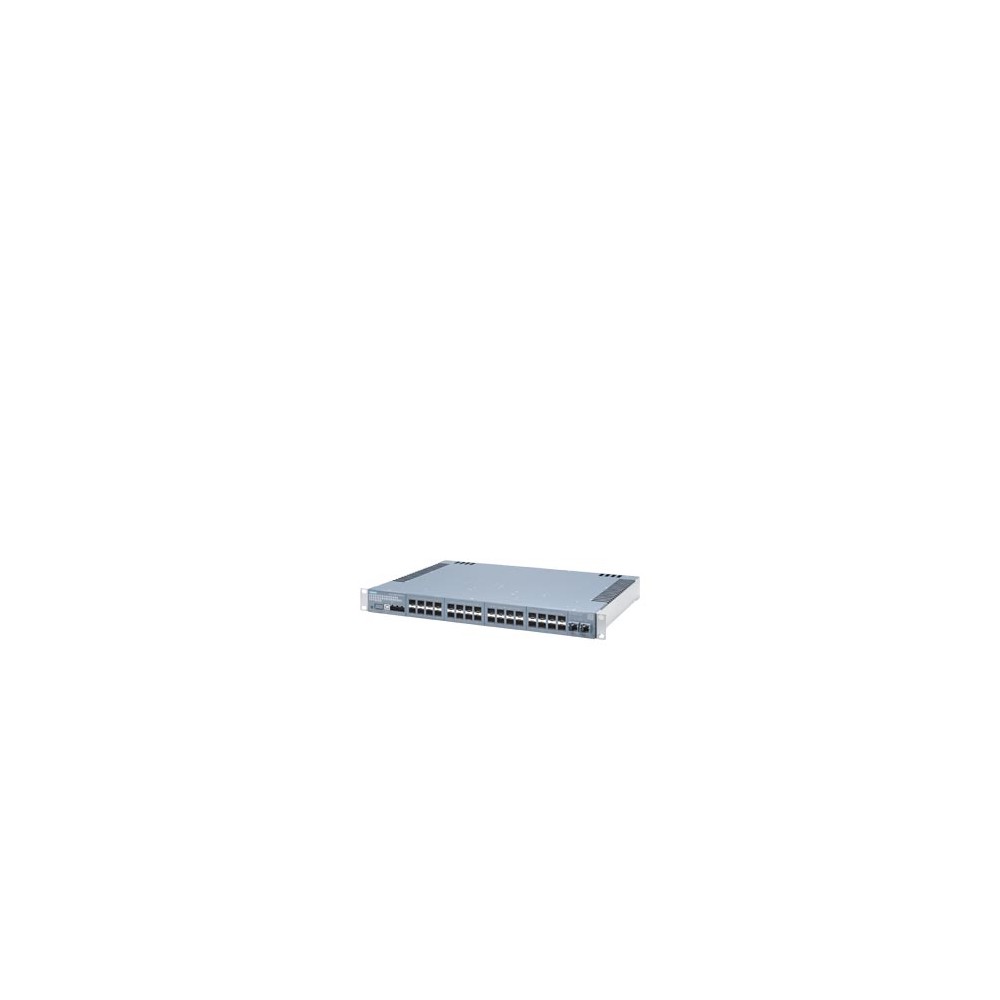

Siemens 6GK5334-5TS01-2AR3
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XRM334 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5334-5TS01-2AR3 | |
| transfer rate | ||
| transfer rate | 100, 1000 Mbit/s | |
| transfer rate | 2.5, 5, 10 Gbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| ● for network components or terminal equipment | 2; RJ45 | |
| number of 10/100/1000 Mbit/s RJ45 ports | ||
| ● with securing collar | 0 | |
| number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar | 2 | |
| number of electrical connections | ||
| ● for SFP | 24; 100 Mbps and 1000 Mbps SFP usable | |
| ● for SFP+ | 8; 1000 Mbps and 10000 Mbps SFP usable | |
| interfaces / other | ||
| number of electrical connections | ||
| ● for operator console | 1 | |
| ● for signaling contact | 1 | |
| ● for power supply | 2 | |
| design of the removable storage | ||
| ● CLP | Yes | |
| operating voltage / of the signaling contacts | ||
| ● at AC / rated value | 24 V | |
| ● at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| ● at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage supply / redundant power supply unit | No | |
| type of voltage / 1 / of the supply voltage | ||
| ● supply voltage / 1 / rated value | 24 V | |
| ● power loss [W] / 1 / rated value | 72 W | |
| ● power loss [W] / at DC / at 24 V / typical | 43.2 W | |
| ● supply voltage / 1 / voltage range | 19.2 ... 31.2 | |
| ● consumed current / 1 / maximum | 3 A | |
| ● consumed current / at DC / at 24 V / typical | 1.8 A | |
| ● product component / 1 / fusing at power supply input | Yes | |
| type of voltage / 2 / of the supply voltage | ||
| ● supply voltage / 2 / rated value | 24 V | |
| ● power loss [W] / 2 / rated value | 76.8 W | |
| ● supply voltage / 2 / voltage range | 19.2 ... 30 | |
| ● consumed current / 2 / maximum | 3.2 A | |
| ambient conditions | ||
| ambient temperature / in horizontal mounting position / during operation | -40 ... +55 °C; Starting at -40 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual. | |
| installation altitude / at height above sea level / maximum | 4000 m | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| operating condition / fanless operation | Yes | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | 19-inch rack | |
| number of modular height units / relating to 19-inch cabinet | 1 | |
| width | 446 mm | |
| height | 43.6 mm | |
| depth | 374.8 mm | |
| net weight | 8 kg | |
| material / of the enclosure | metal | |
| fastening method | ||
| ● 19-inch installation | Yes | |
| product features, product functions, product components / general | ||
| cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s | 50 | |
| cascading in cases of star topology | any (depending only on signal propagation time) | |
| number of automatically learnable MAC addresses | 16382 | |
| number of QoS queues / per port | 8 | |
| product function | ||
| ● QoS according to IEEE 802.1Q | Yes | |
| product feature | ||
| ● Store & Forward switching method | Yes | |
| product license | ||
| product license / Upgrade license | Yes; layer 3 license | |
| product functions / management, configuration, engineering | ||
| product function | ||
| ● CLI | Yes | |
| ● web-based management | Yes | |
| ● MIB support | Yes | |
| ● TRAPs via email | Yes | |
| ● configuration with STEP 7 | Yes | |
| ● RMON | Yes | |
| ● SMTP server | No | |
| ● port mirroring | Yes | |
| ● multiport mirroring | Yes | |
| ● Encapsulated Remote Traffic Mirroring (ERTM) | Yes | |
| ● CoS | Yes | |
| ● PROFINET IO diagnosis | Yes | |
| ● switch-managed | Yes | |
| PROFINET conformity class | B | |
| network load class / according to PROFINET | III | |
| telegram length / for Ethernet / maximum | 9194 byte | |
| protocol / is supported | ||
| ● Telnet | Yes | |
| ● HTTP | Yes | |
| ● HTTPS | Yes | |
| ● TFTP | Yes | |
| ● FTP | Yes | |
| ● SFTP | Yes | |
| ● BOOTP | Yes | |
| ● NETCONF | Yes | |
| ● GMRP | Yes | |
| ● DCP | Yes | |
| ● LLDP | Yes | |
| ● EtherNet/IP | Yes | |
| ● SNMP v1 | Yes | |
| ● SNMP v2 | Yes | |
| ● SNMP v3 | Yes | |
| ● IGMP (snooping/querier) | Yes | |
| identification & maintenance function | ||
| ● I&M0 - device-specific information | Yes | |
| ● I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| ● port diagnostics | Yes | |
| ● statistics Packet Size | Yes | |
| ● statistics packet type | Yes | |
| ● error statistics | Yes | |
| ● SysLog | Yes | |
| product functions / VLAN | ||
| product function | ||
| ● VLAN - port based | Yes | |
| ● VLAN - protocol-based | No | |
| ● VLAN - IP-based | No | |
| number of VLANs / maximum | 257 | |
| number of VLANs - dynamic / maximum | 257 | |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 | |
| product functions / DHCP | ||
| product function | ||
| ● DHCP server | Yes | |
| ● DHCP client | Yes | |
| ● DHCP Option 82 | Yes | |
| ● DHCP Option 66 | Yes | |
| ● DHCP Option 67 | Yes | |
| product functions / redundancy | ||
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes | |
| product function | ||
| ● media redundancy protocol (MRP) with redundancy manager | Yes | |
| ● Media Redundancy Protocol Interconnection (MRP-I) | No | |
| ● ring redundancy | Yes | |
| ● high speed redundancy protocol (HRP) with redundancy manager | No | |
| ● high speed redundancy protocol (HRP) with standby redundancy | No | |
| ● redundancy procedure STP | Yes | |
| ● redundancy procedure RSTP | Yes | |
| ● redundancy procedure RSTP+ | Yes | |
| ● redundancy procedure MSTP | Yes | |
| ● passive listening | No | |
| protocol / is supported | ||
| ● LACP | No | |
| system modification during operation | ||
| product function / configuration in RUN via CiR/H-CiR | No | |
| product functions / security | ||
| product function | ||
| ● IEEE 802.1x (radius) | Yes | |
| ● broadcast/multicast/unicast limiter | Yes | |
| ● broadcast blocking | Yes | |
| protocol / is supported | ||
| ● SSH | Yes | |
| ● SSL | Yes | |
| product functions / time | ||
| product function | ||
| ● SICLOCK support | Yes | |
| ● NTP-client | Yes | |
| ● SNTP client | Yes | |
| ● IEEE 1588 v2 transparent forwarding | Yes | |
| protocol / is supported | ||
| ● NTP | Yes | |
| ● SNTP | Yes | |
| ● IEEE 1588 profile default | No | |
| accuracy / at IEEE 1588 v2 | ||
| ● not less than | 100 µs | |
| ● typical | 50 ns | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| ● CE marking | Yes | |
| ● UKCA marking | Yes | |
| ● cULus approval | Yes | |
| ● KC approval | Yes | |
| ● Regulatory Compliance Mark (RCM) | Yes | |
| product conformity / according to EMC-guideline | 2014/30/EU | |
| standard | ||
| ● for EMC interference emission | EN 61000-6-4 | |
| ● for immunity to EMC | EN 61000-6-2 | |
| ● for safety / from CSA and UL | UL 62368-1, UL 61010 | |
| standards, specifications, approvals / hazardous environments | ||
| certificate of suitability | ||
| ● ATEX | Yes | |
| ● UKEX | Yes | |
| ● IECEx | Yes | |
| ● ULhazloc approval | Yes | |
| ● CCC / for hazardous zone according to GB standard | Yes | |
| ● FM registration | Yes | |
| standards, specifications, approvals / other | ||
| certificate of suitability | ||
| ● RoHS conformity | Yes | |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 | |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes | |
