New
6GK5993-1AU01-8AA0
New product

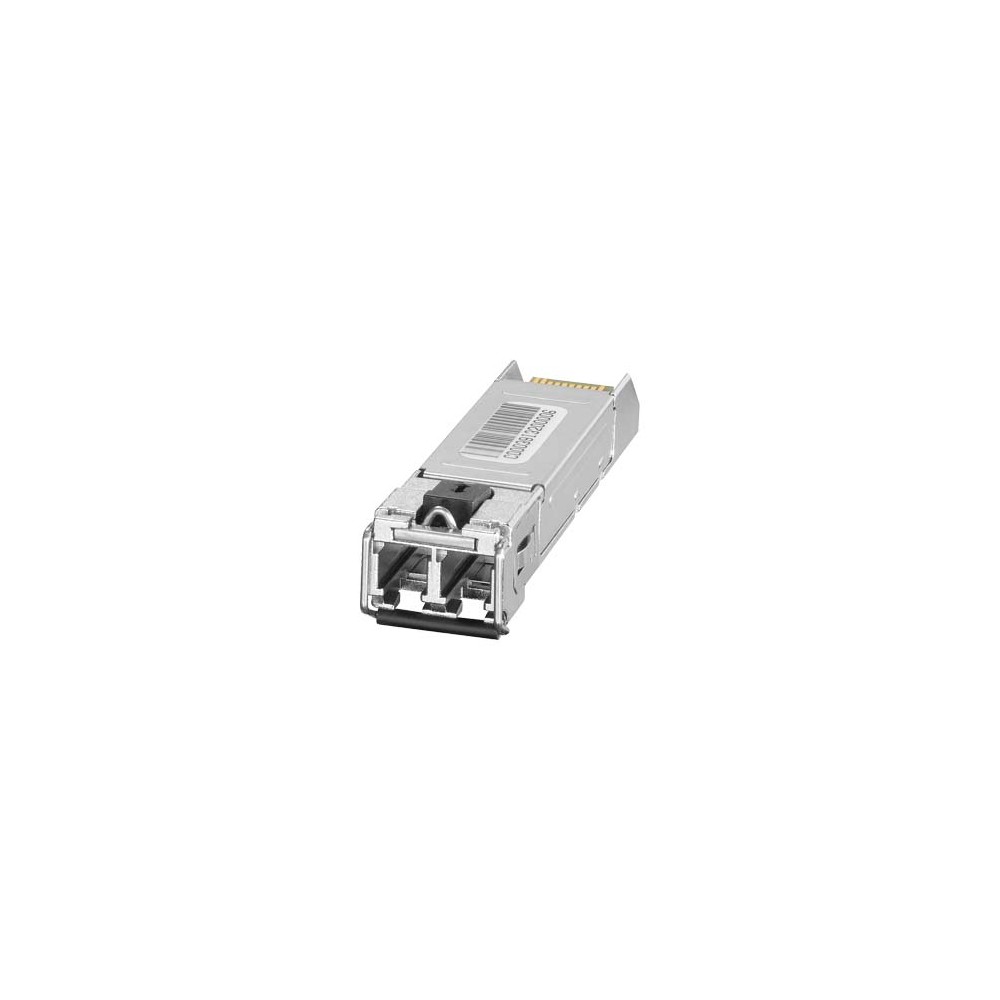

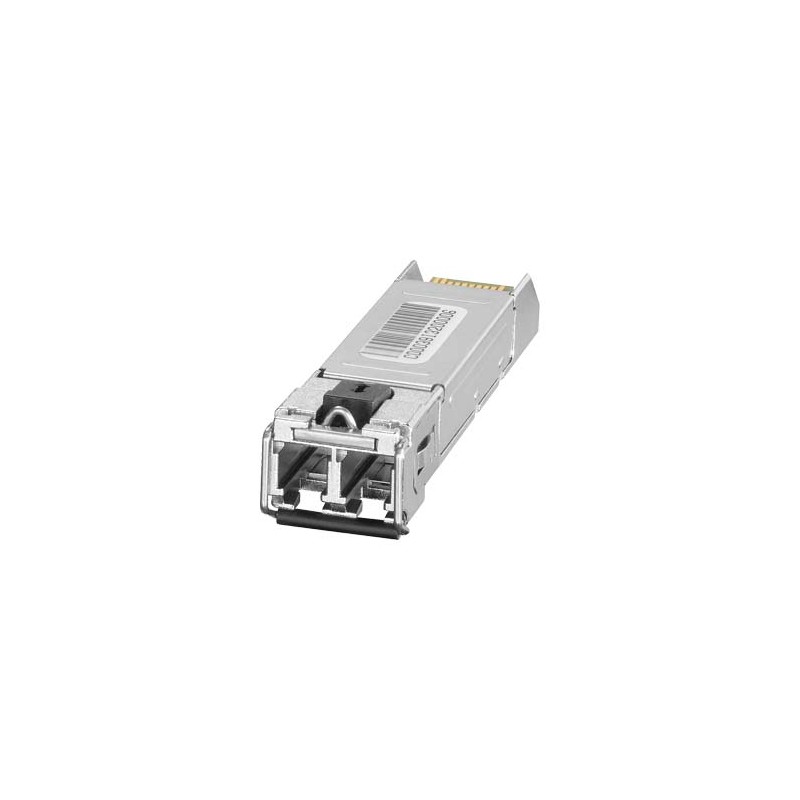

Siemens 6GK5993-1AU01-8AA0
| Technical Product Detail Page | https://i.siemens.com/1P6GK5993-1AU01-8AA0 | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 | |
| number of optical interfaces / for network components or terminal equipment / maximum | 1 | |
| number of 10 Gbit/s LC ports (LX) | 1 | |
| design of the optical interface / for network components or terminal equipment | LC | |
| wavelength / of the optical interface | 1310 nm; Single-mode | |
| connectable optical power relative to 1 mW | ||
| ● of the transmitter output / minimum | -6 dB | |
| ● of the transmitter output / maximum | 0.5 dB | |
| ● of the receiver input / maximum | 0.5 dB | |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | 14.4 dB | |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB | |
| range / at the optical interface / depending on the optical fiber used | 10 ... 10 km | |
| transmission method / for connection type 1 | 10GBase-LR | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -10 ... +85 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | SFP Module | |
| width | 14 mm | |
| height | 9 mm | |
| depth | 57 mm | |
| net weight | 0.01 kg | |
| fastening method | latched | |
| standards, specifications, approvals | ||
| standard | ||
| ● for safety / from CSA and UL | UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19 | |
| ● for emitted interference | EN 61000-6-4 (Class A) | |
| ● for interference immunity | EN 61000-6-2 | |
| certificate of suitability | EN 61000-6-2:2005, EN 61000-6-4:2007 | |
| ● CE marking | Yes | |
| ● C-Tick | Yes | |
| ● KC approval | Yes | |
| MTBF | 202 a | |
