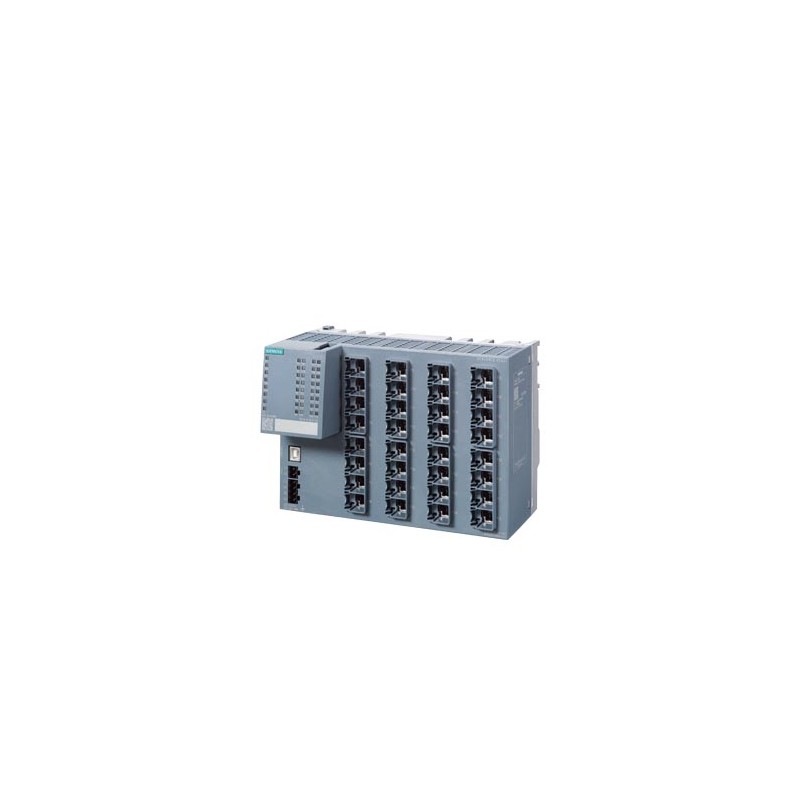

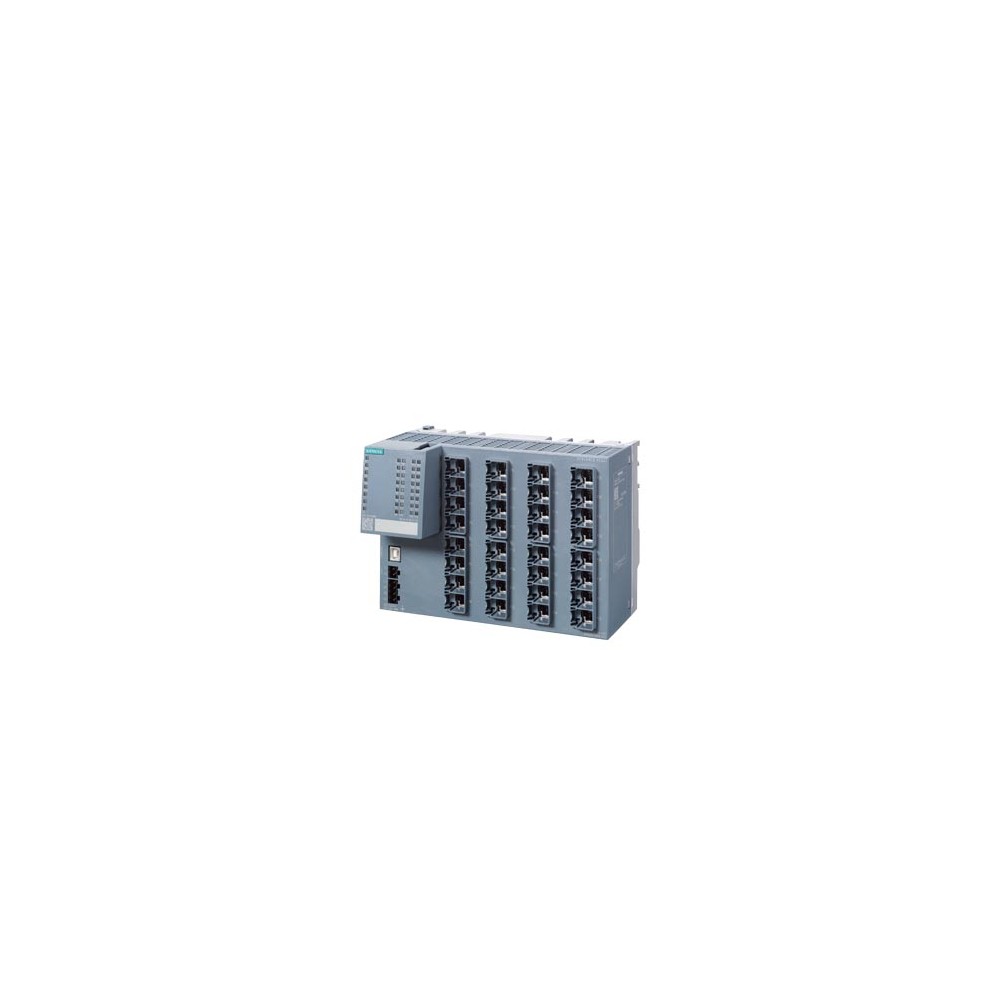

Siemens 6GK5432-0GR00-2AC2
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XC432 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5432-0GR00-2AC2 | |
| transfer rate | ||
| transfer rate | 10, 100, 1000 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| ● for network components or terminal equipment | 32; RJ45 with securing collar | |
| number of 10/100/1000 Mbit/s RJ45 ports | ||
| ● with securing collar | 32 | |
| number of electrical connections | ||
| ● for SFP | 0 | |
| interfaces / other | ||
| number of electrical connections | ||
| ● for operator console | 1 | |
| ● for signaling contact | 1 | |
| ● for power supply | 2 | |
| design of the removable storage | ||
| ● CLP | Yes | |
| operating voltage / of the signaling contacts | ||
| ● at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| ● at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage supply / redundant power supply unit | No | |
| type of voltage / 1 / of the supply voltage | ||
| ● supply voltage / 1 / rated value | 24 V | |
| ● power loss [W] / 1 / rated value | 43.2 W | |
| ● power loss [W] / at DC / at 24 V / typical | 25.92 W | |
| ● supply voltage / 1 / voltage range | 19.2 ... 28.8 | |
| ● consumed current / 1 / maximum | 1.8 A | |
| ● consumed current / at DC / at 24 V / typical | 1.08 A | |
| ● product component / 1 / fusing at power supply input | Yes | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 ... +60 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 95 % | |
| operating condition / fanless operation | Yes | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | compact | |
| width | 210 mm | |
| height | 147 mm | |
| depth | 125 mm | |
| net weight | 2.04 kg | |
| fastening method | ||
| ● 19-inch installation | No | |
| ● 35 mm DIN-rail mounting | Yes | |
| ● wall mounting | Yes | |
| ● S7-300 rail mounting | Yes | |
| ● S7-1500 rail mounting | Yes | |
| product features, product functions, product components / general | ||
| cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s | 50 | |
| number of automatically learnable MAC addresses | 16382 | |
| number of QoS queues / per port | 8 | |
| product function | ||
| ● QoS according to IEEE 802.1Q | Yes | |
| product feature | ||
| ● Store & Forward switching method | Yes | |
| product functions / management, configuration, engineering | ||
| product function | ||
| ● CLI | Yes | |
| ● web-based management | Yes | |
| ● MIB support | Yes | |
| ● TRAPs via email | Yes | |
| ● configuration with STEP 7 | Yes | |
| ● RMON | Yes | |
| ● port mirroring | Yes | |
| ● multiport mirroring | Yes | |
| ● CoS | Yes | |
| ● PROFINET IO diagnosis | Yes | |
| ● switch-managed | Yes | |
| PROFINET conformity class | B | |
| network load class / according to PROFINET | III | |
| telegram length / for Ethernet / maximum | 9194 byte | |
| protocol / is supported | ||
| ● Telnet | Yes | |
| ● HTTP | Yes | |
| ● HTTPS | Yes | |
| ● TFTP | Yes | |
| ● FTP | Yes | |
| ● SFTP | Yes | |
| ● BOOTP | Yes | |
| ● NETCONF | No | |
| ● GMRP | Yes | |
| ● DCP | Yes | |
| ● LLDP | Yes | |
| ● EtherNet/IP | Yes | |
| ● SNMP v1 | Yes | |
| ● SNMP v2 | Yes | |
| ● SNMP v3 | Yes | |
| ● IGMP (snooping/querier) | Yes | |
| identification & maintenance function | ||
| ● I&M0 - device-specific information | Yes | |
| ● I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| ● port diagnostics | Yes | |
| ● statistics Packet Size | Yes | |
| ● statistics packet type | Yes | |
| ● error statistics | Yes | |
| ● SysLog | Yes | |
| product functions / VLAN | ||
| product function | ||
| ● VLAN - port based | Yes | |
| ● VLAN - protocol-based | No | |
| ● VLAN - IP-based | No | |
| ● VLAN dynamic | Yes | |
| number of VLANs / maximum | 257 | |
| number of VLANs - dynamic / maximum | 257 | |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 | |
| product functions / DHCP | ||
| product function | ||
| ● DHCP server | Yes | |
| ● DHCP client | Yes | |
| ● DHCP Option 82 | Yes | |
| ● DHCP Option 66 | Yes | |
| ● DHCP Option 67 | Yes | |
| product functions / routing | ||
| service / routing / note | IP routing integrated | |
| product function | ||
| ● static IP routing | Yes | |
| ● static IP routing IPv6 | No | |
| ● dynamic IP routing | Yes | |
| ● dynamic IP routing IPv6 | No | |
| protocol / is supported | ||
| ● RIPv2 | Yes | |
| ● RIPnG for IPv6 | No | |
| ● OSPFv2 | Yes | |
| ● OSPFv3 for IPv6 | No | |
| ● VRRP | Yes | |
| ● VRRP for IPv6 | No | |
| product functions / redundancy | ||
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes | |
| product function | ||
| ● media redundancy protocol (MRP) with redundancy manager | Yes | |
| ● Media Redundancy Protocol Interconnection (MRP-I) | Yes | |
| ● of the PROFINET IO device / is supported / PROFINET system redundancy | Yes | |
| ● ring redundancy | Yes | |
| ● high speed redundancy protocol (HRP) with redundancy manager | Yes | |
| ● high speed redundancy protocol (HRP) with standby redundancy | Yes | |
| ● redundancy procedure STP | Yes | |
| ● redundancy procedure RSTP | Yes | |
| ● redundancy procedure RSTP+ | Yes | |
| ● redundancy procedure MSTP | Yes | |
| ● High-availability Seamless Redundancy (HSR) | Yes | |
| ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes | |
| ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes | |
| ● passive listening | Yes | |
| protocol / is supported | ||
| ● LACP | Yes | |
| system modification during operation | ||
| product function / configuration in RUN via CiR/H-CiR | Yes | |
| product functions / security | ||
| product function | ||
| ● IEEE 802.1x (radius) | Yes | |
| ● broadcast/multicast/unicast limiter | Yes | |
| ● broadcast blocking | Yes | |
| protocol / is supported | ||
| ● SSH | Yes | |
| ● SSL | Yes | |
| product functions / time | ||
| product function | ||
| ● SICLOCK support | Yes | |
| ● NTP-client | Yes | |
| ● SNTP client | Yes | |
| ● IEEE 1588 v2 transparent forwarding | Yes | |
| protocol / is supported | ||
| ● NTP | Yes | |
| ● SNTP | Yes | |
| accuracy / at IEEE 1588 v2 | ||
| ● not less than | 100 µs | |
| ● typical | 50 ns | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| ● CE marking | Yes | |
| ● UKCA marking | Yes | |
| ● cULus approval | Yes | |
| ● KC approval | Yes | |
| ● Regulatory Compliance Mark (RCM) | Yes | |
| standard | ||
| ● for EMC interference emission | EN 61000-6-4 (Class A) | |
| ● for immunity to EMC | EN 61000-6-2 | |
| ● for safety / from CSA and UL | UL 60950-1; CSA C22.2 No. 213-M1987 | |
