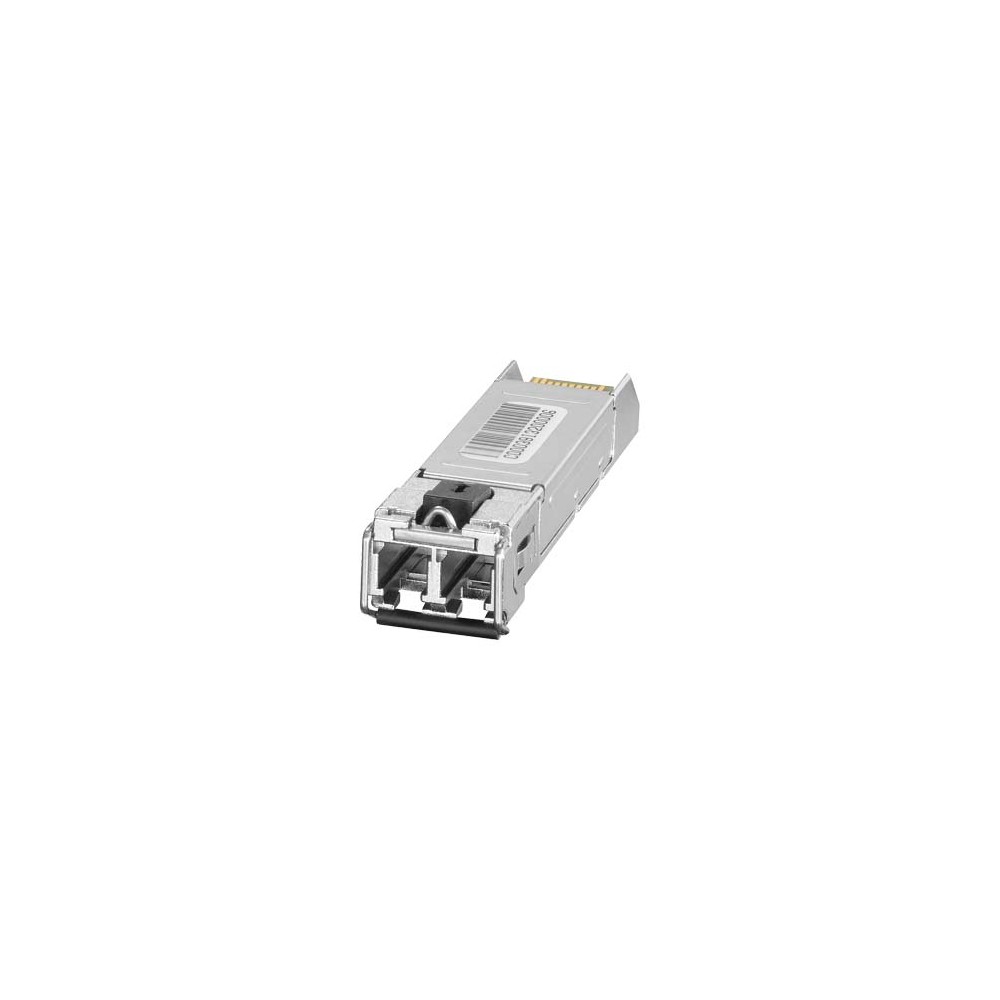

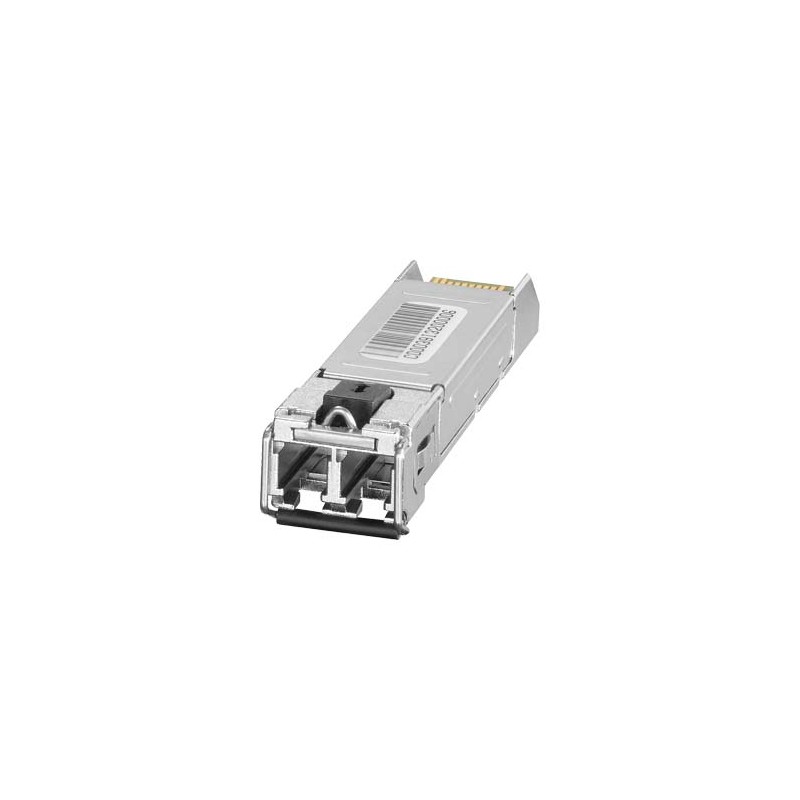

Siemens 6GK5992-1AL01-8AA0
| Technical Product Detail Page | https://i.siemens.com/1P6GK5992-1AL01-8AA0 | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 | |
| number of optical interfaces / for network components or terminal equipment / maximum | 1 | |
| number of 1000 Mbit/s LC ports / for multimode / integrated | 1 | |
| design of the optical interface / for network components or terminal equipment | LC | |
| wavelength / of the optical interface | 850 nm; Multi-mode | |
| connectable optical power relative to 1 mW | ||
| ● of the transmitter output / minimum | -9 dB | |
| ● of the transmitter output / maximum | -1 dB | |
| ● of the receiver input / maximum | -2.5 dB | |
| optical sensitivity relating to 1 mW / of the receiver input / minimum | -18 dB | |
| attenuation factor / of the FOC transmission link / minimum necessary | 0 dB | |
| range / at the optical interface / depending on the optical fiber used | 0.3 ... 0.55 km | |
| transmission method / for connection type 1 | 1000BASE-SX | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -10 ... +85 °C | |
| ● during storage | -40 ... +85 °C | |
| ● during transport | -40 ... +85 °C | |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | SFP Module | |
| width | 14 mm | |
| height | 9 mm | |
| depth | 57 mm | |
| net weight | 0.01 kg | |
| fastening method | latched | |
