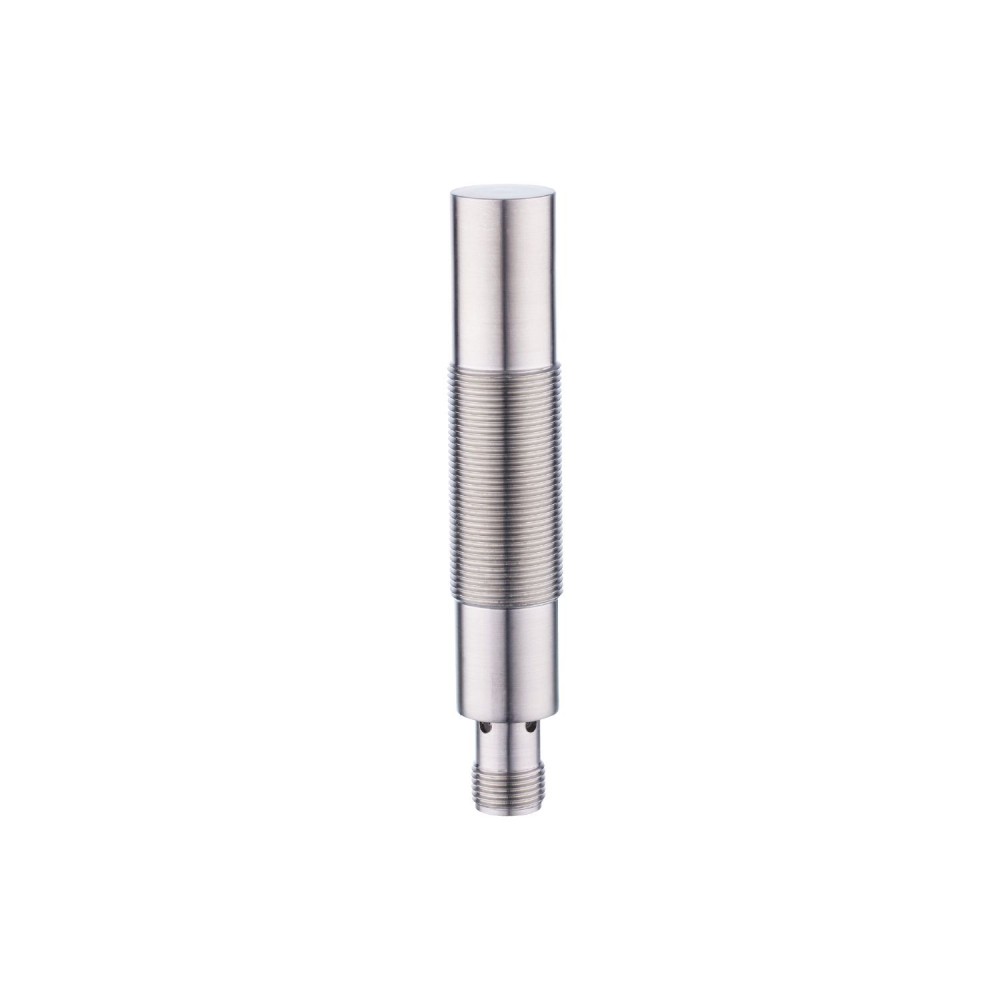

ifm UGT302 - UGA400400R2KG/AM/IO/US Full-metal body sensors
Product characteristics
| Electrical design |
PNP/NPN; (parameterisable) |
| Output function |
normally open / normally closed; (parameterisable) |
| Sensing range[mm] |
50...400; (Target: 100 x 100 mm) |
| Communication interface |
IO-Link |
| Housing |
threaded type |
| Dimensions[mm] |
M18 x 1 / L = 98.5 |
Electrical data
| Operating voltage[V] |
10...30 DC; (operating voltage "supply class 2" according to cULus) |
| Current consumption[mA] |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time[s] |
< 0.5 |
| Converter frequency[kHz] |
300 |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
Outputs
| Total number of outputs |
2 |
| Electrical design |
PNP/NPN; (parameterisable) |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] |
2.2 |
| Permanent current rating of switching output DC[mA] |
100 |
| Switching frequency DC[Hz] |
10 |
| Number of analogue outputs |
1 |
| Analogue voltage output[V] |
0...10 |
| Min. load resistance[Ω] |
3000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Sensing range[mm] |
50...400; (Target: 100 x 100 mm) |
| Blind zone[mm] |
50 |
| Angle of aperture cylindrical[°] |
16; (±1) |
| Max. deviation from the 90° angle sensor/object[°] |
± 4 |
Accuracy / deviations
| Temperature compensation |
yes |
| Hysteresis[%] |
< 1 |
| Linearity error of analogue output[%] |
1; (of the final value of the measuring range) |
| Temperature drift |
± 2 %; (of the final value of the measuring range) |
| Repeatability |
0,5 % |
| Resolution[mm] |
1 |
| Notes on the accuracy / deviation |
The indicated values are reached after a warm-up time of min. 20 minutes |
