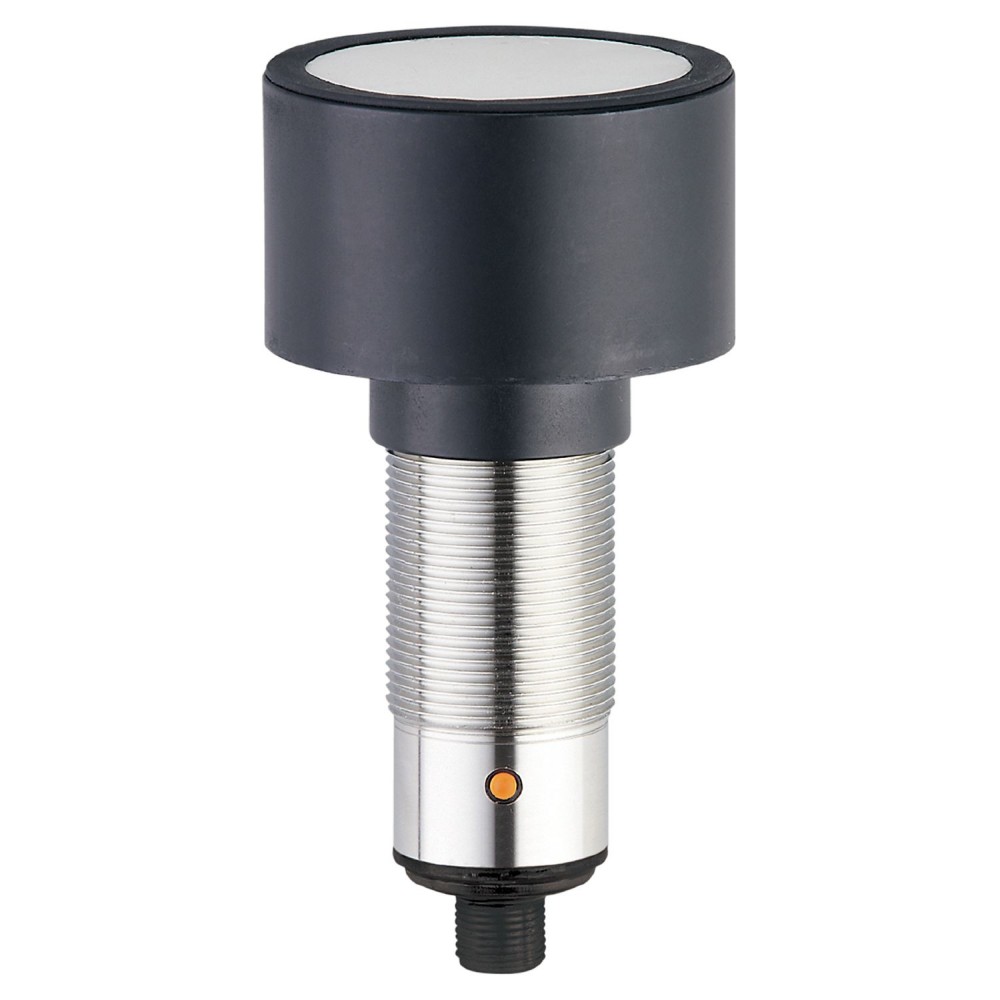

ifm UIT507 - UIA08000E1KG/IO-Link/US M30 type
Product characteristics
| Electrical design |
PNP |
| Output function |
normally open / normally closed; (parameterisable) |
| Sensing range[mm] |
600...8000; (Target: 1000 x 1000 mm) |
| Communication interface |
IO-Link |
| Housing |
threaded type |
| Dimensions[mm] |
M30 x 1.5 / L = 118.8 |
Electrical data
| Operating voltage[V] |
10...30 DC |
| Current consumption[mA] |
< 30 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time[s] |
< 0.3 |
| Converter frequency[kHz] |
40 |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analogue outputs: 1 |
Outputs
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; IO-Link |
| Electrical design |
PNP |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] |
2.2 |
| Permanent current rating of switching output DC[mA] |
100 |
| Switching frequency DC[Hz] |
1 |
| Number of analogue outputs |
1 |
| Analogue current output[mA] |
4...20 |
| Max. load[Ω] |
500 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Sensing range[mm] |
600...8000; (Target: 1000 x 1000 mm) |
| Blind zone[mm] |
600 |
| Angle of aperture cylindrical[°] |
10; (±2) |
| Max. deviation from the 90° angle sensor/object[°] |
± 4 |
Accuracy / deviations
| Temperature compensation |
yes |
| Hysteresis[%] |
< 3 |
| Switch point drift[%] |
-5...5 |
| Linearity error of analogue output[%] |
<3 |
| Repeatability |
1 % |
| Resolution[mm] |
3 |
| Notes on the accuracy / deviation |
The indicated values are reached after a warm-up time of min. 20 minutes |
