6AV7886-0TE21-2AC0

Condition: New product

More info

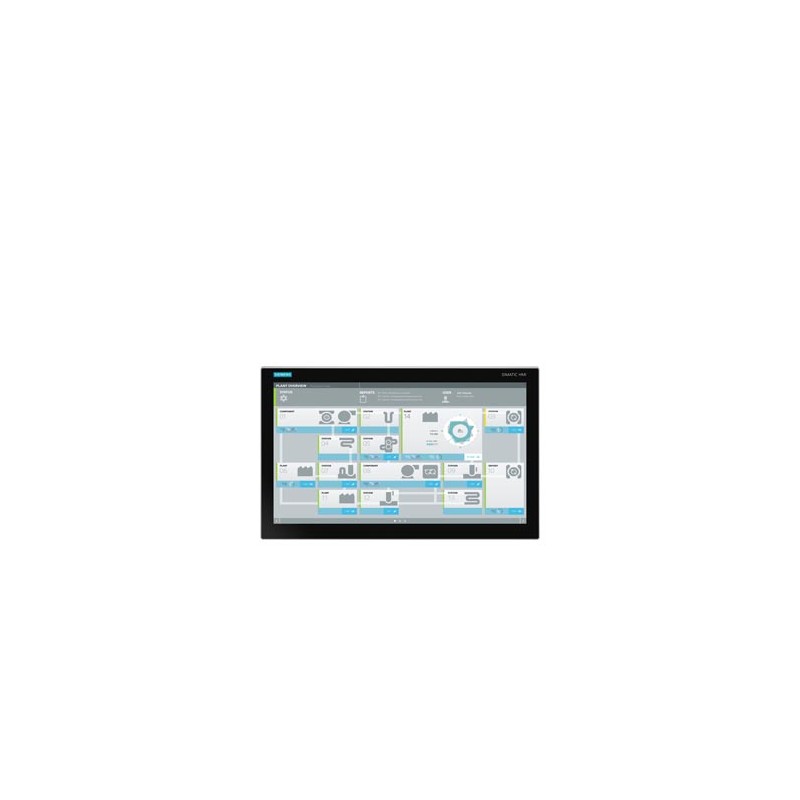

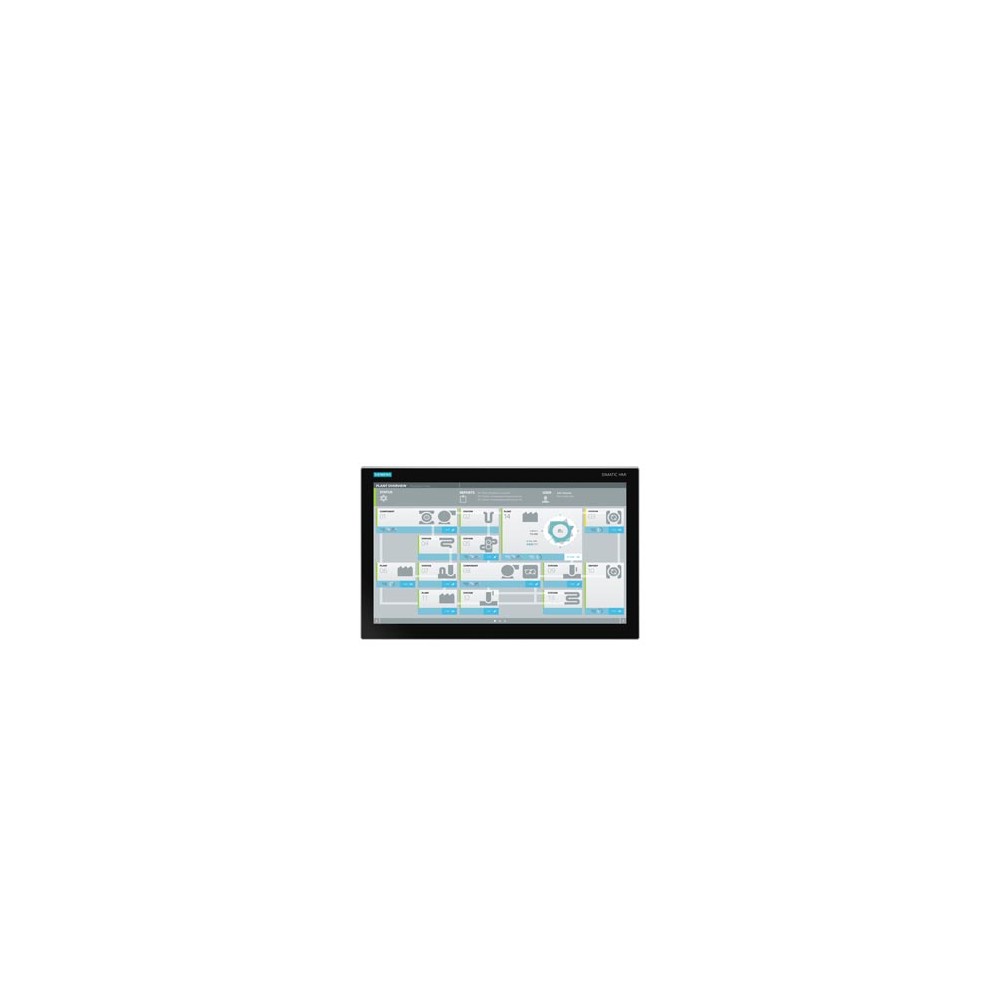

Siemens 6AV7886-0TE21-2AC0

SIMATIC IPC277G (Nanopanel PC); 15" multi-touch (1920 x 1080); neutral front; 3x 10/100/1000 Mbps Ethernet RJ45; 2x display port graphic; 4x USB 3.1; 2x M.2 extension slot; DC 24 V industrial power supply 24 V DC industrial power supply

General information
Product type designation		IPC277G
Display
Design of display		15" TFT multi-touch
Screen diagonal		15 in
Resolution (pixels)
● Horizontal image resolution		1 920 pixel
● Vertical image resolution		1 080 pixel
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h
Control elements
Touch operation
● Design as multi-touch screen		Yes; Projective-capacitive
Installation type/mounting
Mounting		For horizontal and vertical mounting
Design		Panel PC, built-in unit
central design		Yes
Mounting in portrait format possible		Yes
Supply voltage
Type of supply voltage		24 V DC
Rated value (DC)		24 V
Mains buffering
● Mains/voltage failure stored energy time		20 ms
Input current
Current consumption (rated value)		1.5 A
Current consumption, max.		5 A
Processor
Processor type		Intel Atom X6413E
Chipset		SoC
Graphic
Graphics controller		Integrated
Drives
SSD		Yes; 256 Eco
Memory
Type of memory		DDR4 SO-DIMM
Main memory		8 GB RAM
Capacity of main memory, max.		8 Gbyte
Interfaces
Number of industrial Ethernet interfaces		3; 3x Ethernet (RJ45)
Video interfaces
● Graphics interface		2x DisplayPort
Industrial Ethernet
● Industrial Ethernet interface
— 100 Mbps		Yes
— 1000 Mbps		Yes
Protocols
Protocols (Ethernet)
● DHCP		Yes
Interrupts/diagnostics/status information
LED status display		No
Integrated Functions
Monitoring functions
● Temperature monitoring		Yes
● Fan		No
● Monitoring function via network		Optional
Degree and class of protection
IP (at the front)		IP65
IP (rear)		20
