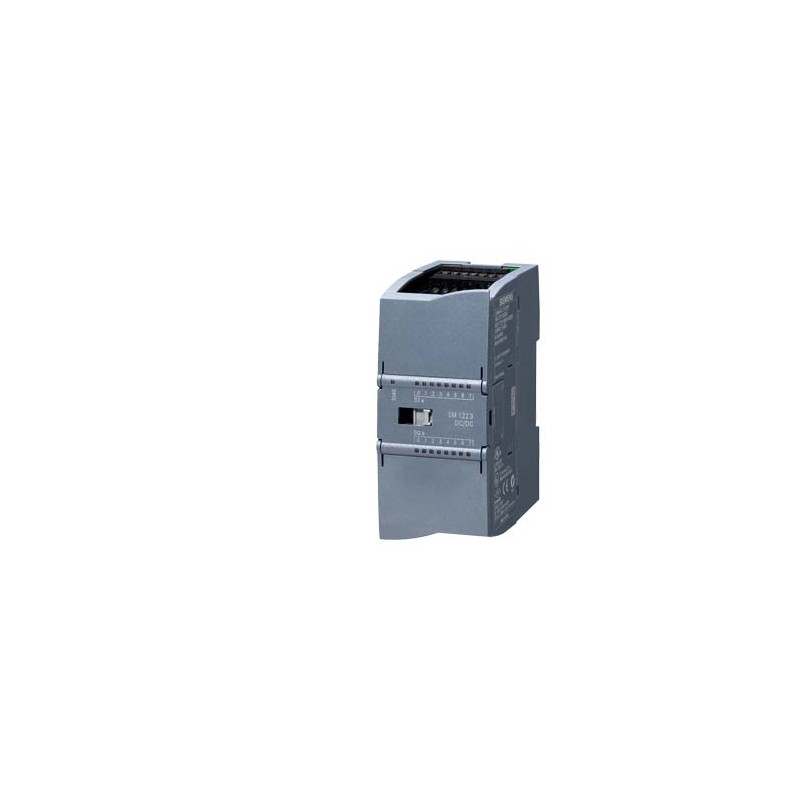

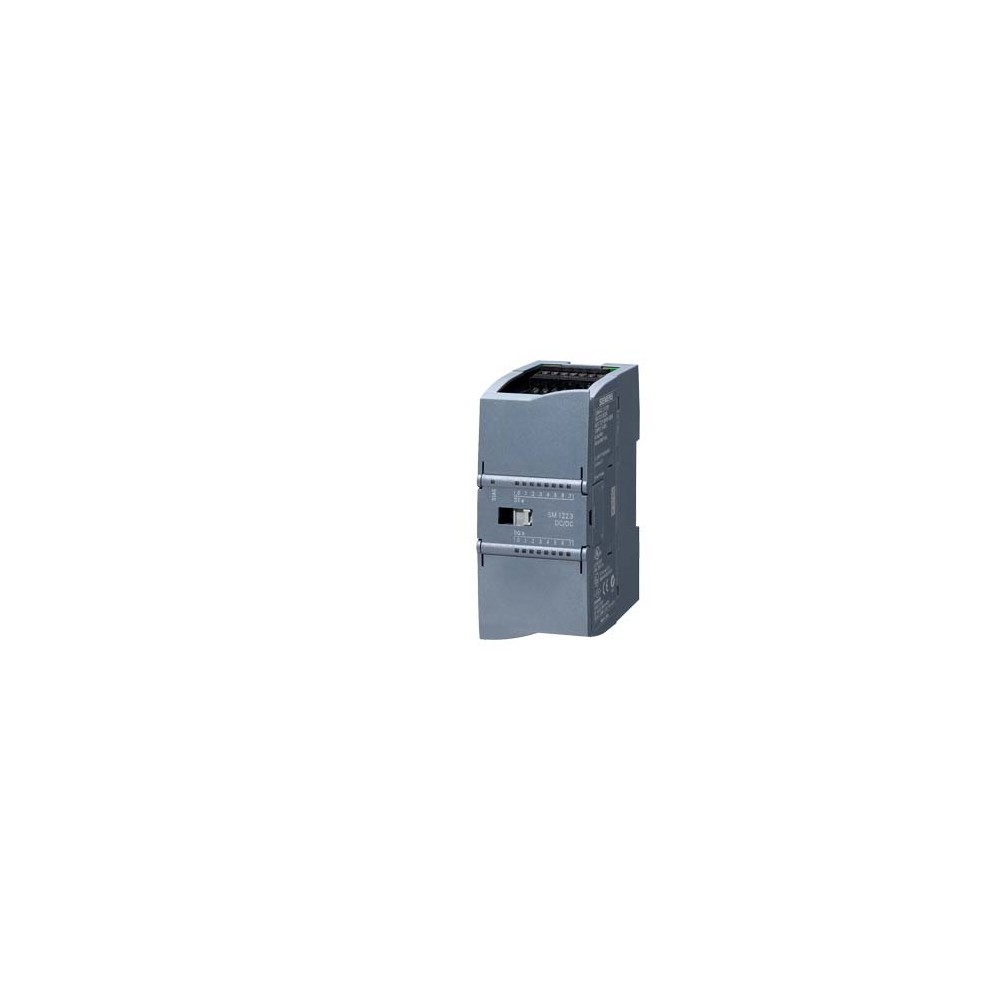

Siemens 6ES7223-1BH32-0XB0

SIMATIC S7-1200, Digital I/O SM 1223, 8 DI/8 DO, 8 DI 24 V DC, Sink/Source, 8 DO, transistor 0.5 A

General information
Product type designation		SM 1223, DI 8x24 V DC, DQ 8x24 V DC
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		145 mA
Digital inputs
● from load voltage L+ (without load), max.		4 mA; per channel
output voltage / header
supply voltage of the transmitters / header
● present		Yes
Power loss
Power loss, typ.		2.5 W
Digital inputs
Number of digital inputs		8
● in groups of		2
Input characteristic curve in accordance with IEC 61131, type 1		Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max.		8
horizontal installation
— up to 40 °C, max.		8
— up to 50 °C, max.		8
vertical installation
— up to 40 °C, max.		8
Input voltage
● Type of input voltage		DC
● Rated value (DC)		24 V
● for signal "0"		5 V DC at 1 mA
● for signal "1"		15 V DC at 2.5 mA
Input current
● for signal "0", max. (permissible quiescent current)		1 mA
● for signal "1", min.		2.5 mA
● for signal "1", typ.		4 mA
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable		Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable		Yes
Cable length
● shielded, max.		500 m
● unshielded, max.		300 m
Digital outputs
Number of digital outputs		8
● in groups of		1
Short-circuit protection		No; to be provided externally
Limitation of inductive shutdown voltage to		L+ (-48 V)
Switching capacity of the outputs
● with resistive load, max.		0.5 A
● on lamp load, max.		5 W
Output voltage
● Rated value (DC)		24 V
● for signal "0", max.		0.1 V; with 10 kOhm load
● for signal "1", min.		20 V DC
Output current
● for signal "1" rated value		0.5 A
● for signal "1" permissible range, max.		0.5 A
● for signal "0" residual current, max.		10 µA
Output delay with resistive load
● "0" to "1", max.		50 µs
● "1" to "0", max.		200 µs
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max.		4 A; Current per mass
Cable length
● shielded, max.		500 m
● unshielded, max.		150 m
Interrupts/diagnostics/status information
Alarms
● Diagnostic alarm		Yes
Diagnostics indication LED
● for status of the inputs		Yes
● for status of the outputs		Yes
Potential separation
Potential separation digital inputs
● between the channels, in groups of		2
Potential separation digital outputs
● between the channels, in groups of		1
● between the channels and backplane bus		500 V AC
Degree and class of protection
IP degree of protection		IP20
