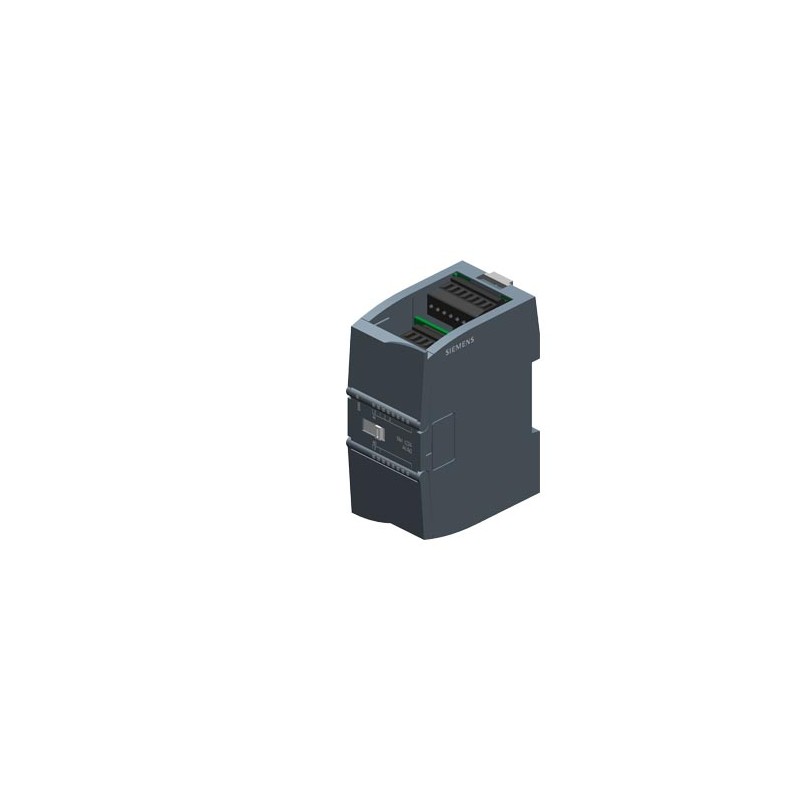

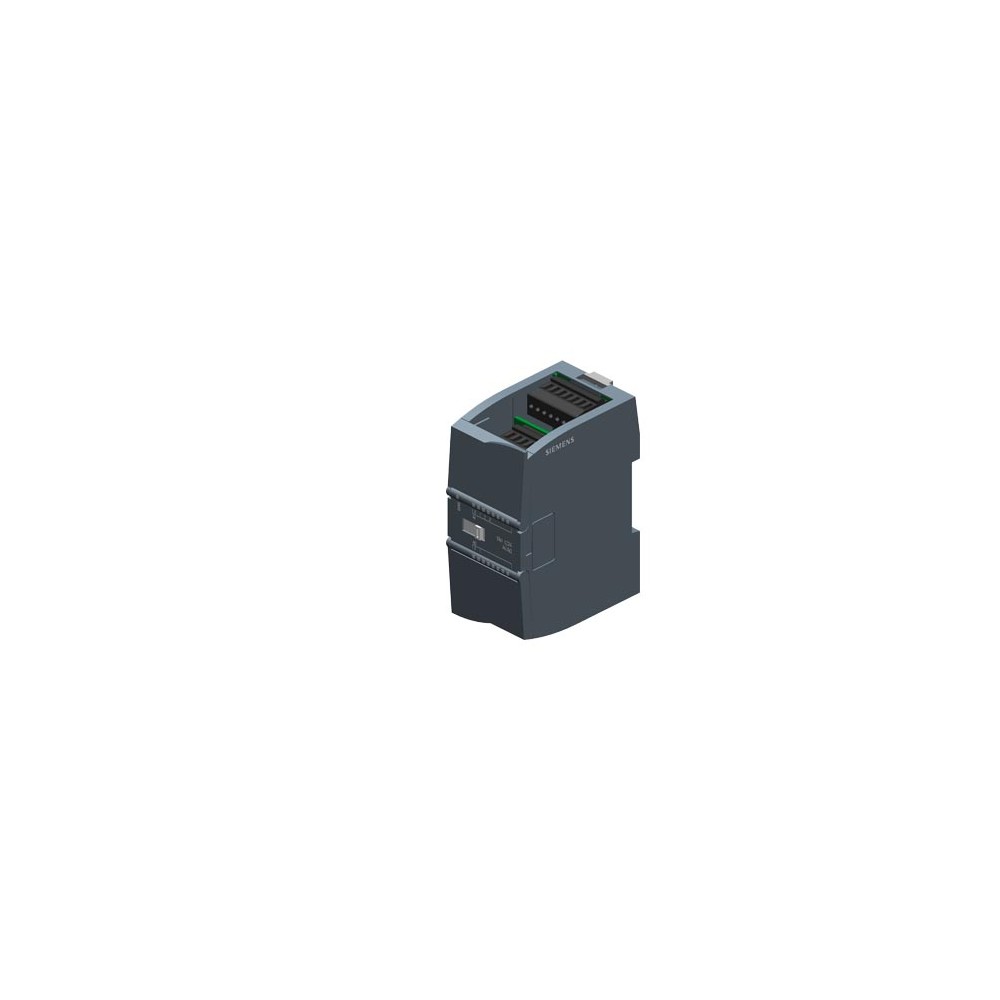

Siemens 6ES7234-4HE32-0XB0

SIMATIC S7-1200, analog I/O SM 1234, 4 AI/2 AO, +/-10 V, 14-bit resolution or 0 (4)-20mA, 13-bit resolution

General information
Product type designation SM 1234, AI 4x13 bit/AQ 2x14 bit
Supply voltage
Rated value (DC) 24 V
Input current
Current consumption, typ. 60 mA
from backplane bus 5 V DC, typ. 80 mA
Power loss
Power loss, typ. 2 W
Analog inputs
Number of analog inputs 4; Current or voltage differential inputs
permissible input voltage for voltage input (destruction limit), max. 35 V
permissible input current for current input (destruction limit), max. 40 mA
Cycle time (all channels) max. 625 µs
Input ranges
● Voltage Yes; ±10V, ±5V, ±2.5V
● Current Yes; 4 to 20 mA, 0 to 20 mA
● Thermocouple No
● Resistance thermometer No
● Resistance No
Input ranges (rated values), voltages
● -10 V to +10 V Yes
— Input resistance (-10 V to +10 V) ≥9 MOhm
● -2.5 V to +2.5 V Yes
— Input resistance (-2.5 V to +2.5 V) ≥9 MOhm
● -5 V to +5 V Yes
— Input resistance (-5 V to +5 V) ≥9 MOhm
Input ranges (rated values), currents
● 0 to 20 mA Yes
— Input resistance (0 to 20 mA) 280 Ω
● 4 mA to 20 mA Yes
Analog outputs
Number of analog outputs 2; Current or voltage
Output ranges, voltage
● -10 V to +10 V Yes
Output ranges, current
● 0 to 20 mA Yes
● 4 mA to 20 mA Yes
Load impedance (in rated range of output)
● with voltage outputs, min. 1 000 Ω
● with current outputs, max. 600 Ω
Cable length
● shielded, max. 100 m; shielded, twisted pair
Analog value generation for the inputs
Measurement principle Differential
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 12 bit; + sign
● Integration time, parameterizable Yes
● Interference voltage suppression for interference frequency f1 in Hz 40 dB, DC to 60 V for interference frequency 50 / 60 Hz
Smoothing of measured values
● parameterizable Yes
● Step: None Yes
● Step: low Yes
● Step: Medium Yes
● Step: High Yes
Analog value generation for the outputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 14 bit; Voltage: 14 bit; Current : 13 bit
Errors/accuracies
Temperature error (relative to input range), (+/-) 25 °C ±0.1%, to 55 °C ±0.2% total measurement range
Temperature error (relative to output range), (+/-) 25 °C ±0.3%, to 55 °C ±0.6% total measurement range
Basic error limit (operational limit at 25 °C)
● Voltage, relative to input range, (+/-) 0.1 %
● Current, relative to input range, (+/-) 0.1 %
● Voltage, relative to output range, (+/-) 0.3 %
● Current, relative to output range, (+/-) 0.3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● Common mode voltage, max. 12 V
Interrupts/diagnostics/status information
Alarms Yes
Diagnostics function Yes
Alarms
● Diagnostic alarm Yes
Diagnoses
● Monitoring the supply voltage Yes
● Wire-break Yes
● Short-circuit Yes
Diagnostics indication LED
● for status of the inputs Yes
● for status of the outputs Yes
● for maintenance Yes
Potential separation
Potential separation analog outputs
● between the channels and the power supply of the electronics No
Degree and class of protection
IP degree of protection IP20
