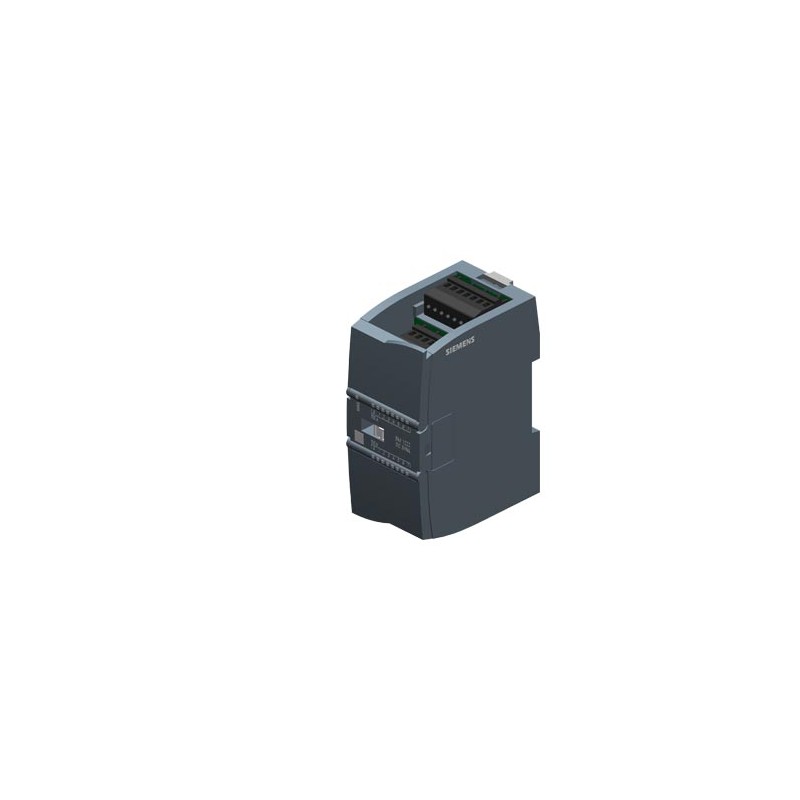

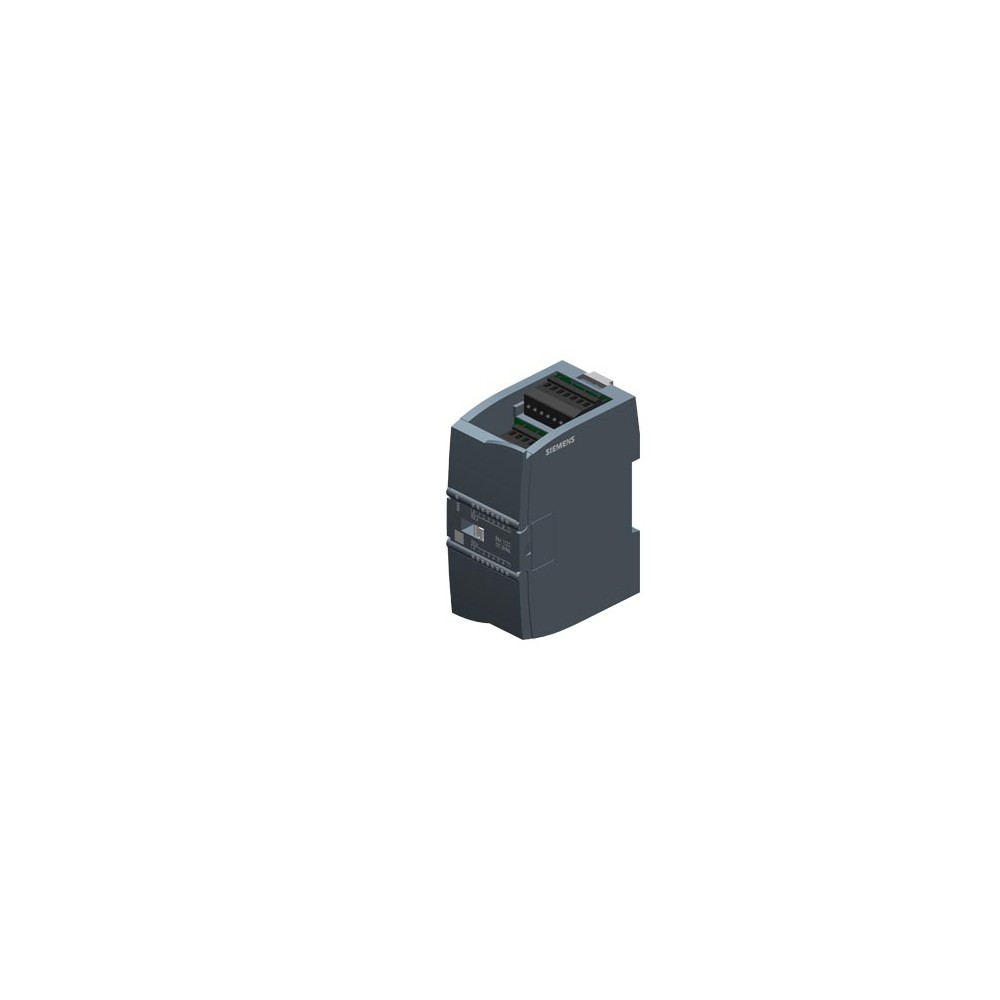

Siemens 6ES7222-1BH32-1XB0

SIMATIC S7-1200, Digital output SM 1222, 16 DO, 24 V DC, sourcing (Sinking Output), NPN transistor 0.5 A

General information
Product type designation		SM 1222, DO 16x 24 V DC/0.5 A Sink
Supply voltage
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		140 mA
Power loss
Power loss, typ.		2.5 W
Digital outputs
Number of digital outputs		16
● in groups of		1
Current-sinking		Yes
Short-circuit protection		No; to be provided externally
Limitation of inductive shutdown voltage to		Typ 45 V
Switching capacity of the outputs
● with resistive load, max.		0.5 A
● on lamp load, max.		5 W
Output voltage
● Rated value (DC)		24 V
● for signal "0", max.		L+ minus 0.75 V DC with 10k Load
● for signal "1", min.		0,5 V
Output current
● for signal "1" rated value		0.5 A
● for signal "0" residual current, max.		75 µA
Output delay with resistive load
● "0" to "1", max.		20 µs
● "1" to "0", max.		350 µs
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max.		8 A; Current per mass
Cable length
● shielded, max.		500 m
● unshielded, max.		150 m
Interrupts/diagnostics/status information
Alarms
● Diagnostic alarm		Yes
Diagnostics indication LED
● for status of the outputs		Yes
Potential separation
Potential separation digital outputs
● between the channels, in groups of		1
● between the channels and backplane bus		500 V AC
Degree and class of protection
IP degree of protection		IP20
