6AV6646-1BA16-0NA1

Condition: New product

More info

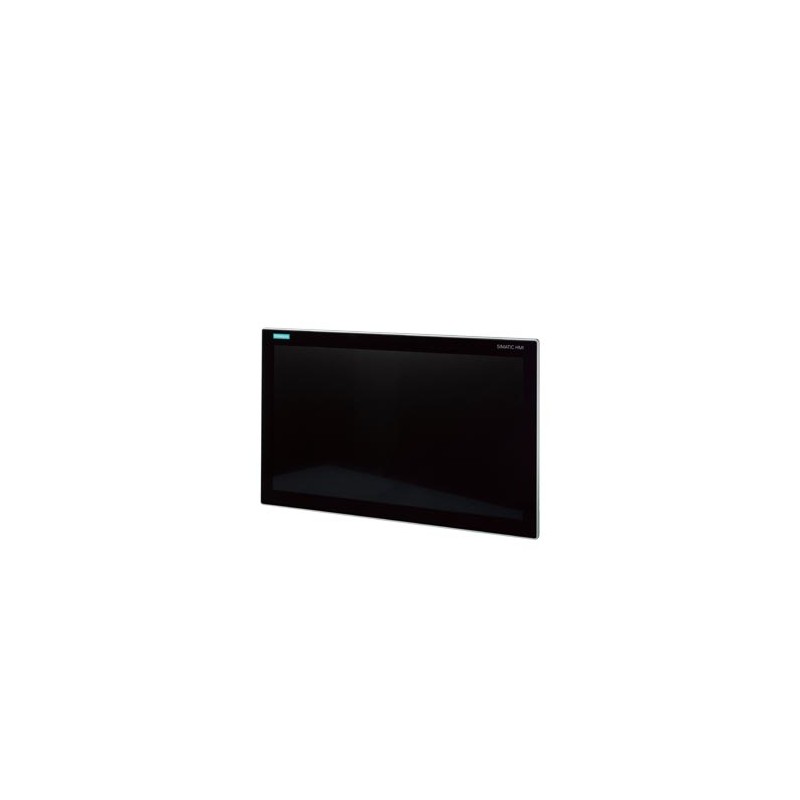

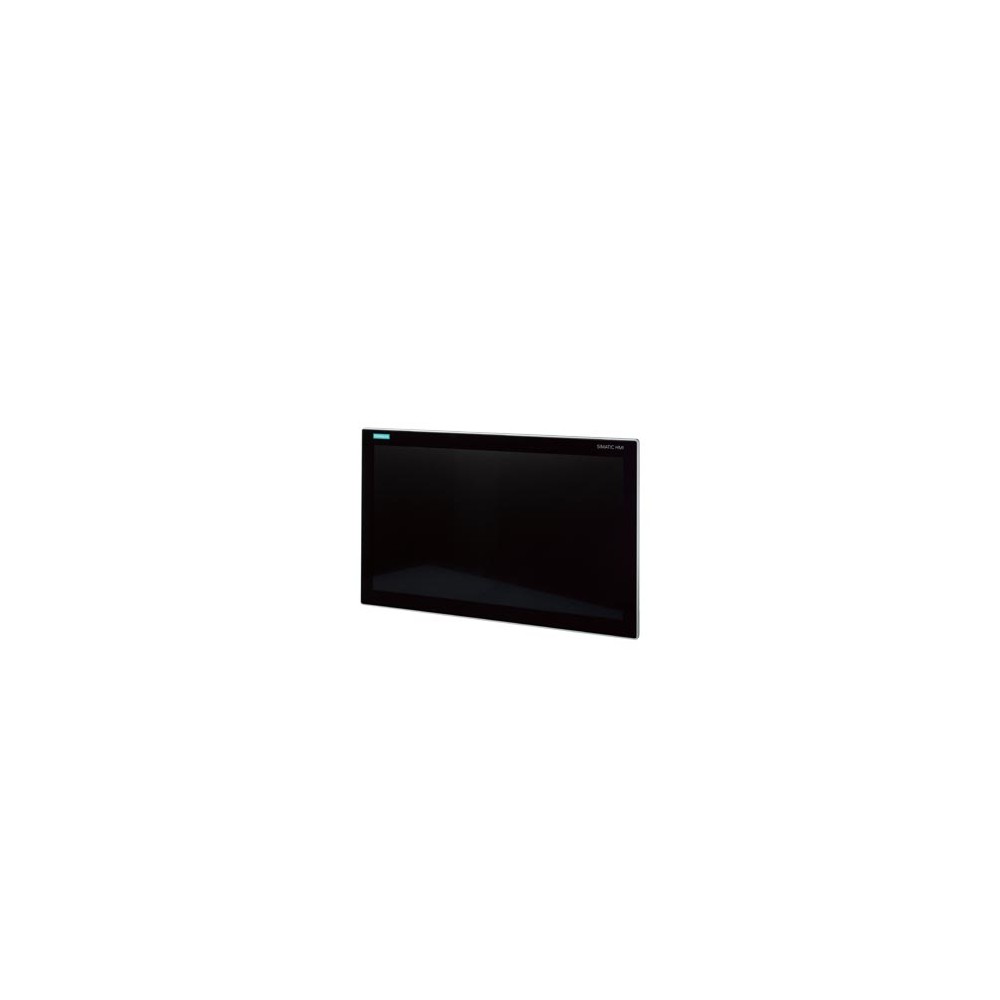

Siemens 6AV6646-1BA16-0NA1

SIMATIC ITC1500 V3, industrial thin client, 15" widescreen TFT display, FullHD, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer HTML5 and others, neutral design, built-in unit

General information
Product type designation		ITC1500 V3
Display
Design of display		TFT
Screen diagonal		15.6 in
Display width		344.2 mm
Display height		193.5 mm
Number of colors		16 777 216
Resolution (pixels)
● Horizontal image resolution		1 920 pixel
● Vertical image resolution		1 080 pixel
General features
● non-reflective and tempered mineral glass screen		Yes
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h
● Backlight dimmable		Yes; LED, dimmable
Control elements
Touch operation
● Design as multi-touch screen		Yes; Projective-capacitive
● Monitor keyboard		Yes
Installation type/mounting
Design		Built-in unit
Front mounting		Yes
Built-in unit		Yes
maximum permitted forward tilt angle from vertical		35°
maximum permitted backward tilt angle from vertical		35°
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		1.8 A
Current consumption, max.		2.2 A
Starting current inrush I²t		0.5 A²·s
Power
Active power input, typ.		43.2 W
