New

6AV6646-1BA12-0AA1

Condition: New product

More info

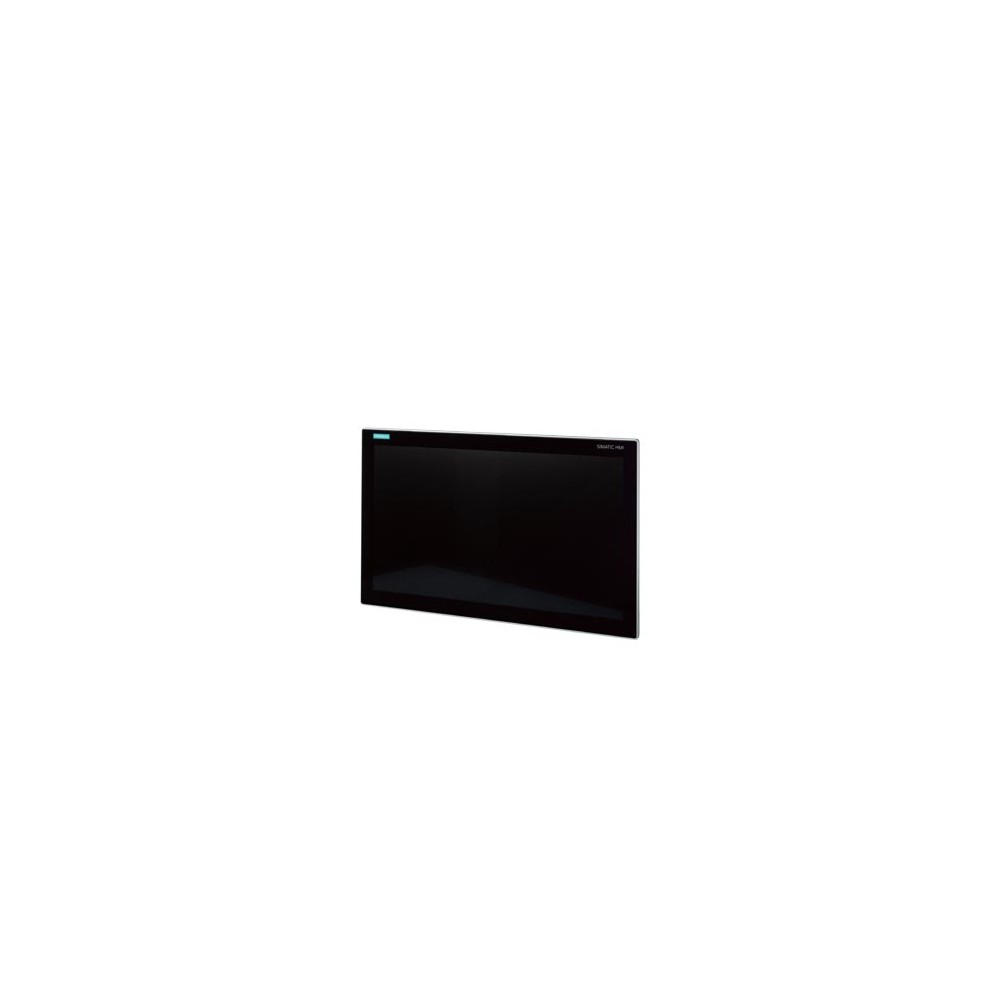

Siemens 6AV6646-1BA12-0AA1

SIMATIC ITC1200 V3, industrial thin client, 12" widescreen TFT display, capacitive touch sensor, supported protocols: RDP, VNC, SmartServer HTML5 and others, standard design, built-in unit

General information
Product type designation		ITC1200 V3
Display
Design of display		TFT widescreen display, LED backlighting
Screen diagonal		12.1 in
Display width		261 mm
Display height		163 mm
Number of colors		16 777 216
Resolution (pixels)
● Horizontal image resolution		1 280 pixel
● Vertical image resolution		800 pixel
General features
● non-reflective and tempered mineral glass screen		Yes
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h; At 25°C
● Backlight dimmable		Yes; LED, dimmable
Control elements
Touch operation
● Design as multi-touch screen		Yes; Projective-capacitive
● Monitor keyboard		Yes
Installation type/mounting
Design		Built-in unit
Front mounting		Yes
Built-in unit		Yes
maximum permitted forward tilt angle from vertical		35°
maximum permitted backward tilt angle from vertical		35°
Supply voltage
Type of supply voltage		24 V DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		1.3 A
Current consumption, max.		1.6 A
Starting current inrush I²t		0.5 A²·s
Power
Active power input, typ.		31.2 W
